Electrocardiogram/Respiration (ECG/Resp) Measurement
24
Introduction to the Instrument
ECG/Resp Features

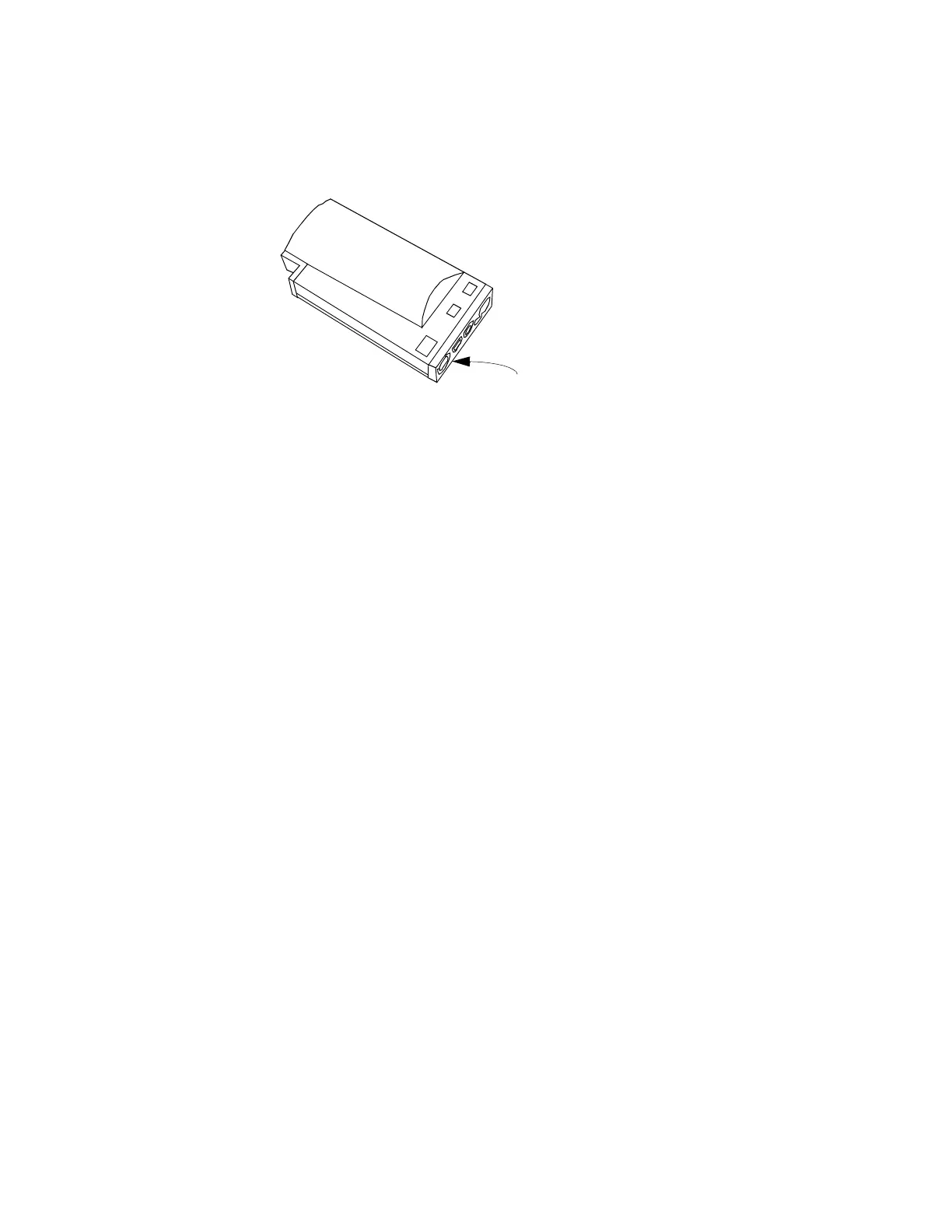

This illustration shows the user controls and connectors for the ECG/Resp.
Features of the ECG/Resp measurements are described in the following paragraphs.
ECG Modes
The QRS complexes are detected automatically.
In non-paced mode, no pace pulses are expected and no pace pulse rejection occurs. In paced
mode, pace pulses of channel 1 and 2 are annotated with a small dash on the screen.
Resp Modes
In auto mode, the Monitor measures respiration and adjusts the detection level automatically.
In manual mode, the user sets the detection level for measuring respiration.
This standard 12-pin
connector will accept
ECG cable.
either a 3-lead or a 5-lead
