Connecting the Measurement Server...
72
Installin
g
the Instrument
c.Turn the latch guard to lie perpendicular across the edge of the latch.

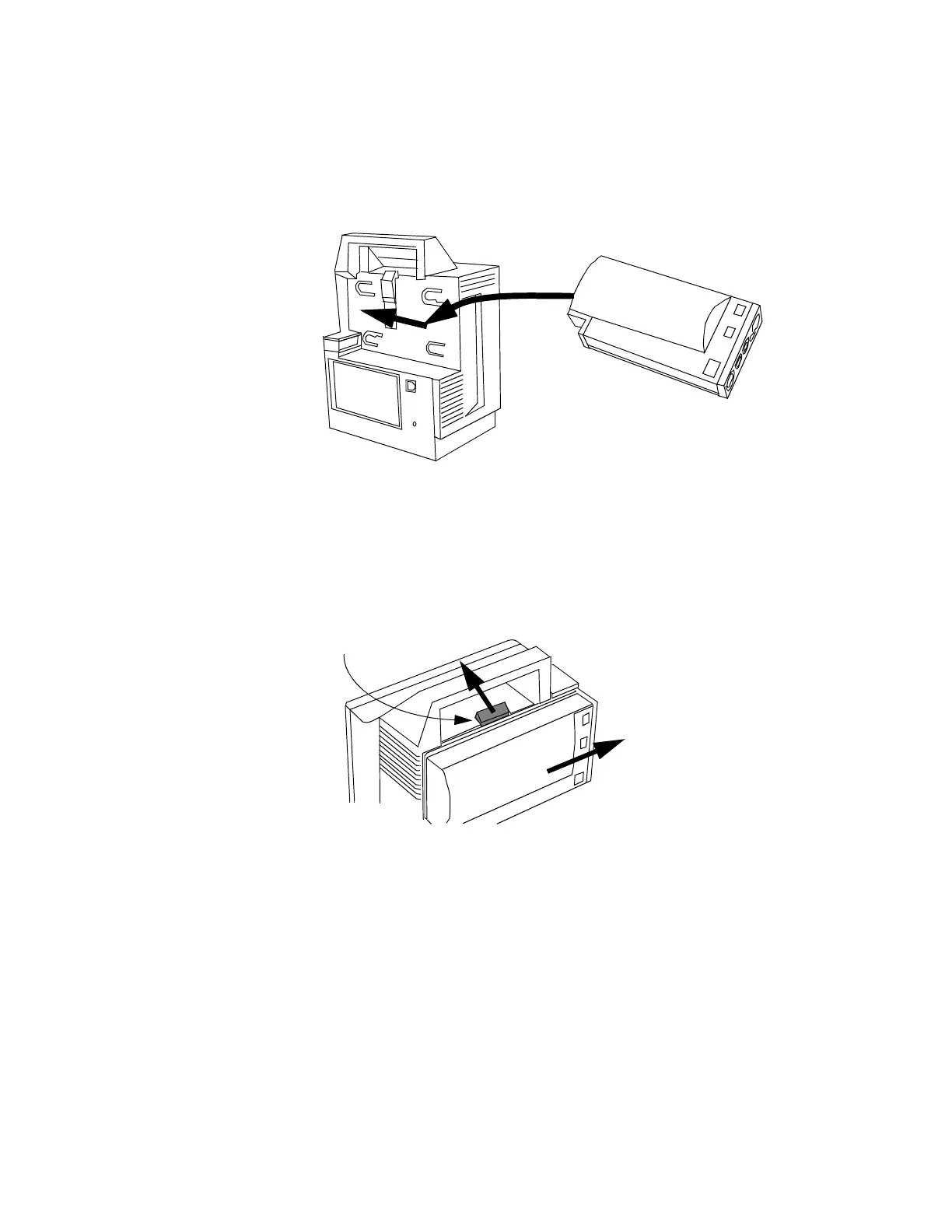

Step 2 Place the Measurement Server on the back of the Monitor.
If it is not tight against the back of the Monitor, slip it away from the link bar until it
is.
Step 3 Slip the Measurement Server forward until it clicks into place.
To remove the Measurement Server from the Monitor, move the latch (in the middle
at the top of the Monitor) toward the front of the Monitor, and slide the
Measurement Server away from the link bar:
Latch
