DA80F/DA95F AddressRight™ Printers Service Manual (SV61962 Rev. A)
D-3
Print Head Alignment • Appendix D
Print Head
Alignment
Procedure
Head 1
Head 2
Head 3
1 2 3 4 5 6 7 8 9
1 2 3 4 5 6 7 8 9
ABCDE F GH I J K L MNO
Head 1
Head 2
Head 3
1 2 3 4 5 6 7 8 9
1 2 3 4 5 6 7 8 9
ABCDE F GHI J K L MNO
Head 1
Head 2
Head 3
1 2 3 4 5 6 7 8 9
1 2 3 4 5 6 7 8 9
ABCDE F GH I J K L MNO

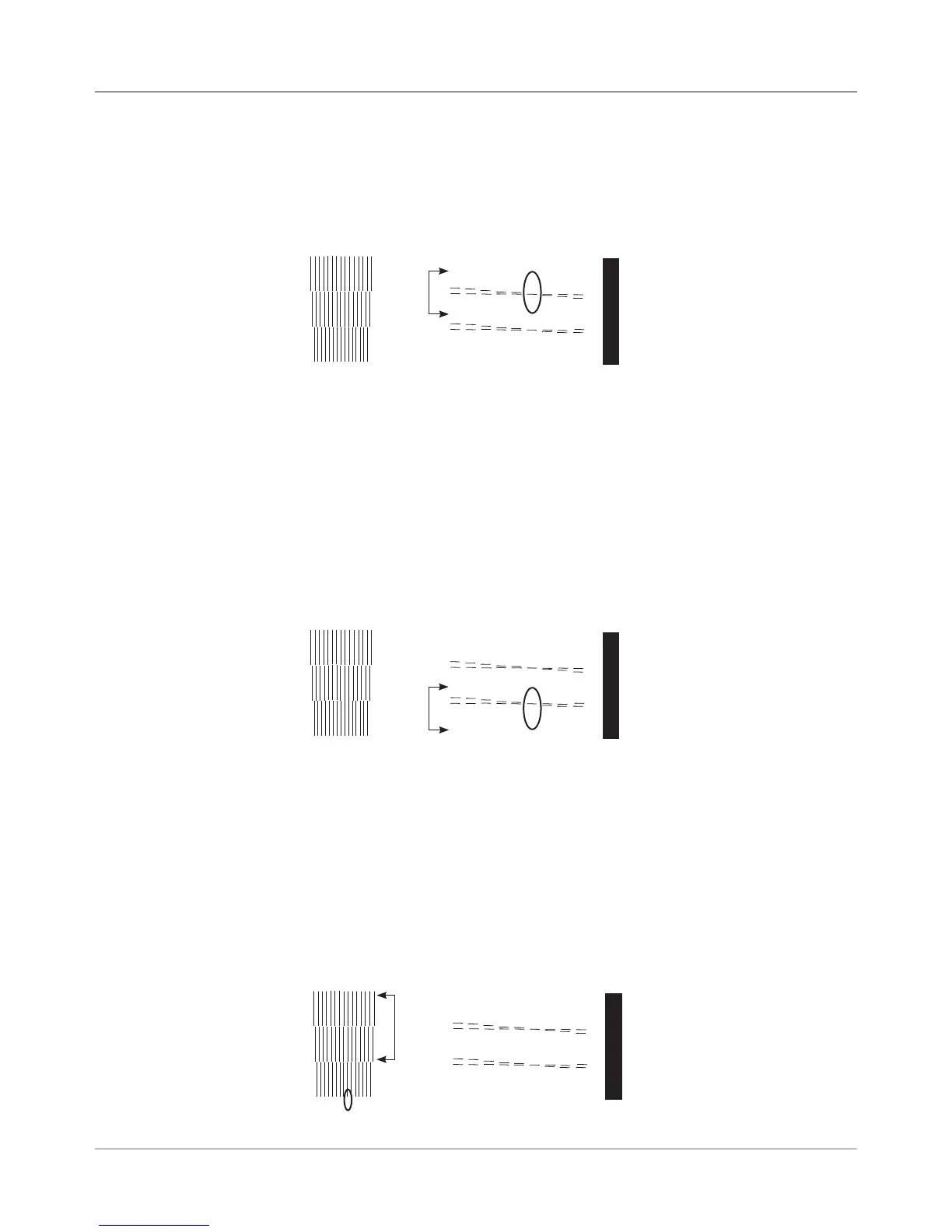

8. Use the plus (+) and minus (-) keys to select the numeric value below
the two groups of horizontal lines that represent print heads 1 and 2.
Select the pair of horizontal lines which most closely form a straight line.
In the example below, the selected value would be "6".
13. When you have scrolled to the appropriate value, press Enter to save the
value.
14. Press Menu to go back to the previous screen. Use the plus (+) key
to scroll down to the next adjustment. PRINT HEAD ADJUST screen
displays.
15. Press Enter. The HORIZ ADJ: HDS 1 - 2 screen displays.
16. Use the plus (+) and minus (-) keys to select the letter value below the
two groups of vertical lines that represent print heads 1 and 2. Select the
pair of vertical lines which most closely form a straight line. In the sample
below, the letter value entered would be "i".
9. When you have scrolled to the appropriate value, press Enter to save the
value.
10. Press Menu to go back to the previous screen. Use the plus (+) key
to scroll down to the next adjustment. PRINT HEAD ADJUST screen
displays.
11. Press Enter. The VERTICAL ADJUST 2 - 3 screen displays.
12. Use the plus (+) and minus (-) keys to select the numeric value below
the two groups of horizontal lines that represent print heads 2 and 3.
Select the pair of horizontal lines which most closely form a straight line.
In the example below, the selected value would be "6".
