5-24 DA80F/DA95F AddressRight™ Printers Service Manual (SV61962 Rev. A)
5 • Removal and Replacement
DA80F (WF81) Parts Removal

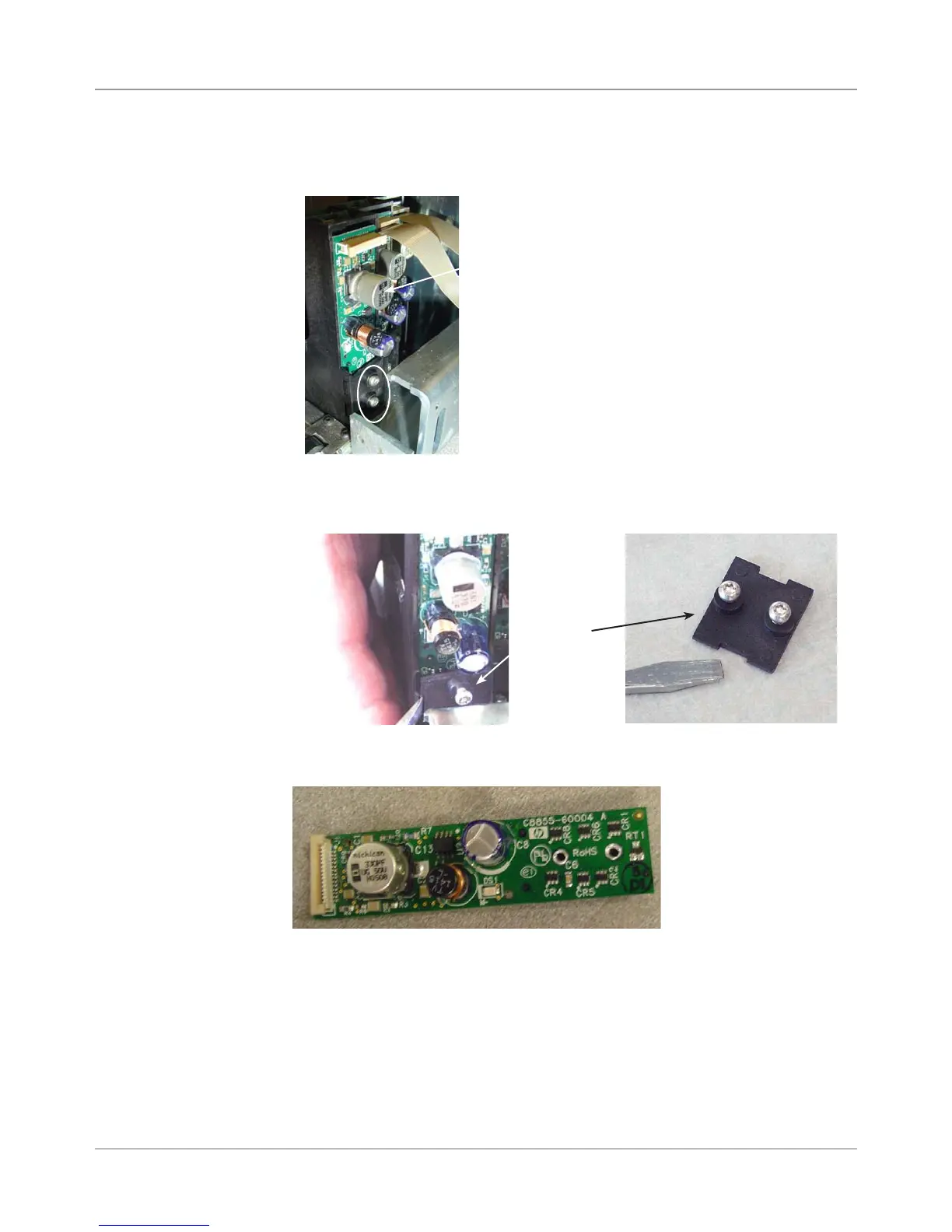

11. Loosen the two star screws on the print head board about four turns (but
do not remove).
Print Head Board
(aka “Newport board”)
Star Screws
(Circled)
12. Insert a screwdriver between the retainer plate and print head stall and
gently pry the retainer plate outwards.
13. Remove print head (Newport) board.
Print Head Board
5.15 Print
Head Cables
and Boards
(continued)
Retainer
Plate
To Next Page
