4.7.4 ATM Loopbacks
This option allows you to modify the ATM F4/F5 entries or send the diagnostic entry.
From the Maintenance menu, click on ATM Loopbacks. The following page is displayed:

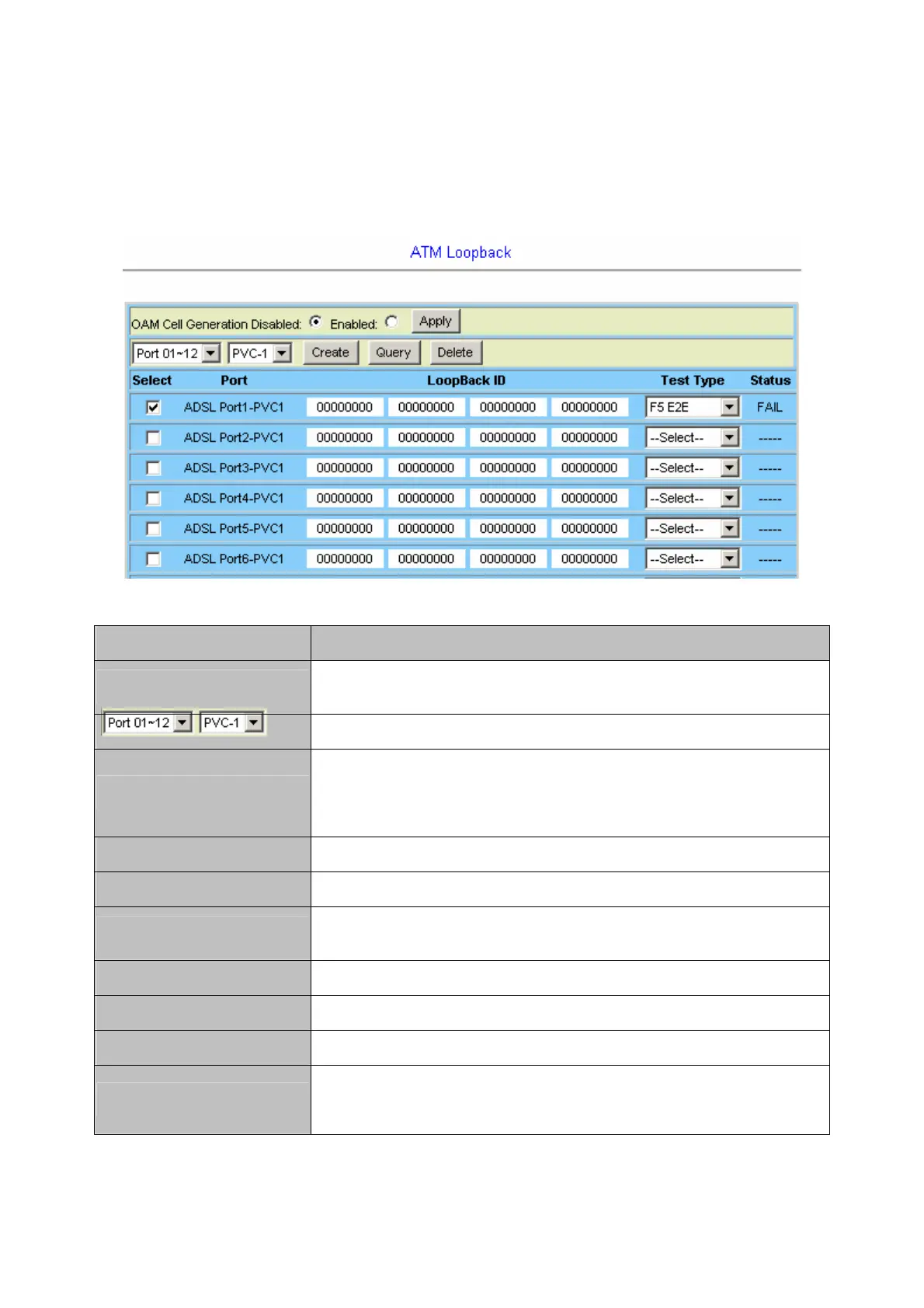

ATM Loopbacks Setup
Label Description
OAM Cell Generation
Click on the radio button to Disable/Enable OAM Cell Generation. Then
click on Apply button to submit the setting.
Click on the drop-down lists to select port range and PVC (1 ~ 8).
Create
Click on this button to create a loopback setting.
Note: make sure the interface has been setup and the service state of the
circuit is turned on.
Query Click on this button to query the loopback status.
Delete Click on this button to delete a loopback entry.
Select
Click on the checkbox to select the PVC you want to create or delete the
loopback setting for.
Port This field shows the line port and PVC number.
LoopBack ID Type in a loopback ID (32 digit).
Test Type Select the loopback type: F5 E2E or F5 Segment.
Status
This field shows current loopback testing status. Possible values are:
Fail, Success, In Progress, or ----.
- 183 -
