4.1.3 Ethernet Port Service
This option allows you to set the administration state and select the speed mode for the
Gigabit Ethernet ports. From the System menu, click on Ethernet Port Service. The
following page is displayed:

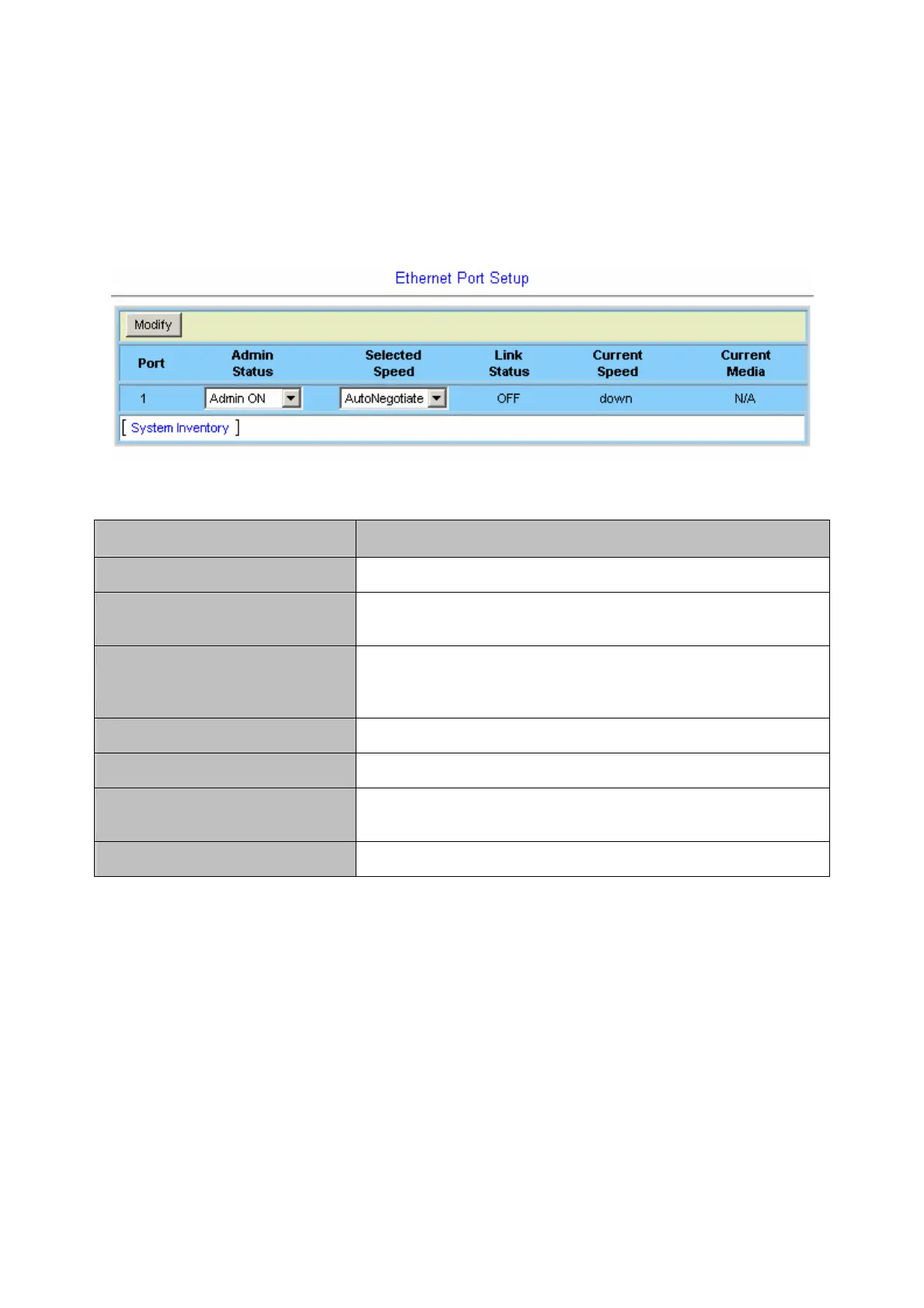

Ethernet Port Service Setup
Label
Description
Port This field shows port number of the Gigabit Ethernet interface.
Admin Status
Click on the drop-down list and select the administrative state
(ON/OFF) to enable/disable the GBE port.
Selected Speed
Click on the drop-down list and select the speed mode for trunk
GBE port. Supported options are: AutoNegotiate, 100Mbps Half
(duplex), 100Mbps Full (duplex).
Link Status Show operational status of the trunk ports (ON/OFF).
Current Speed Show current speed mode of the trunk ports.
Current Media
Show current uplink transmission medium (via copper or SFP). This
field will show N/A when Oper Status is OFF.
Modify Click on this button to submit the modification.
