4.3.2 VLAN Configuration
4.3.2.1 Static VLAN
This option allows you to configure the static VLAN table. From the Bridge menu, click on

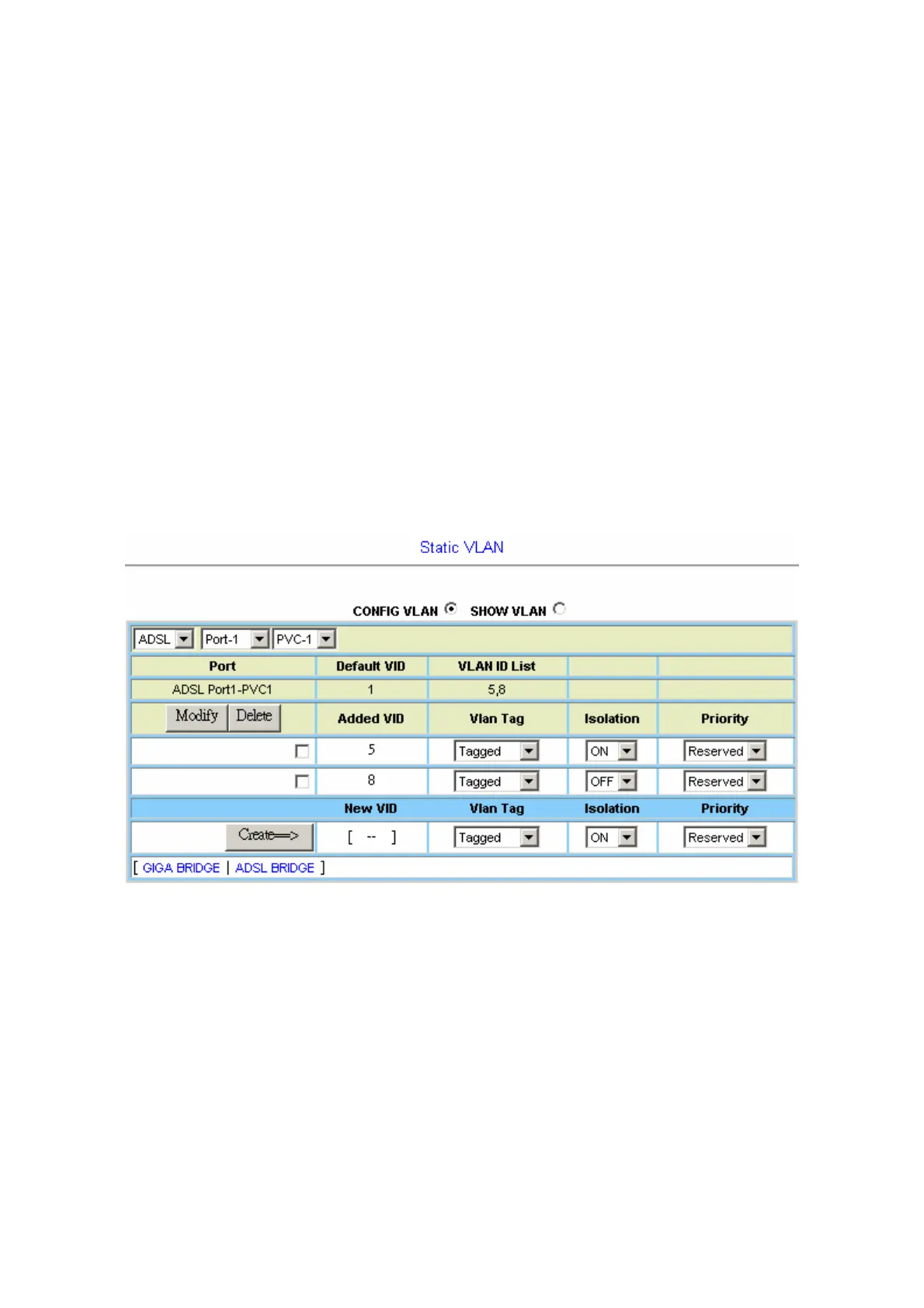

VLAN Configuration and then Static VLAN. The following page is displayed. Click on the
radio button to select CONFIG VLAN to configure static VLAN for the bridge ports or
SHOW VLAN to display the VLAN table.
CONFIG VLAN
Click on the drop-down list to select ADSL or GIGA port, and then select a port and PVC if
ADSL is selected. Once you have selected the bridge interface, its current static VLAN
setting is displayed. To add a new VLAN member, type in VID for the New VID field and
then select Tagged/UnTagged for VLAN Tag, ON/OFF for Isolation, and VLAN priority
level (specify a number or reserve the original value) for Priority. At last click on
Create==> button. To modify or delete a VLAN, select the checkboxes of the entries you
want to modify or delete and then click on Modify or Delete button.
- 92 -
