4.3.2.4 Static Allowed IP
This option allows you to configure the Static Allowed IP table. From the Bridge menu,

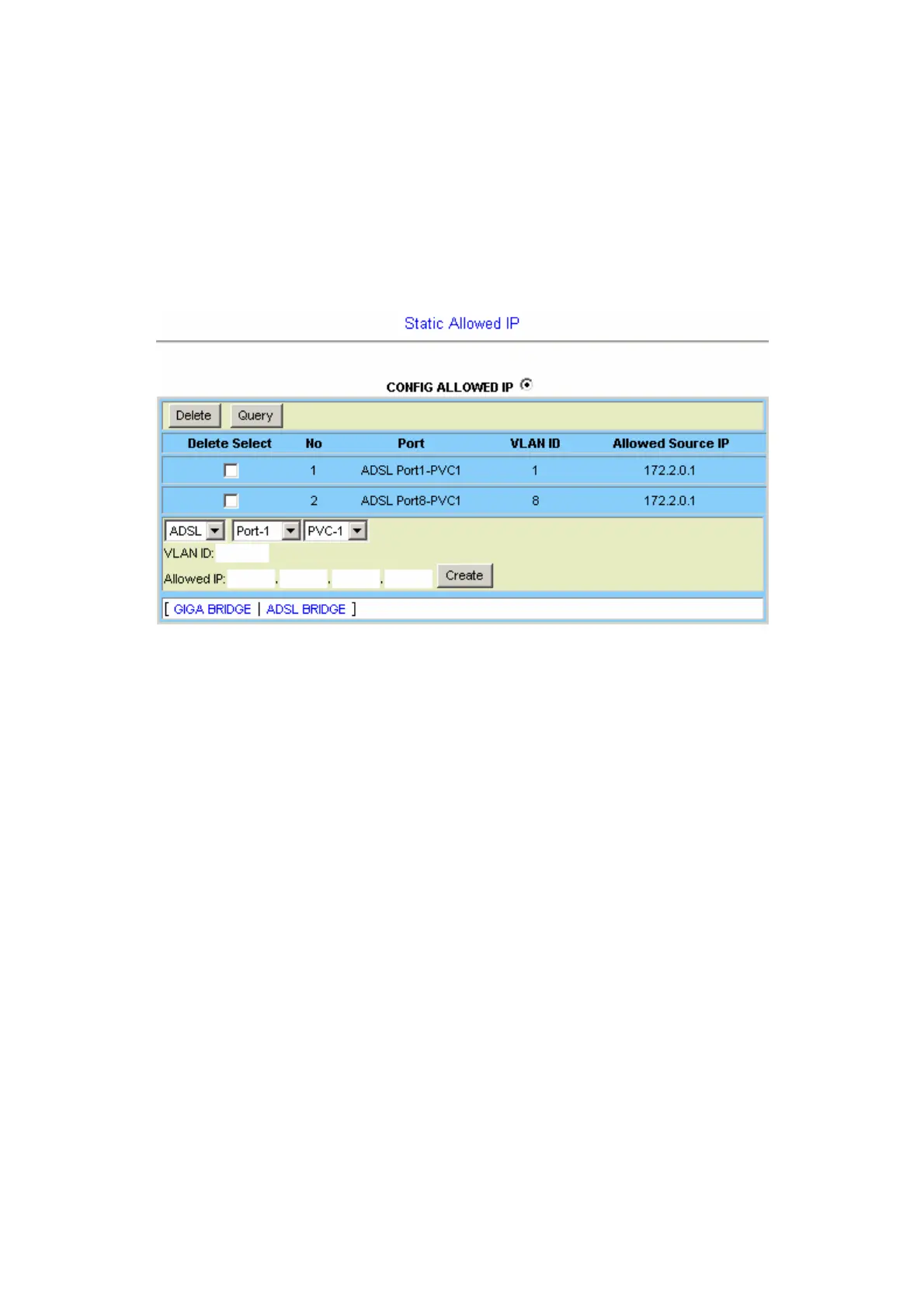

click on VLAN Configuration and then Static Allowed IP. The following page is displayed.
To make bridge port work according to this Static Allowed IP table, the IP allowed function
must be enabled (refer to section 4.3.1).
Click on the drop-down lists to select ADSL port and PVC number, then type in VID and
allowed source IP that can pass through the VLAN.
- 98 -
