Planmeca intra Installation Manual

INSTALLATION POSSIBILITIES
6 Planmeca Intra X-ray unit Installation manual

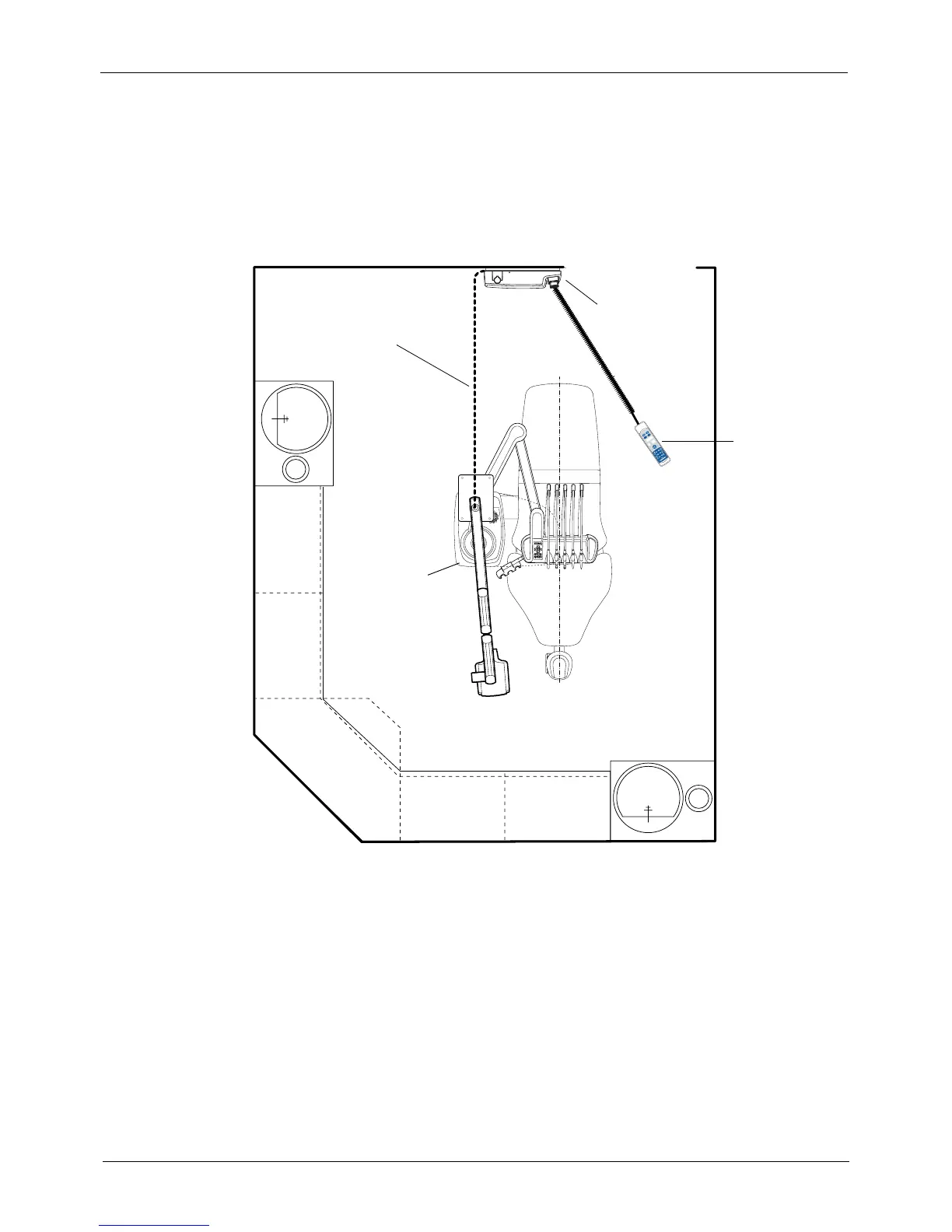

Ceiling mounting in treatment room (see section 5.1 “Ceiling installation” on
page 25)
NOTE The extension arm 535mm (21.1 in.) is recommended for the ceiling instal-
lation. Also the short extension arm can be used, but the long extension
arm is not recommended.
NOTE Both the Delight S and Delight operating light for unit mounting can be
installed to the ceiling arm using an additional arm.
S
C
D
A
B
&&
&
&
READY
PRET
m
A
kV
s
B
W
S
E
L
E
C
T
M
O
D
E
IR3.eps
Dental unit
Generator
Control panel
Extension cable,
max. 12 m
box

Planmeca intra Specifications

General

Manufacturer	Planmeca
Model	Planmeca Intra
Frequency	50/60 Hz
Tube Voltage	60-70 kV
Tube Current	7 mA
Type	Dental X-ray Unit
Voltage	100-240 V
Weight	Varies depending on configuration; refer to specific model documentation
