INSTALLATION POSSIBILITIES
10 Planmeca Intra X-ray unit Installation manual

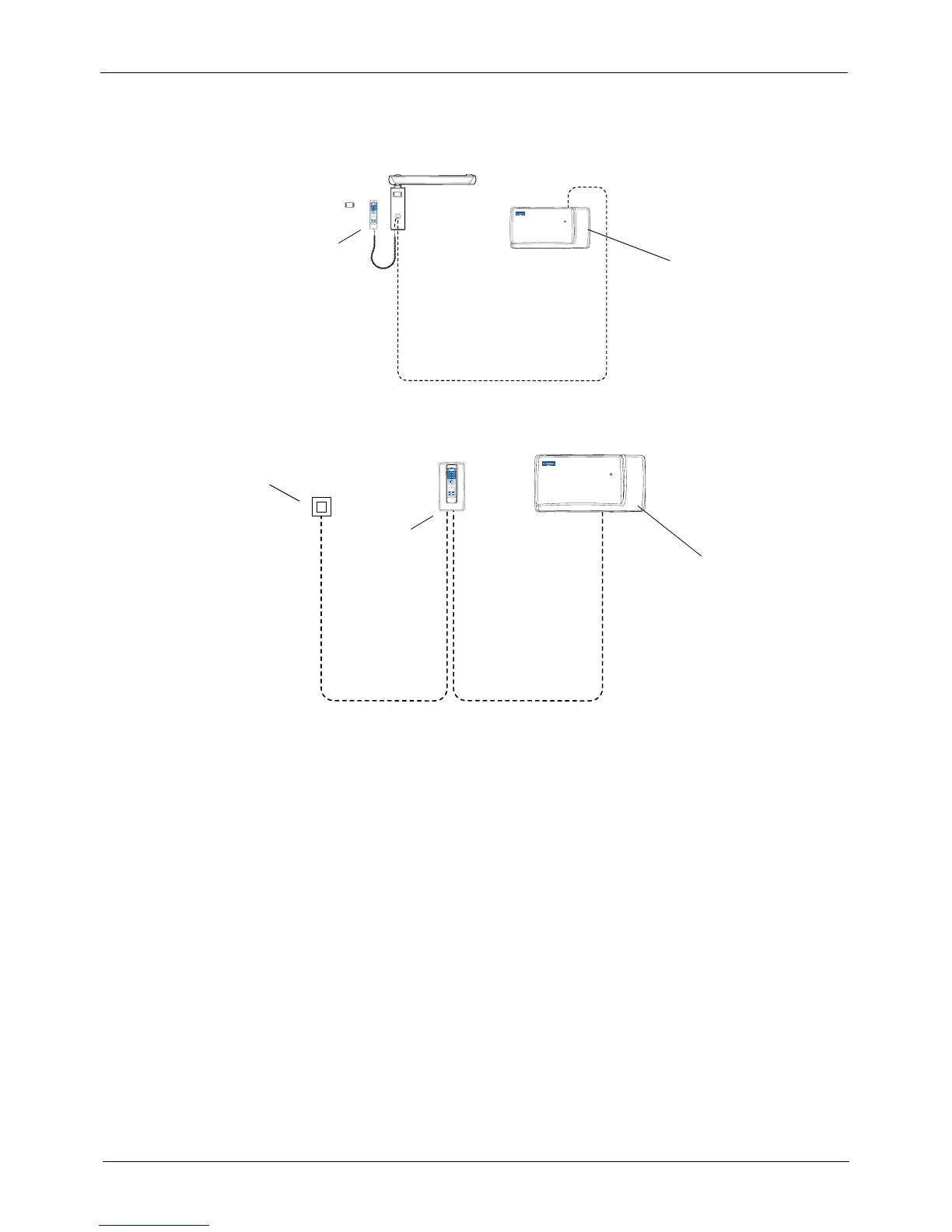

Single stud assembly plate with control panel (see section 5.3 “Single stud
installation” on page 38)
Fixed control panel (contains a possibility to make “double exposure button”
assembly) (see section 8 “FIXED CONTROL PANEL INSTALLATION” on page 51)
I_front_4.eps
READY
PRET
mA
kV
s
BW
SELECT
MODE
Generator box
Control panel
Extension cable
I_front_5.eps
READY
PRET
mA
kV
s
BW
SELECT
MODE
Telephone cable
Generator box
Fixed control
Double exposure button
panel

Planmeca intra Specifications

General

Manufacturer	Planmeca
Model	Planmeca Intra
Frequency	50/60 Hz
Tube Voltage	60-70 kV
Tube Current	7 mA
Type	Dental X-ray Unit
Voltage	100-240 V
Weight	Varies depending on configuration; refer to specific model documentation
