Planmeca intra Installation Manual

Planmeca Intra X-ray unit 23
STANDARD INSTALLATION TO A WALL
Installation manual
4.8 Mounting the generator housing

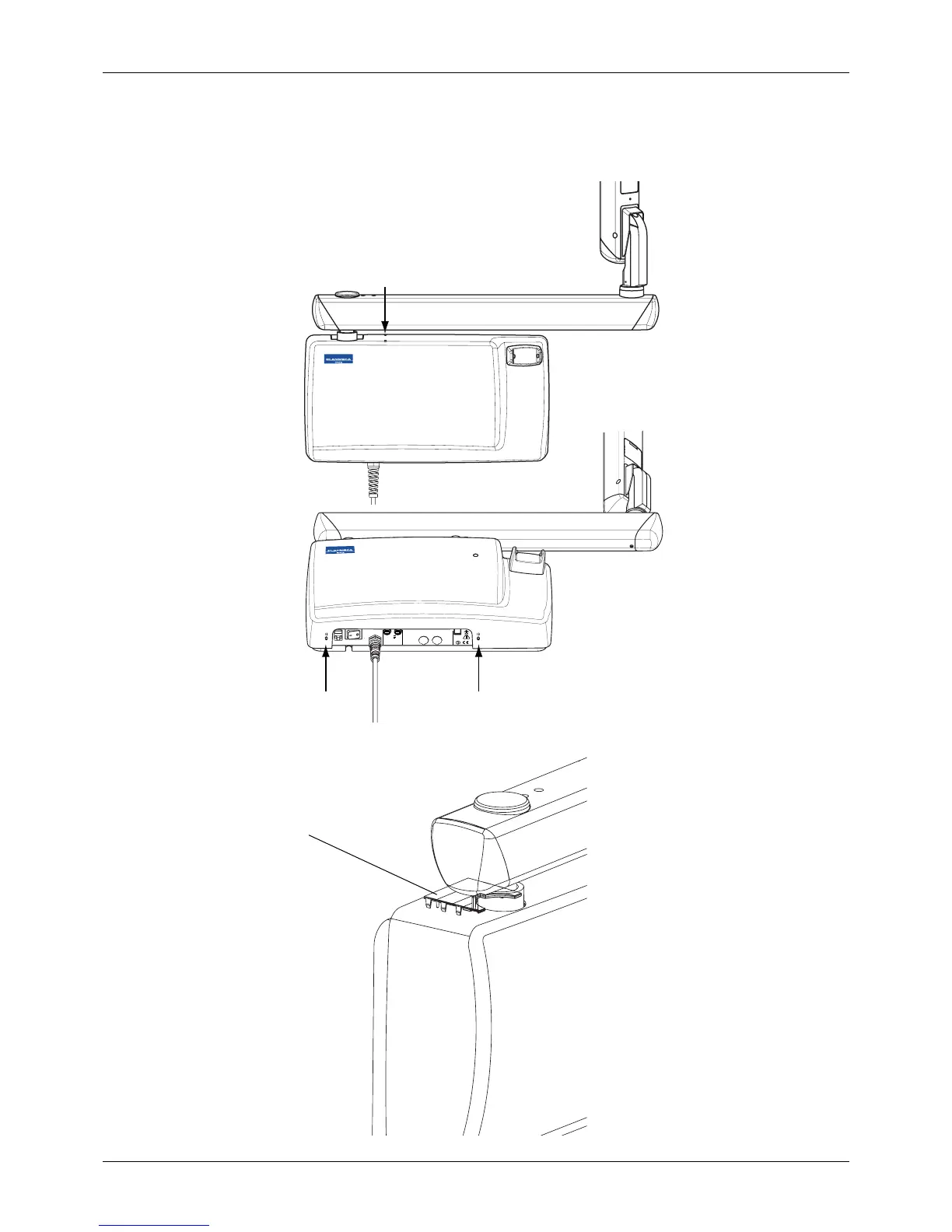

Place the generator housing over the generator assembly. Secure the cover into position with the
three M4x6 ULS screws.
Attach the generator housing cover plate to its position.
Complies with
DHHS radiation
performance
standards
21 CFR
Subchapter J.
220V - 240 V AT
AT
8
100V - 115 V 15
70kV maximum 1800 mAs/h
Total filtration: 2,0 mm EquAl
WARNING:
For continued protection
against risk of fire replace
only with same type and
rating of fuse.
Manufactured by:
Planmeca OY
00880 HELSINKI
FINLAND
LBL-Z-006D
1000VA 50/60Hz
0537
I_7A.eps
e
ps
Generator housing cover plate

Planmeca intra Specifications

General

Manufacturer	Planmeca
Model	Planmeca Intra
Frequency	50/60 Hz
Tube Voltage	60-70 kV
Tube Current	7 mA
Type	Dental X-ray Unit
Voltage	100-240 V
Weight	Varies depending on configuration; refer to specific model documentation
