OTHER INSTALLATION ALTERNATIVES
26 Planmeca Intra X-ray unit Installation manual

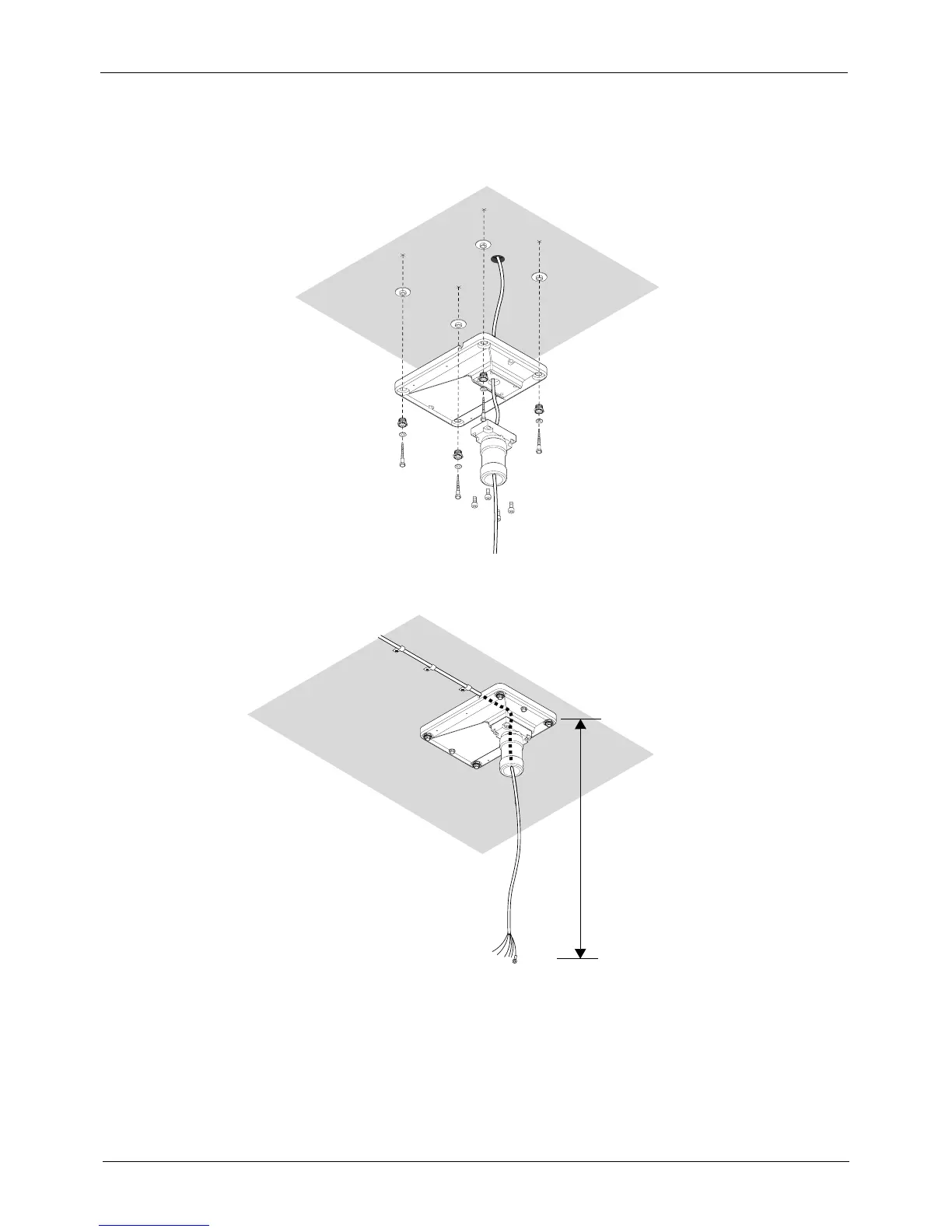

Wooden ceiling
Attach the adapter plate to the ceiling with four ø8x80 DIN 571 lag screws. Do not use the expan-
sion anchors with wooden ceiling. Use the adjustment nuts and the adjustment plates with the
screws at each corner of the adapter plate.
NOTE If the concealed wiring is not used, the extension cable must be lead so
that there is at least 1.2 m cable after adapter plate.
min. 1.2 m

Planmeca intra Specifications

General

Manufacturer	Planmeca
Model	Planmeca Intra
Frequency	50/60 Hz
Tube Voltage	60-70 kV
Tube Current	7 mA
Type	Dental X-ray Unit
Voltage	100-240 V
Weight	Varies depending on configuration; refer to specific model documentation
