FINAL ADJUSTMENTS
58 Planmeca Intra X-ray unit
Installation manual
11 FINAL ADJUSTMENTS
11.1Adjusting the balance of the arm
Adjust the balance of the arm by turning the adjustment nuts with a screwdriver. The adjustment
nuts are located inside the bracket arm and can be reached through the openings at the under-side
of the bracket arm.

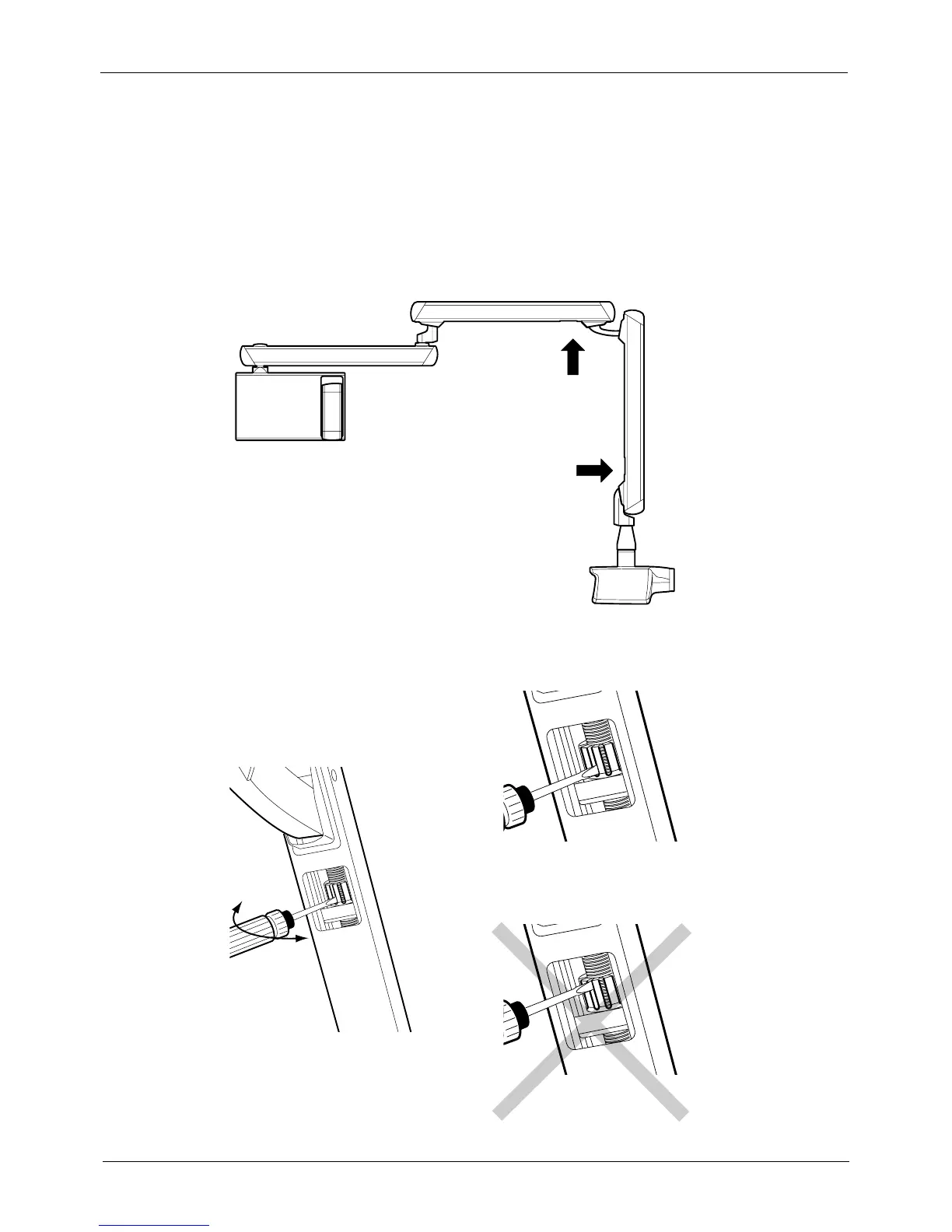

Arm in adjustment position
Openings for
adjustments
NOTE Adjust the arm from
the lower part of the
adjustment nut.
CORRECT
WRONG
