Planmeca Intra X-ray unit 43
OTHER INSTALLATION ALTERNATIVES
Installation manual
Connect the exposure warning indicator light cable to the connector P4 on the Extension cable PCB
and attach the cover part earthing cable to the connector on the cover. Attach the cover to position
with one attachment screw and slide and the upper cover plate to its position.
5.4 Installation to the Planmeca Compact dental unit
Install the Planmeca Intra X-ray unit to the Planmeca Compact dental unit according to the instruc-
tions given in dental unit installation manual, publication number 10006961.

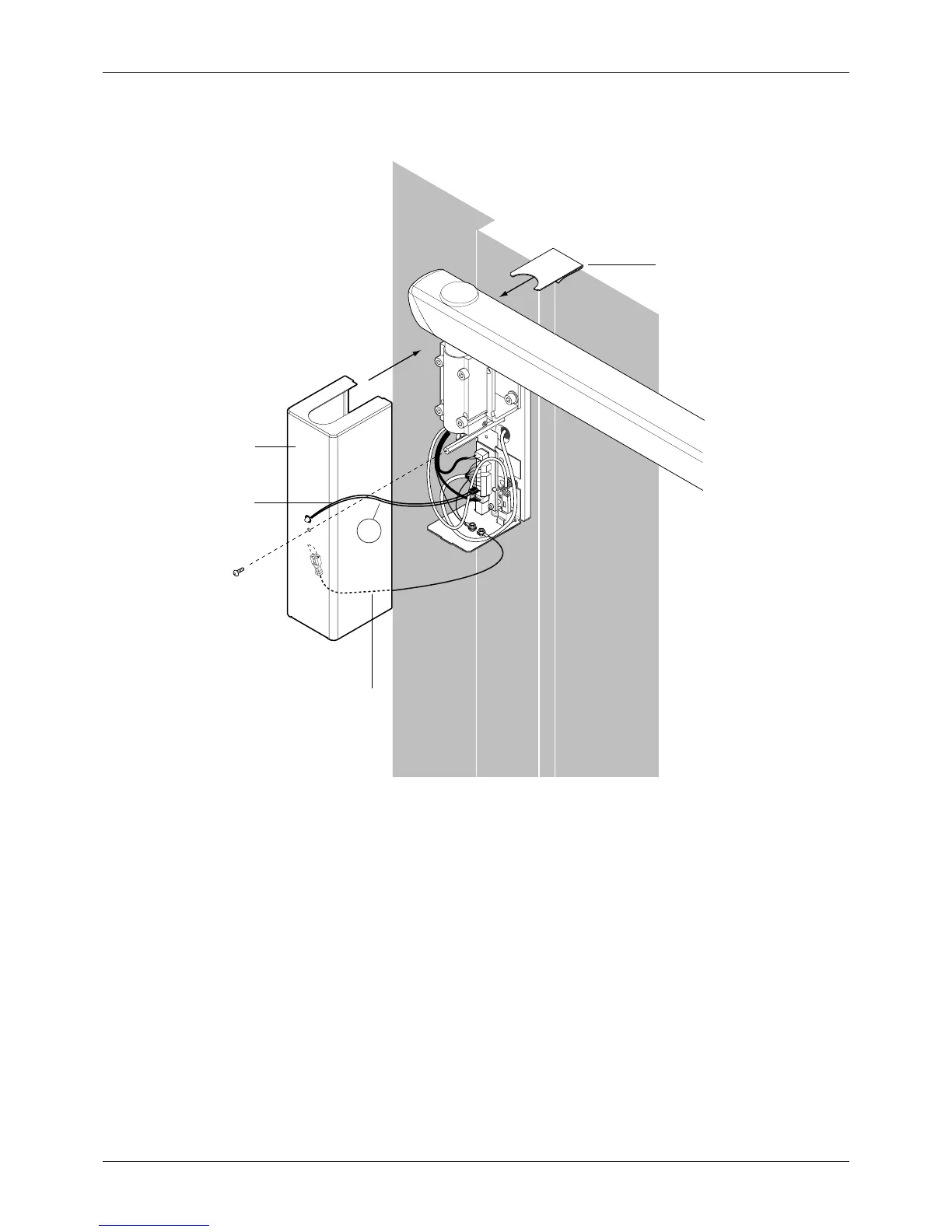

I_12A.eps
P4
Upper cover plate
Cover
Exposure warning
Earthing cable
indicator light cable
