Planmeca intra Installation Manual

Planmeca Intra X-ray unit 5
INSTALLATION POSSIBILITIES
Installation manual

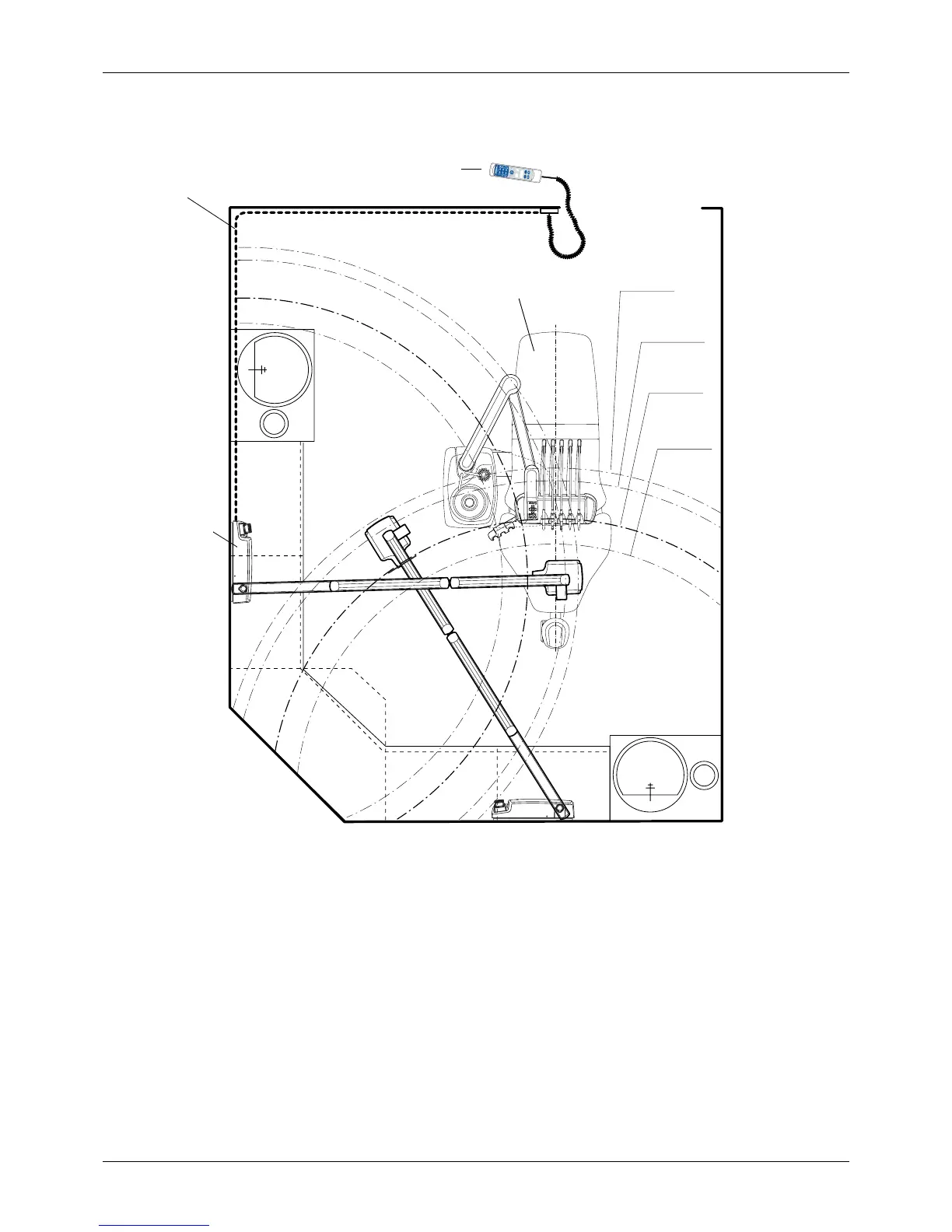

Wall mounting with remote control in treatment room (see section 7 “REMOTE
CONTROL PANEL INSTALLATION” on page 48)
S
C
D
A
B
&&
&
&
R
E
A
D
Y
P
R
E
T
mA
kV
s
B
W
S
E
L
E
C
T
M
O
D
E
IR2_1.eps
extension
arm 835mm
r=1975
extension
arm 535mm
r=1675 (std)
extension
arm 385mm
r=1525
extension
arm 760mm
r=1900
Dental unit
Generator box
Control panel
Telephone cable,
max. 12 m

Planmeca intra Specifications

General

Manufacturer	Planmeca
Model	Planmeca Intra
Frequency	50/60 Hz
Tube Voltage	60-70 kV
Tube Current	7 mA
Type	Dental X-ray Unit
Voltage	100-240 V
Weight	Varies depending on configuration; refer to specific model documentation
