Planmeca intra Installation Manual

Planmeca Intra X-ray unit 35
OTHER INSTALLATION ALTERNATIVES
Installation manual
Delight operating light installation
The operating light can be installed to the ceiling arm of the Planmeca Intra X-ray unit.
Delight operating light without power contol
Make sure that the operating light cable is installed.

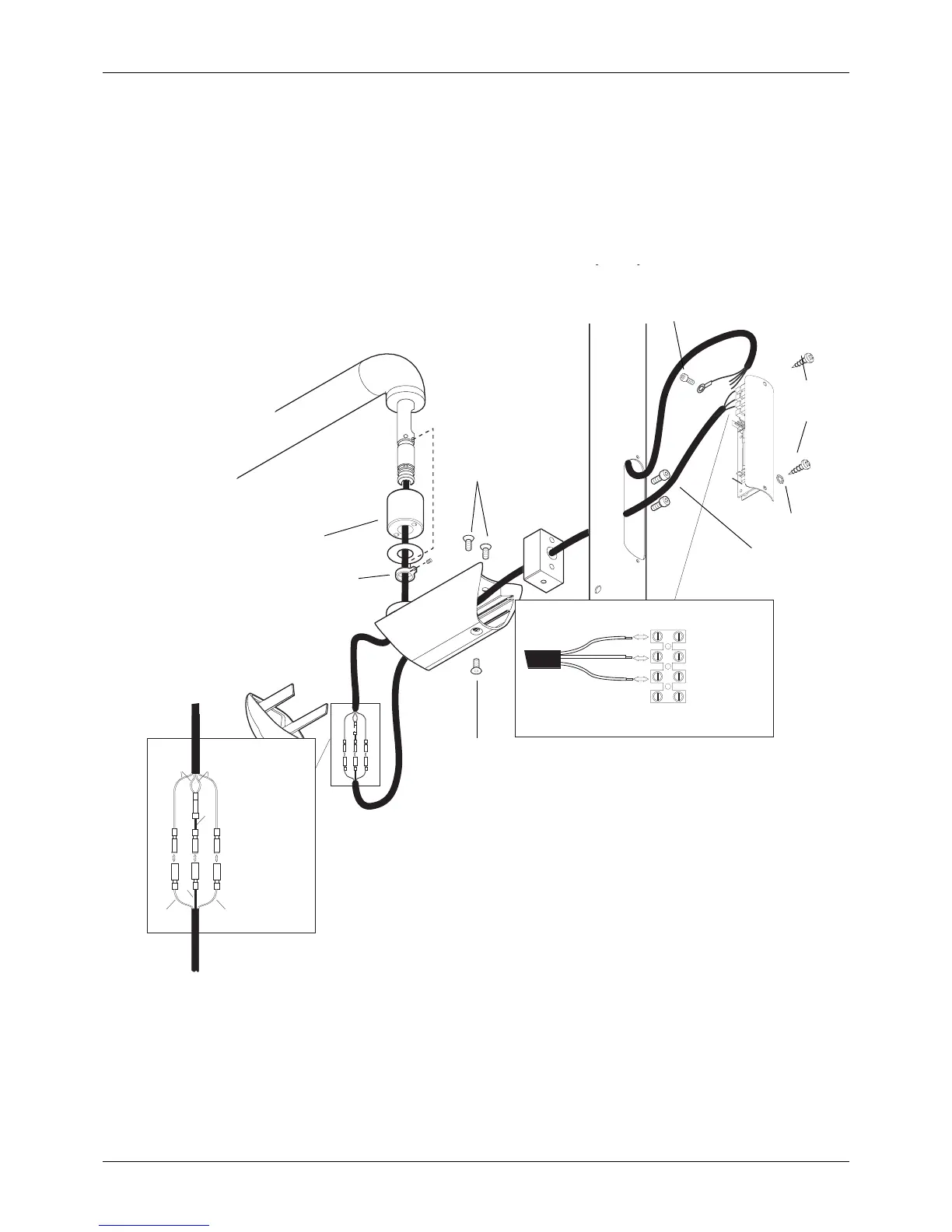

Attach the arm and the Delight operating light according to the figure below. Make sure that the light
cable is in the groove of the light arm pivot when attaching the light to the horizontal arm.
BLACK
YELLOWBLACK
BLACK
B LUE YELLOW
BLUE
YELLOW
BLUE
BULB
SWITCH
BULB AND
SWITCH COMMON
BLACK
NOTE !
The ABSOLUTE
MAXIMUM allowed bulb
voltage is 18,5 Vrms
measured at the bulb
socket.
Delight internal connection
Bulb MAX.
150W 24V
Momentary
push-button
switch 50V
10mA
BrownBlue
Ye l l o w Ye l l o w
Intra_delight_ceiling_inst_07.eps
M6x17 DIN 7991
M4x6 DIN 912
M6x12 DIN 912
ø4 DIN 6798
ø3.5x13
M6x17 DIN 7991
DIN 7981
Bushing
Rotation limiter
