Planmeca Intra X-ray unit 53
FIXED CONTROL PANEL INSTALLATION
Installation manual
8.3 Connecting the cables

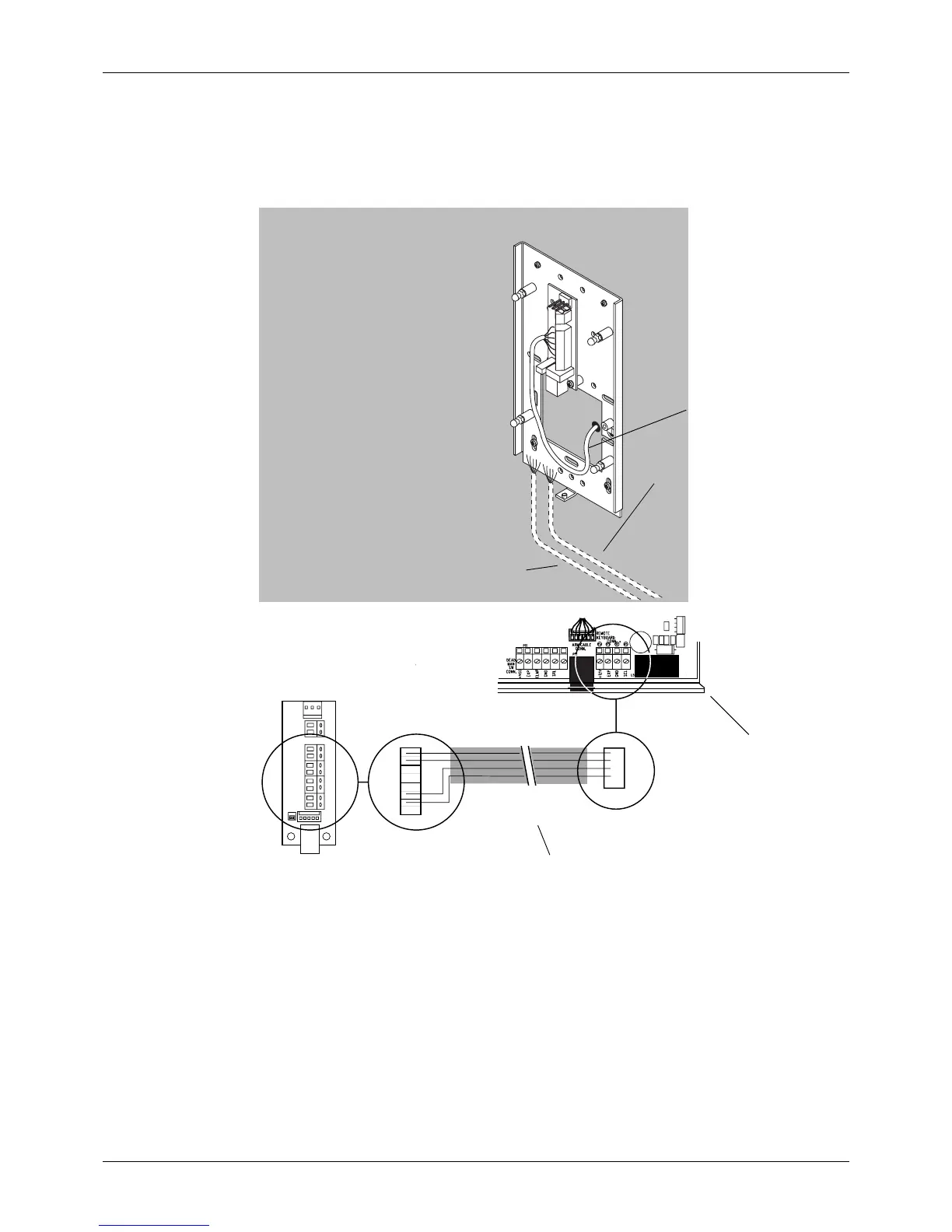

Connect the telephone cable between the Generator PCB and Extension cable PCB according to
the figure below.
Intra_box12.eps
P6
P7
P9
P8
HV1
HV1
+12V
EXP
KVC
GND
AUX1
AUX2
SCL
ELMP
2345
P6-P9
P13
+12V
+12V
EXP
EXP
GND
GND
SCL
P6
P9
P7
P8
SCL
Telephone cable,
Double exposure button (option)
Telephone cable
Generator PCB
Telephone cable,
Surface mounting (option)
Extension cable PCB
concealed wiring
