FIXED CONTROL PANEL INSTALLATION
54 Planmeca Intra X-ray unit
Installation manual

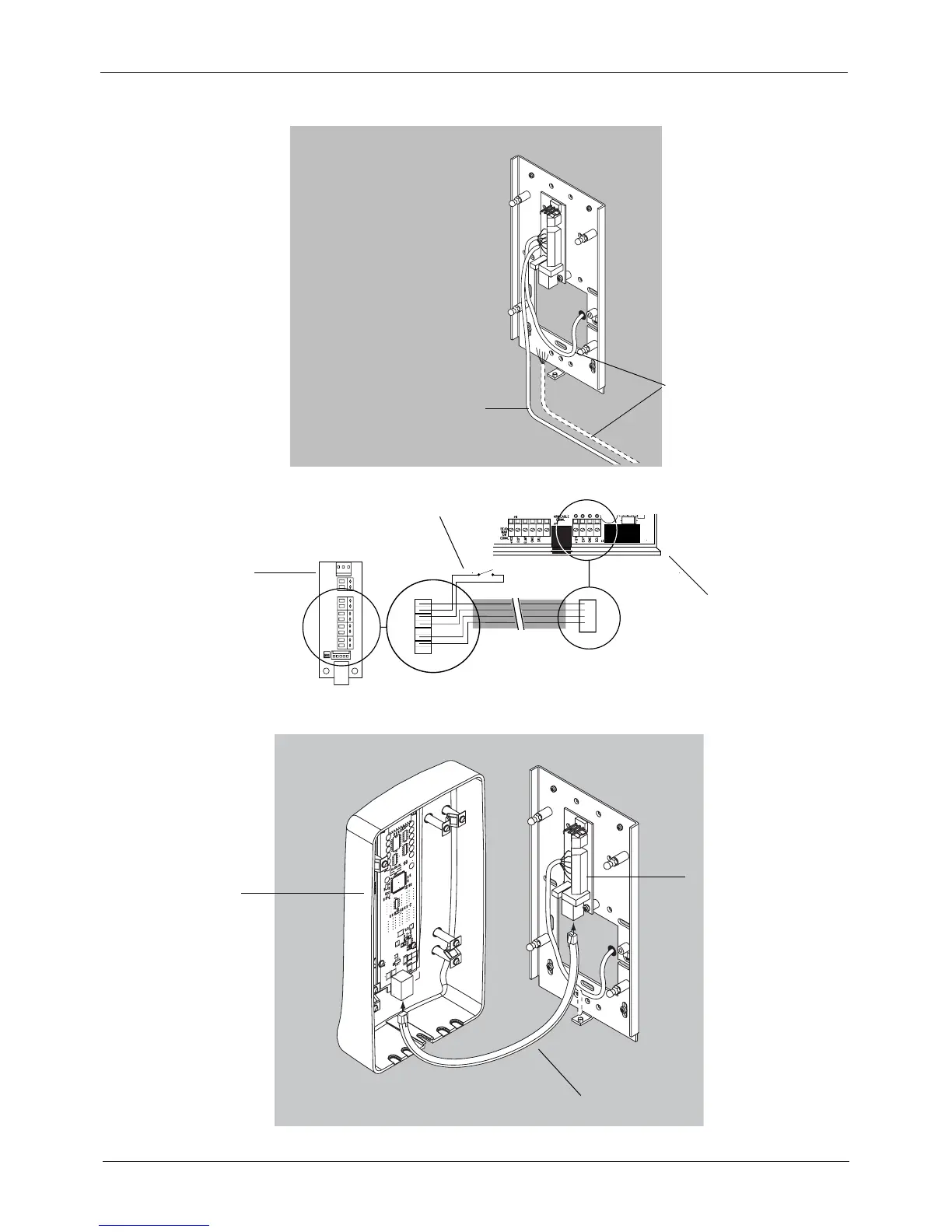

In case the double exposure button is installed, connect the cables according to the figure below.
Connect the cross connection (part number 10007597) cable between the Extension cable PCB and
fixed control panel.
Intra_box13.eps
P6
P7
P9
P8
HV1
HV1
+12V
EXP
KVC
GND
AUX1
AUX2AUX2
SCL
ELMP
2345
P6-P9
P13
+12V
+12V
EXP
EXP
GND
GND
SCL
P6
P9
P7
P8
SCL
AUX1
Double exposure button
Generator PCB
Telephone cable
Double exposure button cable
Extension cable PCB
Telephone cable
Intra_box4A.eps
Cross connection cable
Extension cable PCB
Fixed control panel
