Planmeca Intra X-ray unit 25
OTHER INSTALLATION ALTERNATIVES
Installation manual
5 OTHER INSTALLATION ALTERNATIVES
WARNING
Ensure that the power supply is switched off before installing the
Planmeca Intra X-ray unit.
NOTE With the installation methods described in this section the generator box
is installed directly to a wall without using a wall adapter plate. Refer to the
section 6 “ATTACHING THE GENERATOR BOX WITHOUT THE ADAPTER
PLATE” on page 44.

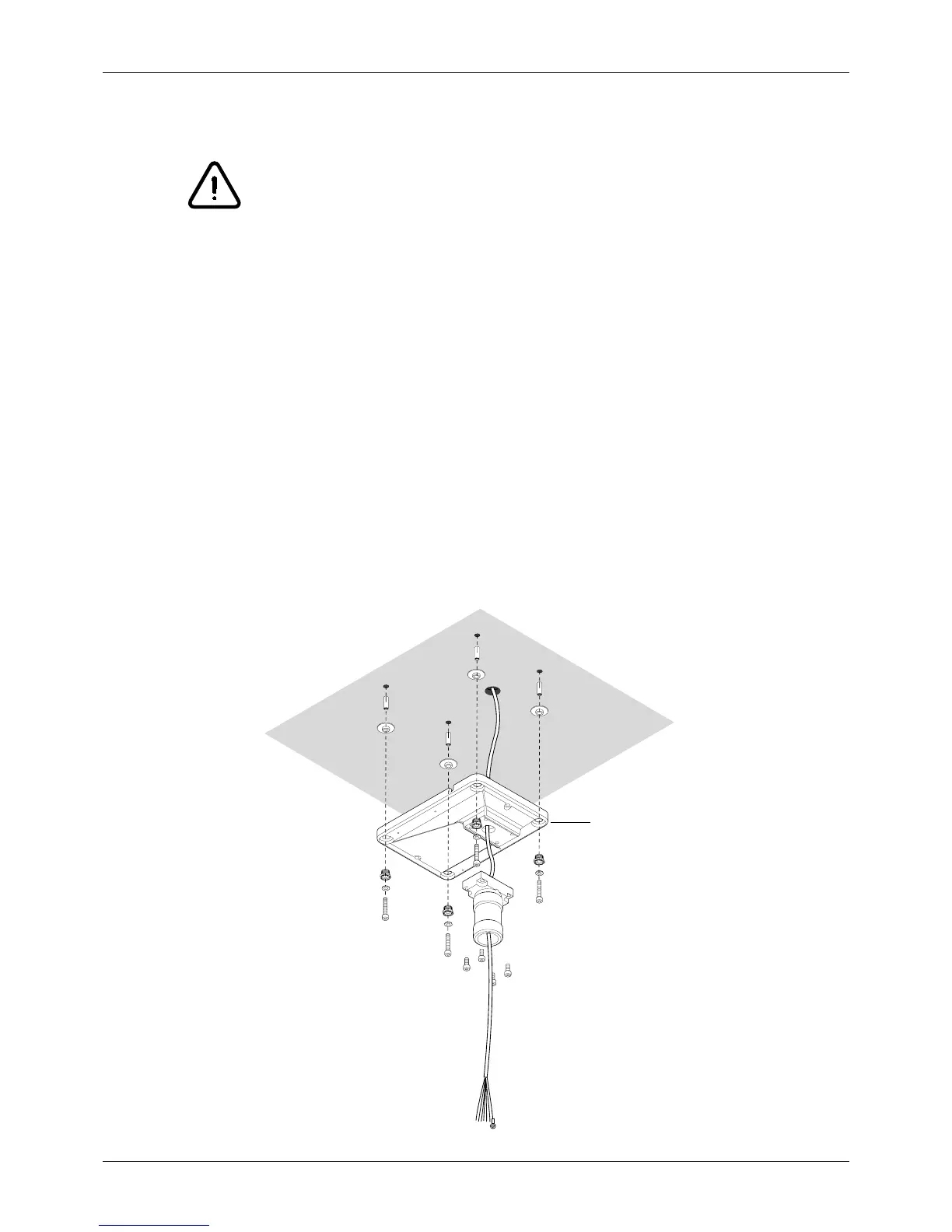

5.1 Ceiling installation
Concrete ceiling
Mark the place of the adapter plate to the ceiling. Drill one ø10 mm (0.4 in.), 32...35 mm (1.25 in.) in
depth, hole and place the expansion anchor into it. Attach the adapter plate to the ceiling with one of
the fastening screws.
Remove the adjustment nuts from the three mounting holes. Attach the drilling tool to one of the
holes and drill the second hole using the drilling tool as a guide. Drill the two other holes in the same
way. Remove the adapter plate and insert the expansion anchors into the holes.
Attach the plate to the ceiling with four M8x35 DIN 912 screws and ø8.4/17 DIN 125 washers. Use
the adjustment nuts and the adjustment plates with the screws at each corner of the adapter plate.
Adapter plate
