STANDARD INSTALLATION TO A WALL
18 Planmeca Intra X-ray unit Installation manual
4.4 Mounting the arm
Route the arm and Dixi interconnection cables through the wall adapter bearing. Mount the arm into
position by pushing the arm shaft into the wall adapter bearing.
The arm position is adjusted at the factory. In case the position needs to be adjusted, loosen the
adjustment piece fastening and adjustment screws. Do not open the screws totally. Turn the arm
away from the wall. Tighten the adjustment screw, the adjustment piece moves towards the arm
shaft.
Turn the arm carefully to the desired position. If the arm remains too far from the wall, push the arm
slightly towards the wall and simultaneously loosen the adjustment screw. The adjustment piece
now moves away from the arm shaft and the arm towards the wall. After the desired position has
been reached, tighten the adjustment piece fastening screw with care. Tighten also the adjustment
screw.
4.5 Installing the generator assembly
There are four M4x8 ULS screws attached to the adapter plate at the factory. Loosen these screws
a couple of turns with a 2mm allen key. Position the arm cable (and mains cable) as shown on the
figure below. Slip the generator assembly under the heads of the screws.

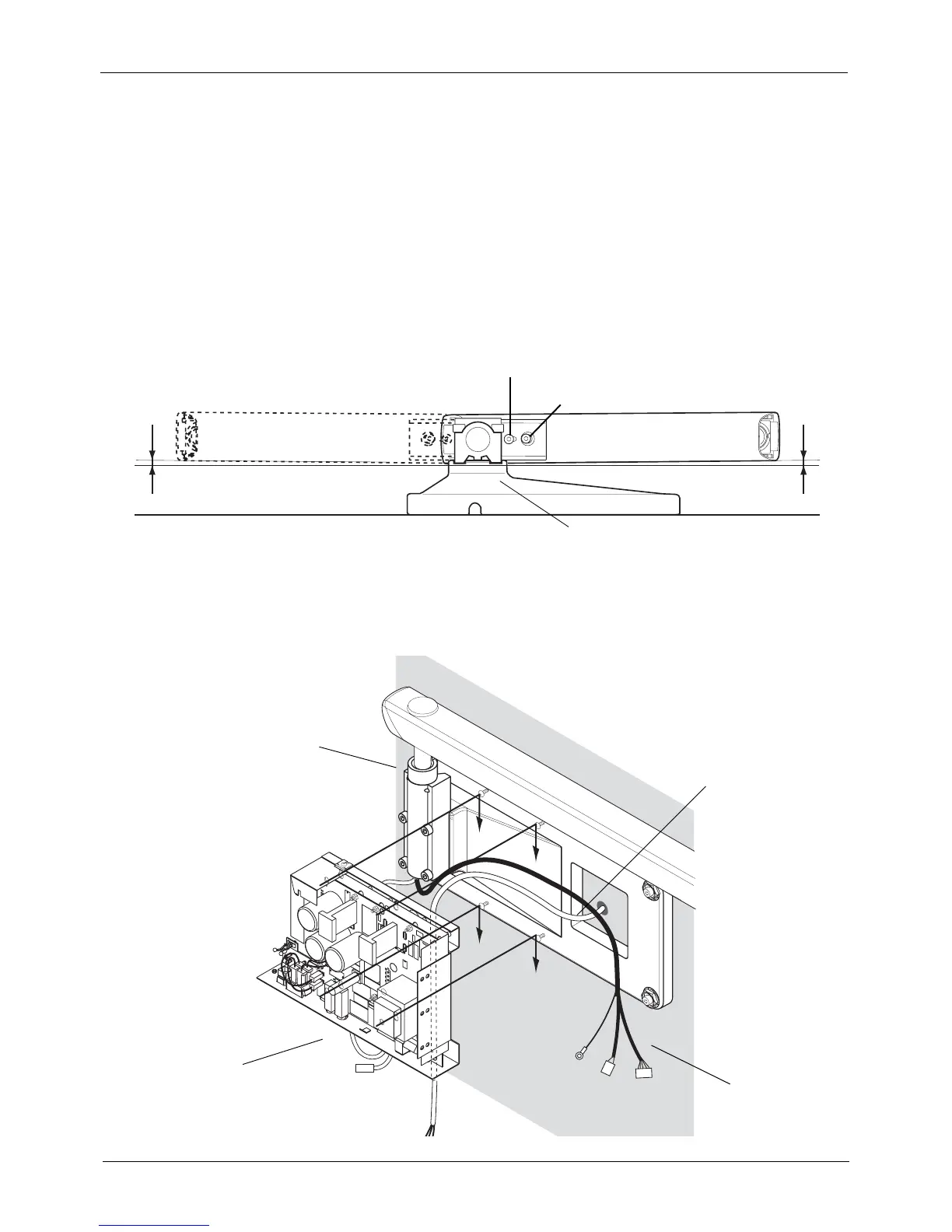

Walladap.eps
3 mm3 mm
wall
Wall adapter and arm seen from below.
Fastening screw
Adjustment screw
Ins5APSU2.eps
Mains cable
Wall adapter bearing
Generator assembly
Arm cable
