Planmeca Intra X-ray unit 17
STANDARD INSTALLATION TO A WALL
Installation manual

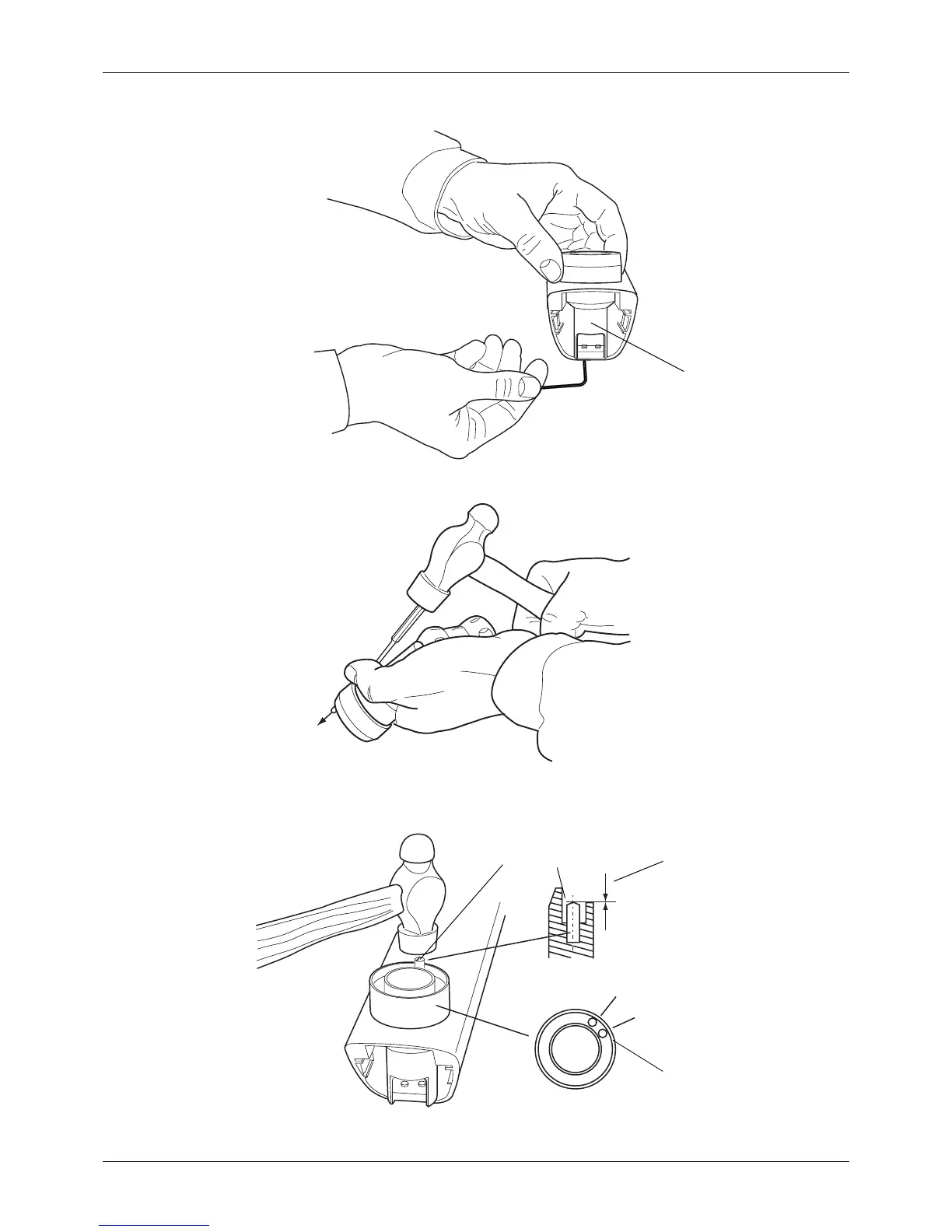

Unscrew the two screws that hold the housing on the extension arm and remove the shaft.
Remove the limiting pin from the housing by using a thin screwdriver and hammer.
Attach the pin to the other opening on the housing so that the pin is level with the inner surface of
the housing (see figure below).
joint2.eps
Arm shaft housing
joint3.eps
MODIFIED
PRESET
joint4.eps
Limiting pin
Housing surface
Openings for limiting pin
