Planmeca Intra X-ray unit 59
FINAL ADJUSTMENTS
Installation manual

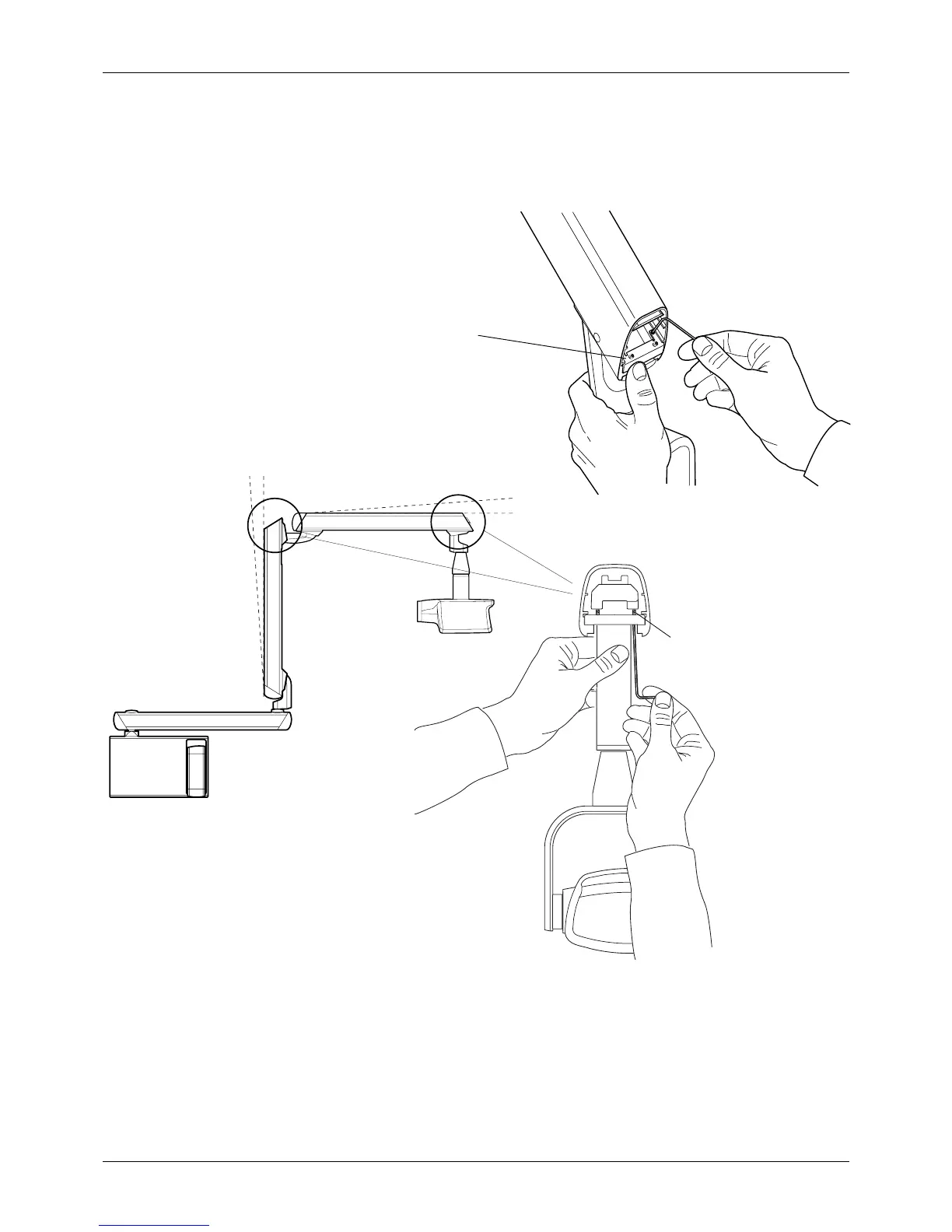

11.2Adjusting the bracket arm angles
In case the bracket arm angles need to be adjusted it can be done with the limiting plates.
Remove the cover plug from the end of the bracket arm. Attach the limiting plate to the arm with the
two M3 Allen screws. Adjust the angle with the limiting plate adjustment screws.
Intradj2.eps
Intradj1.eps
Limiting plate
Limiting plate adjustment
screw
