OTHER INSTALLATION ALTERNATIVES
36 Planmeca Intra X-ray unit Installation manual
Delight operating light with power contol

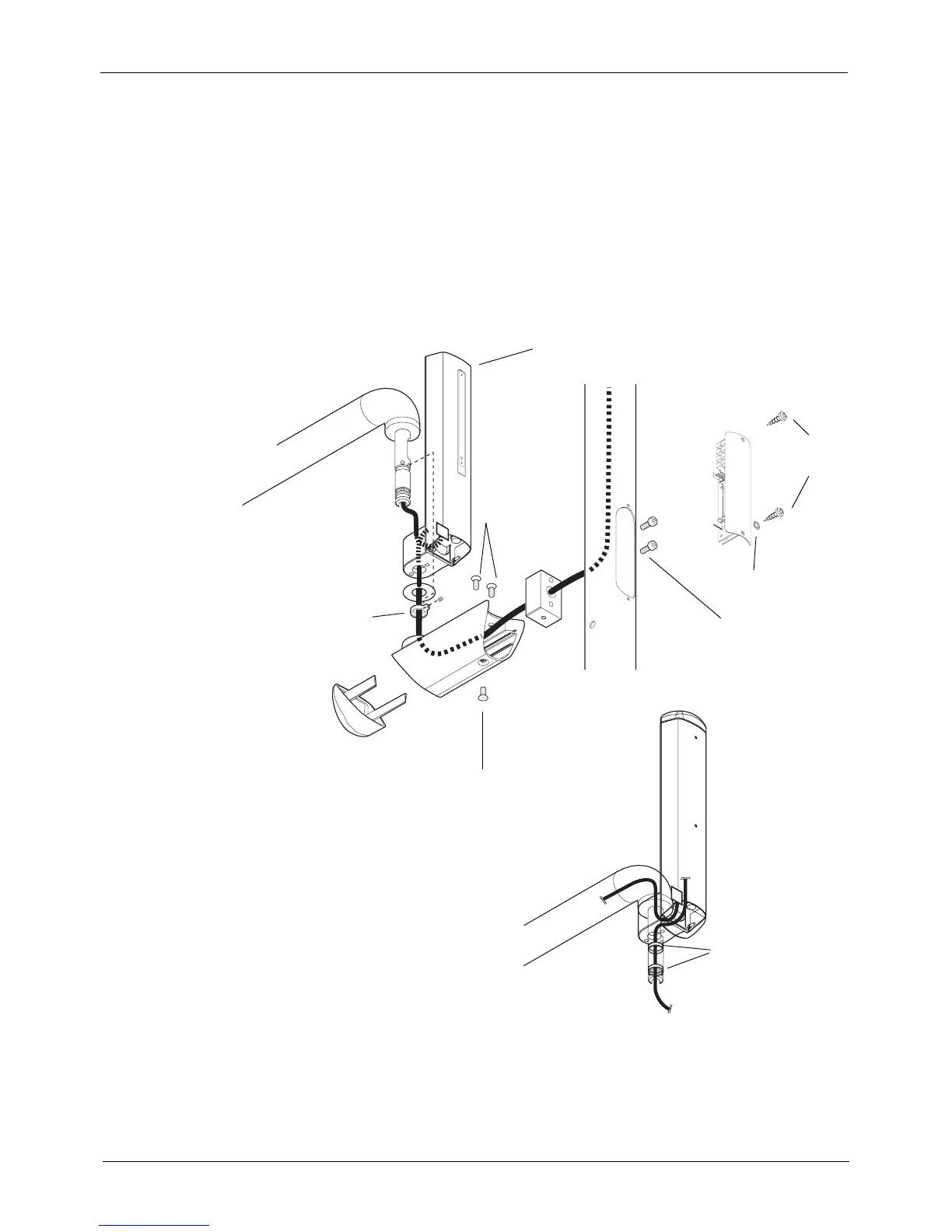

Attach the arm and the Delight operating light according to the figure below.
Make sure that the light cable is in the groove of the light arm pivot when attaching the power control
assembly to the light.
Add some vaseline to the light arm pivot. Route the light cable through the openings on the power
control assembly and push the light arm pivot into the power control assembly opening.
Carefully push the light power supply cable into the groove of the light arm pivot. Push the pivot
through the power control assembly openings so that the assembly hits the pin located on the light
arm. Push the power supply cable into the power control assembly and rotate the power control
assembly so that the pin in the light arm goes into the hole on the power control assembly.
Attach two spring bushings to the light arm pivot.
NOTE Do not tighten the ligth cable but leave it a bit loose.
Connect the Delight wires according to the instructions given in Delight Installation manual, publica-
tion number 588200.
Intra_delight_AC_ceiling_inst_07.eps
M6x17
M6x12 DIN 912
ø4 DIN 6798
ø3.5x13
M6x17 DIN 7991
DIN 7981
Power control assembly
Rotation limiter
DIN 7991
Spring bushings
