OTHER INSTALLATION ALTERNATIVES
42 Planmeca Intra X-ray unit
Installation manual

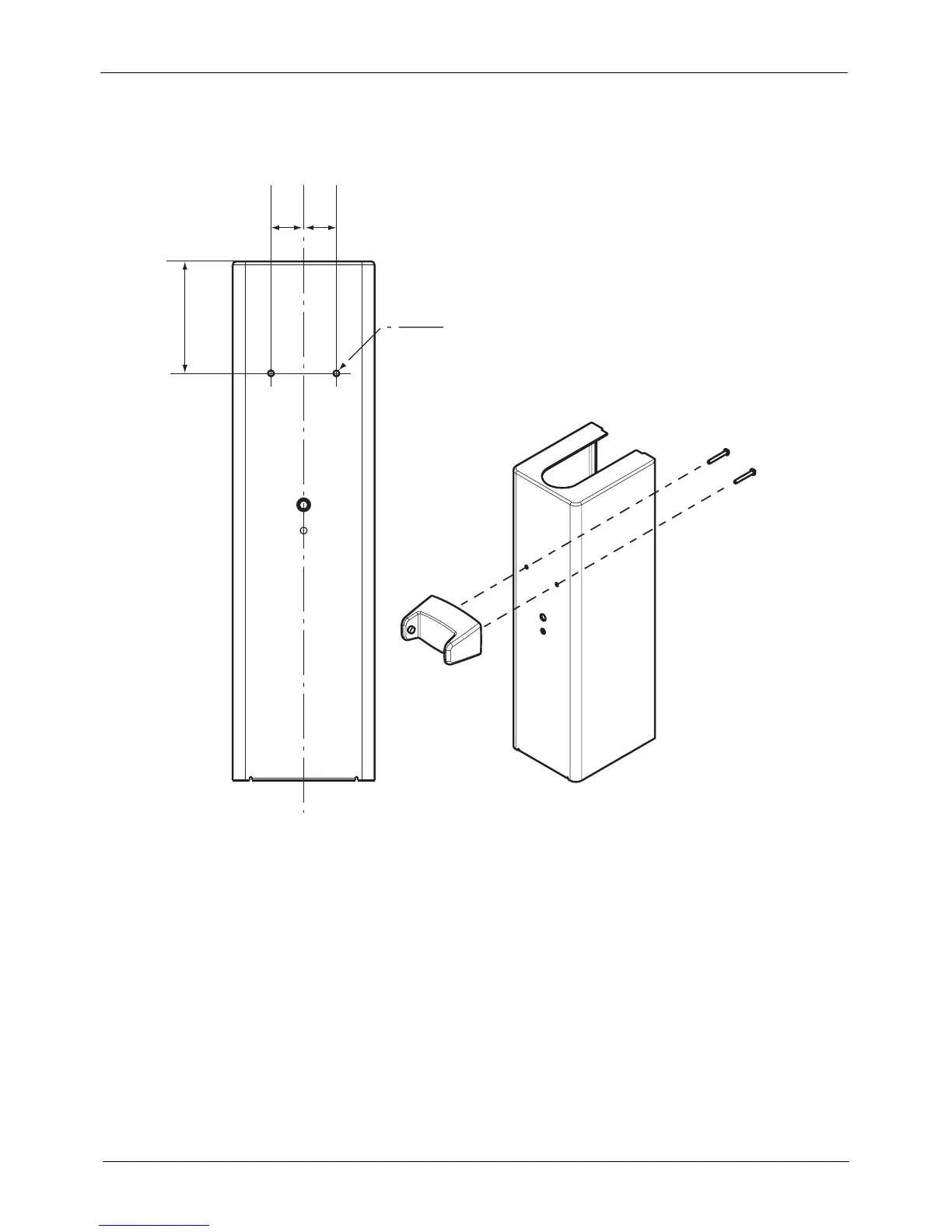

If the control panel is attached to the single stud cover, attach the control panel holder before attach-
ing the cover to its position. Drill two attachment holes to the cover as shown on the figure below
and attach the holder to the cover with the two PT 3x22 rst WN1451 screws.
19mm
65mm
19mm
Ø 3,5mm
Screw 3x22 PT
Code 00326195
I_14.eps
