Planmeca Intra X-ray unit 39
OTHER INSTALLATION ALTERNATIVES
Installation manual

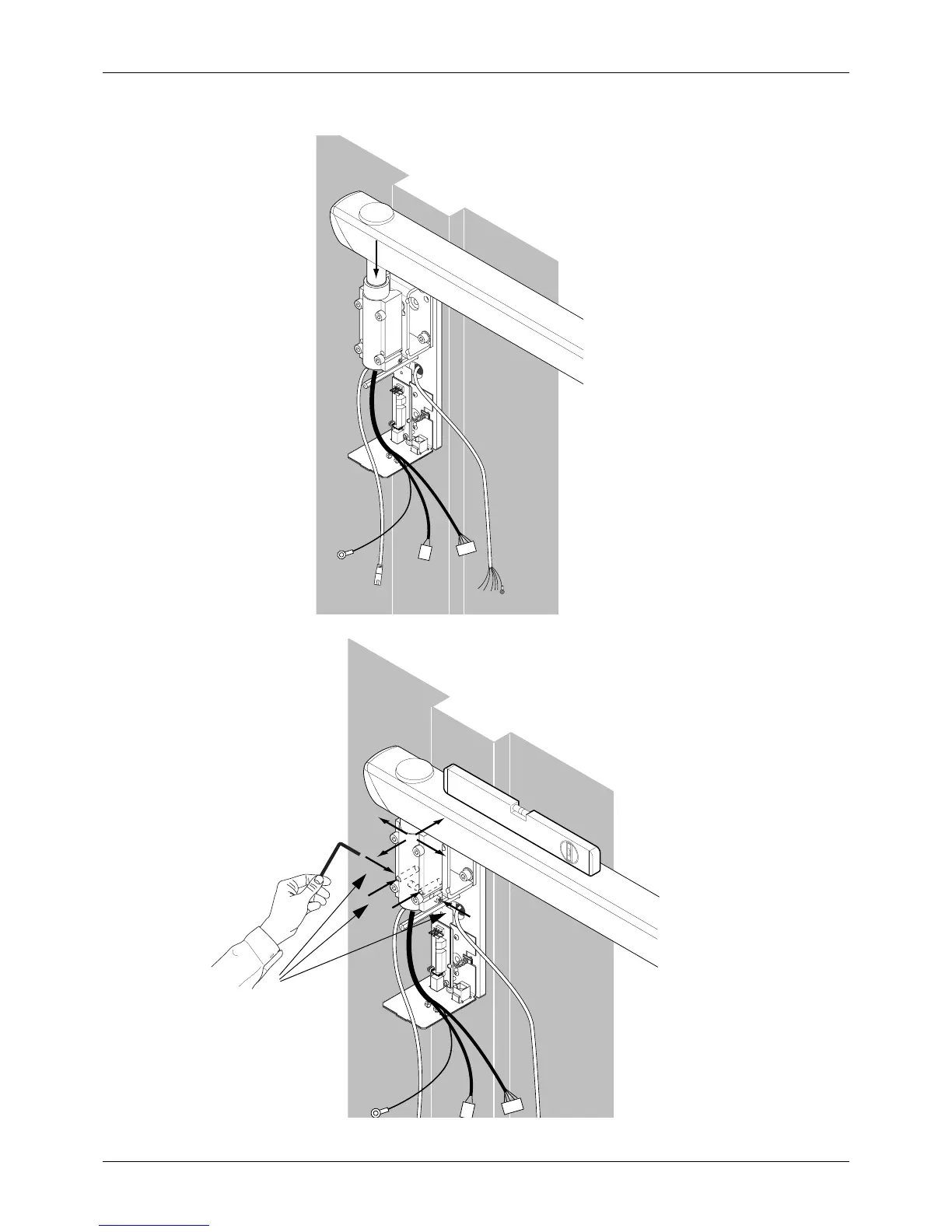

Route the arm and Dixi interconnection cables through the wall adapter bearing. Mount the arm into
position by pushing the arm shaft into the wall adapter bearing.
Using a spirit level adjust the arm position with the four screws of the wall adapter bearing.
I_9A.eps
I_10A.eps
Adjust the arm position with
these screws.

Planmeca intra Specifications

General

Manufacturer	Planmeca
Model	Planmeca Intra
Frequency	50/60 Hz
Tube Voltage	60-70 kV
Tube Current	7 mA
Type	Dental X-ray Unit
Voltage	100-240 V
Weight	Varies depending on configuration; refer to specific model documentation
