Bookletmaker SR 85 February 2001PAGE

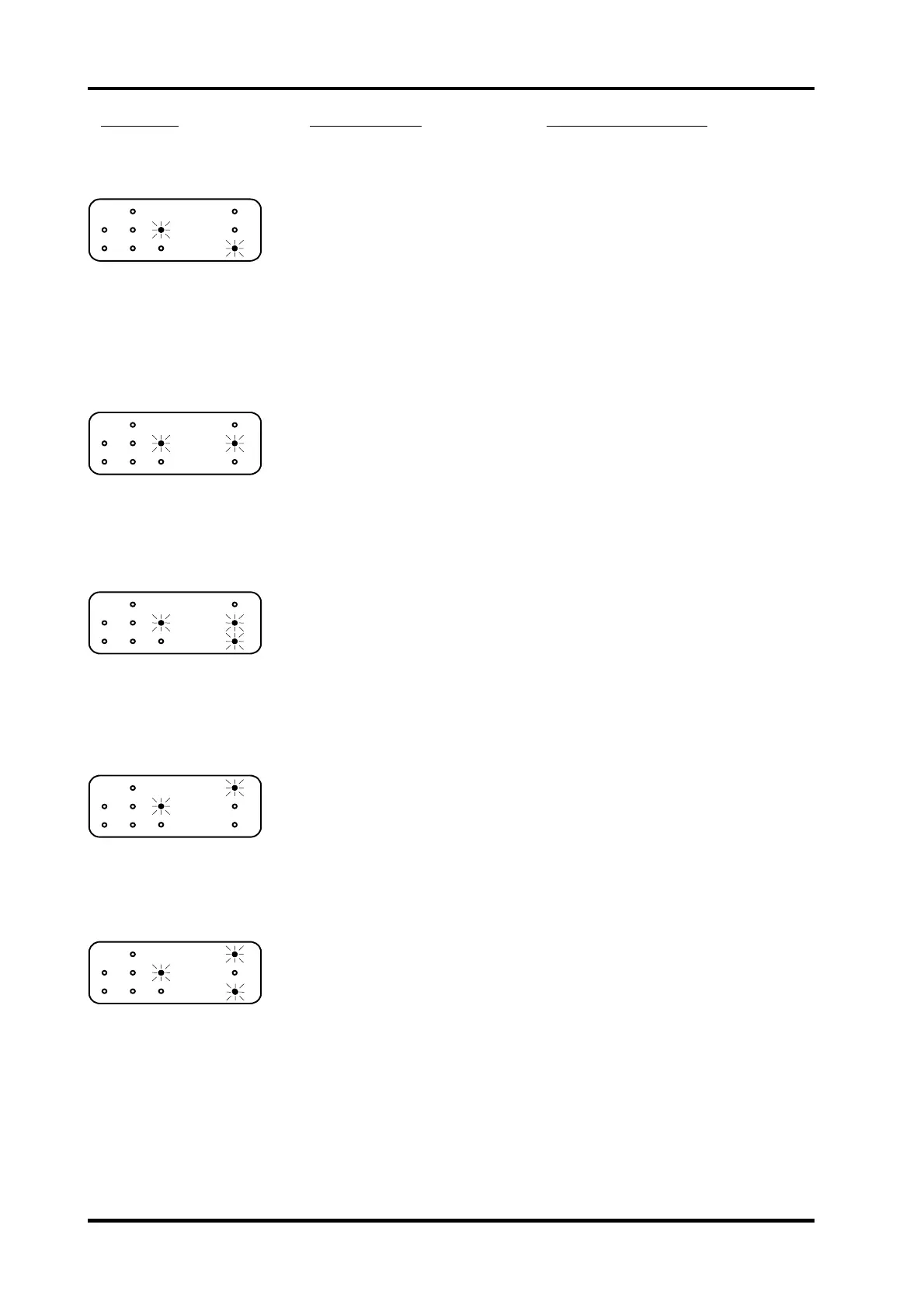

Fault code
Possible cause
Fault isolating / repair
17
.
Back jogger motor
MOT 7, jogger up,
open circuit.
Motor defective. If both fault code 17 and 18 was detected.
Disconnect the motor connector. Check
the motor for an open circuit using a
voltmeter.
Wires defective. If both fault code 17 and 18 was detected.
Disconnect the motor connector. Check
the wires for an open circuit using a
voltmeter. Measure from 10 and 11 on
connector J8 to the motor connector.
Controller PCB defective. If only one of fault code 17 and 18 was
detected. Replace the controller PCB.
18
.
Fold stop gate motor
MOT 12, open circuit.
Motor defective. Disconnect the motor connector. Check
the motor for an open circuit using a
voltmeter.
Wires defective. Disconnect the motor connector. Check
the wires for an open circuit using a
voltmeter. Measure from 8 and 1 on
connector J9 to the motor connector.
Controller PCB defective. Replace the controller PCB.
19
.
Stapler motor MOT 1,
open circuit.
Motor defective. Disconnect the motor connector. Check
the motor for an open circuit using a
voltmeter.
Wires defective. Disconnect the motor connector. Check
the wires for an open circuit using a
voltmeter. Measure from 9 and 2 on
connector J2 to the motor connector.
Controller PCB defective. Replace the controller PCB.
20
.
Stapled set transport
motor MOT 4,
Open circuit
Motor defective. Disconnect the motor connector. Check
the motor for an open circuit using a
voltmeter.
Wires defective. Disconnect the motor connector. Check
the wires for an open circuit using a
voltmeter. Measure from 7 and 14 on
connector J9 to the motor connector.
Controller PCB defective. Replace the controller PCB.
21
.
Stapled set transport
solenoid SOL 1,
open circuit.
Solenoid defective. Disconnect the solenoid connector. Check
the solenoid for an open circuit using a
voltmeter.
Wires defective. Disconnect the solenoid connector. Check
the wires for an open circuit using a
voltmeter. Measure from 5 on connector
J2 to 5 on connector J9.
Controller PCB defective. Replace the controller PCB.
Continue FIP 8.1 Self diagnostic system control, Fault code table
8.1.6
