Bookletmaker SR 85 February 2001PAGE

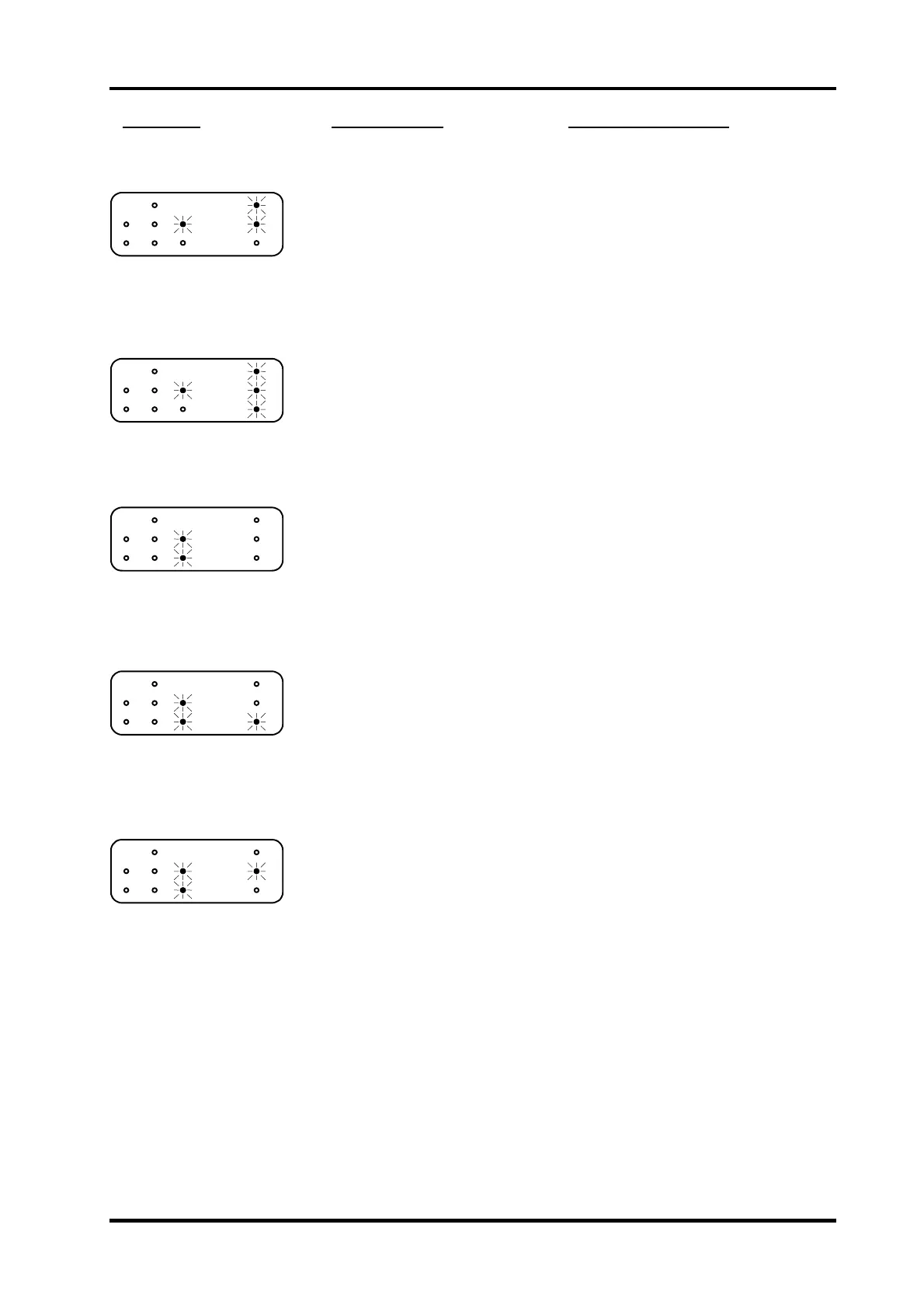

Fault code Possible cause Fault isolating / repair
22
.
Staple stop gate
release solenoid
SOL 2, open circuit.
Solenoid defective. Disconnect the solenoid connector. Check
the solenoid for an open circuit using a
voltmeter.
Wires defective. Disconnect the solenoid connector. Check
the wires for an open circuit using a
voltmeter. Measure from 4 and 11 on
connector J2 to the solenoid connector.
Controller PCB defective. Replace the controller PCB.
23
.
Side jogger motor MOT3,
open circuit.
Motor defective. Disconnect the motor connector. Check
the motor for an open circuit using a
voltmeter.
Wires defective. Disconnect the motor connector. Check
the wires for an open circuit using a
voltmeter. Measure from 11 and 12 on
connector J9 to the motor connector.
Controller PCB defective. Replace the controller PCB.
24
.
Fold knife motor
MOT 2, open circuit.
Motor defective. Disconnect the motor connector. Check
the motor for an open circuit using a
voltmeter.
Wires defective. Disconnect the motor connector. Check
the wires for an open circuit using a
voltmeter. Measure from 8 and 1 on
connector J2 to the motor connector.
Controller PCB defective. Replace the controller PCB.
25
.
Folder roller motor
MOT 8, open circuit.
Motor defective. Disconnect the motor connector. Check
the motor for an open circuit using a
voltmeter.
Wires defective. Disconnect the motor connector. Check
the wires for an open circuit using a
voltmeter. Measure from 11 and 14 on
connector J2 to the motor connector.
Controller PCB defective. Replace the controller PCB.
26
.
Stacker motor MOT 5,
open circuit.
Motor defective. Disconnect the motor connector. Check
the motor for an open circuit using a
voltmeter.
Wires defective. Disconnect the motor connector. Check
the wires for an open circuit using a
voltmeter. Measure from 13 and 6 on
connector J9 to the motor connector.
Controller PCB defective. Replace the controller PCB.
NOTE:
When you are running a SDS with a
Trimmer. The Bookletmaker is only
running SDS on itself. So the machine will
not feel anything behind the
Bookletmaker, and will think that the
Beltstacker is not connected.
Continue FIP 8.1 Self diagnostic system control, Fault code table
8.1.7
