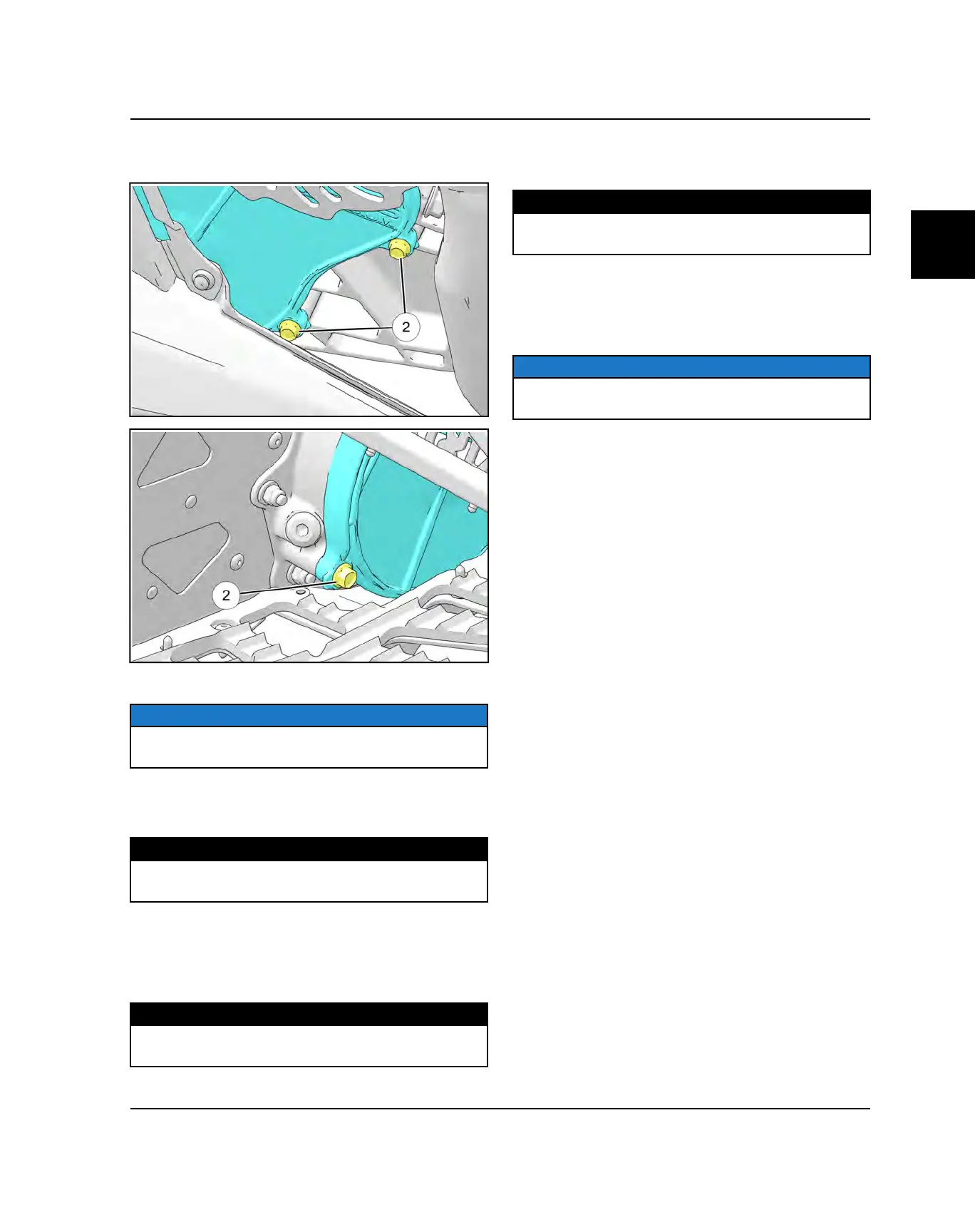

5. Loosen (do not remove) the chaincase cover screws
w
shown in the images below.
6. Carefully pry the cover open.
NOTICE
DO NOT insert a screwdriver or pry bar between the
cover and chaincase. Seal damage may occur.
7. Allow the oil to drain completely.
8. Tighten the cover screws.
TORQUE
Chaincase Cover Fasteners:
12 ft-lbs (16 N·m)
9. Remove the fill plug. Clean all metal shavings off the
plug.
10.Using a funnel, slowly add the recommended oil until
the fluid begins to overflow.
FLUID CAPACITY
Maximum Fluid Capacity:
10.5 oz (310 mL)
11. Clean the area with a clean, dry shop towel.
12.Reinstall the fill plug. Torque fill plug to specification.
TORQUE
Chaincase Fill Plug:
4 ft-lbs (6 N·m)
13.Reinstall the screws securing the fender to the
chaincase.
14.If equipped with a battery, install battery bracket and
battery.
NOTICE
When installing the battery, connect the RED (+) cable
first, and then connect the BLACK (-) cable last.
