IGNITION COIL HARNESS ROUTING

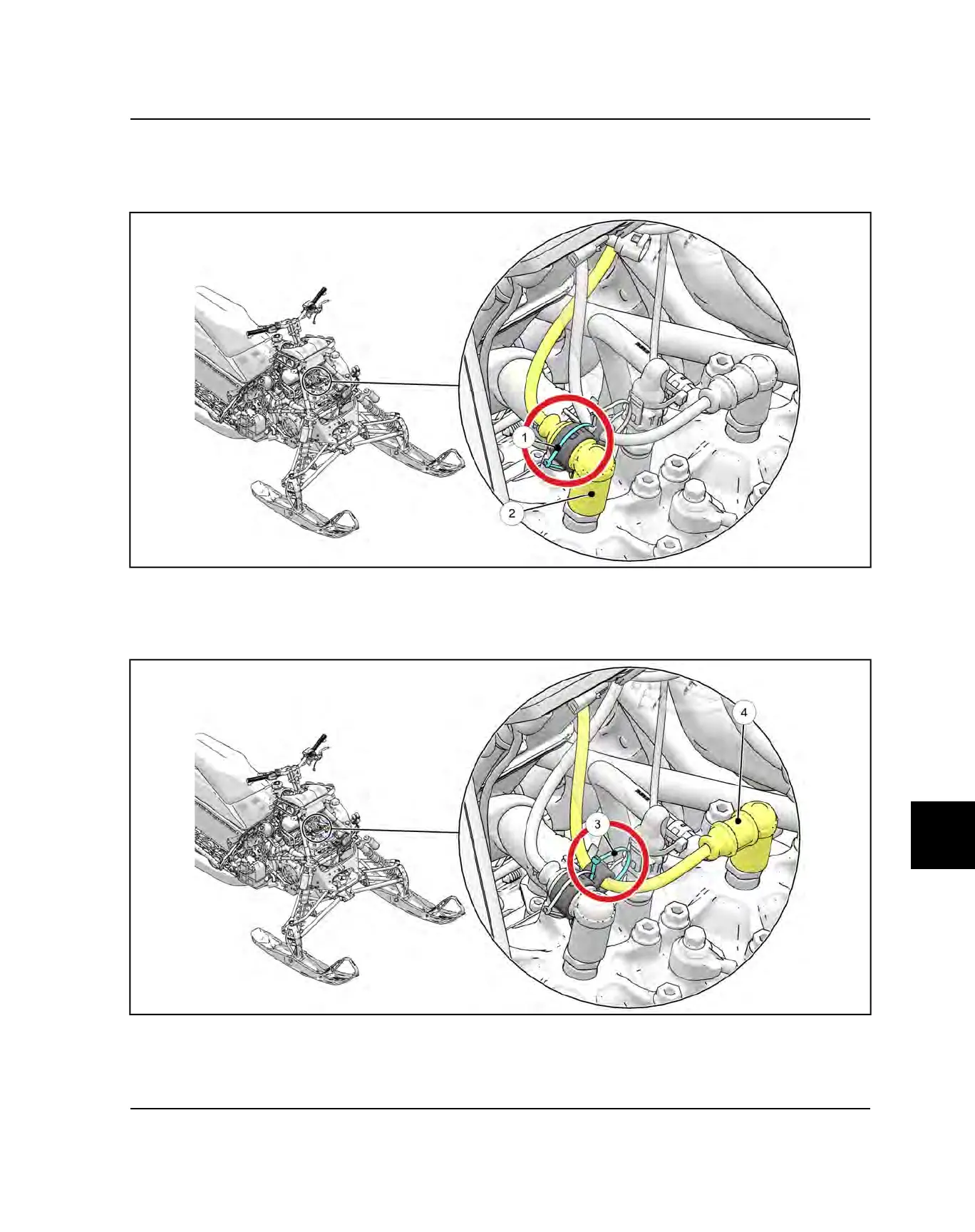

The MAG coil pack is mounted to the PTO side of the air box.
1. Route the MAG coil harness down to the spark plug support and secure the harness with a panduit strap
q
.
2. Install spark plug cap
w
on MAG side spark plug.
The PTO coil pack is mounted to the MAG side of the air box.
3. Route the PTO coil harness down to the spark plug support and secure the harness with a panduit strap
e
.
4. Install spark plug cap
r
on PTO side spark plug.
