9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
8.33

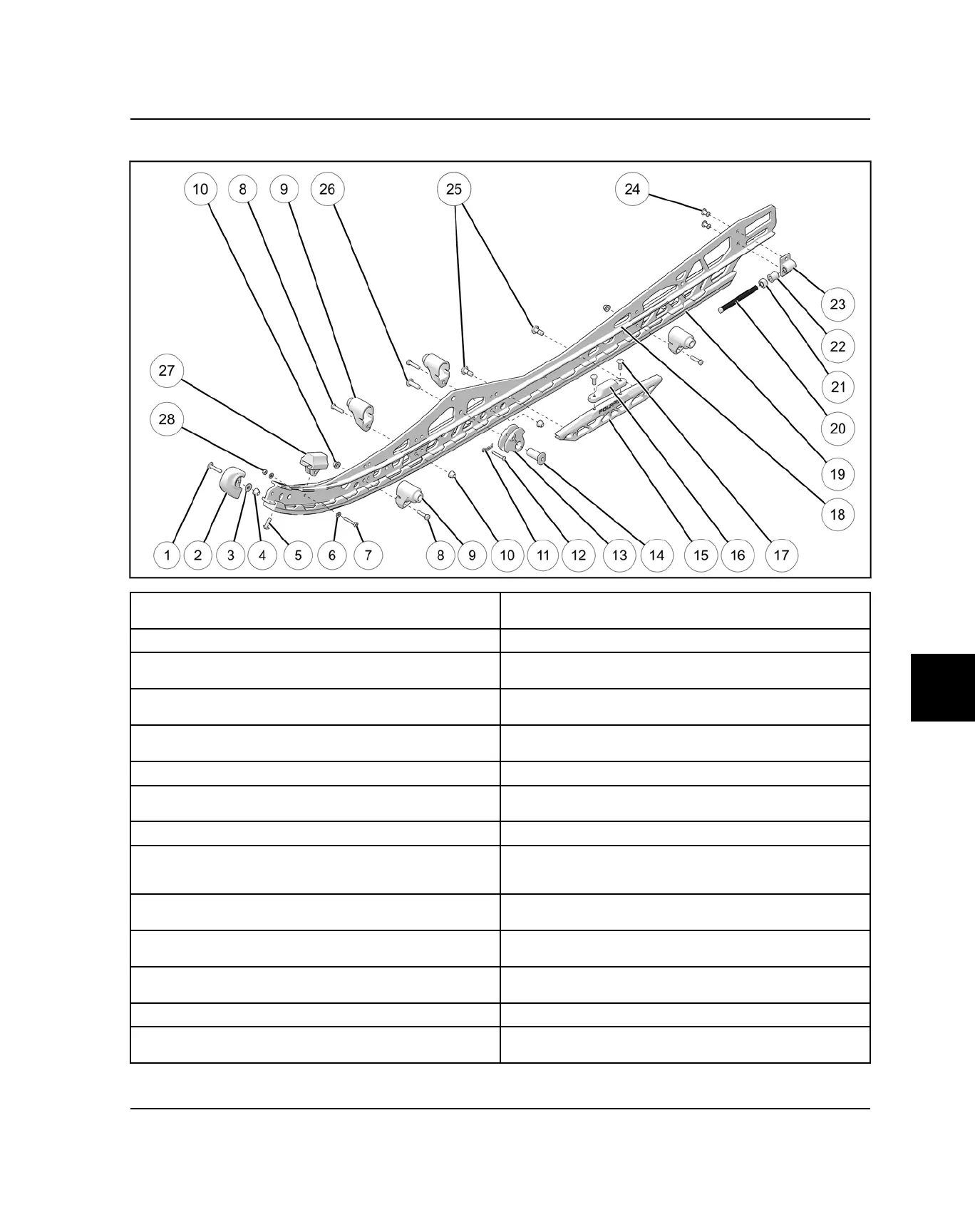

IGX 146 RAIL ASSEMBLY VIEW
q
Rail Tip Fastener
Head of screw to be on opposite side of rail as adjuster block
h
Rail Plate Reinforcement
w
Rail Tip
j
Front Torque Arm Bumper
e
Washer
k
Front Torque Arm Bumper Fasteners
4 ft-lbs (6 N·m)
r
Nut
4 ft-lbs (6 N·m)
l
Rail Assembly 146
t
Hi-Fax Fastener
4 ft-lbs (6 N·m)
1(
Hi-Fax 146
y
Washer
2)
Adjustment Fastener
u
Jounce Bumper Fastener
Head of screw to be on opposite side of rail as adjuster block
2!
Nut
i
Wheel Mount Block Fastener
2@
Idler Adjustment Spacer
o
Wheel Mount Block
Wheel block goes in front hole on the LH rail asm.
Wheel block goes in rear hole on the RH rail asm.
2#
Idler Adjustment Block
a
Nut
9 ft-lbs (12 N·m)
2$
Rivet
s
Hitch Pin
2%
Rail Plate Reinforcement Fasteners
17 ft-lbs (23 N·m)
d
Clevis Pin
2^
Spring Roller Shaft Fastener
17 ft-lbs (23 N·m)
f
Spring Square Guide
2&
Front Jounce Bumper
g
Spring Roller Shaft
2*
Nut
Torque until screw protrudes 5mm out of nut
