9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
9.5

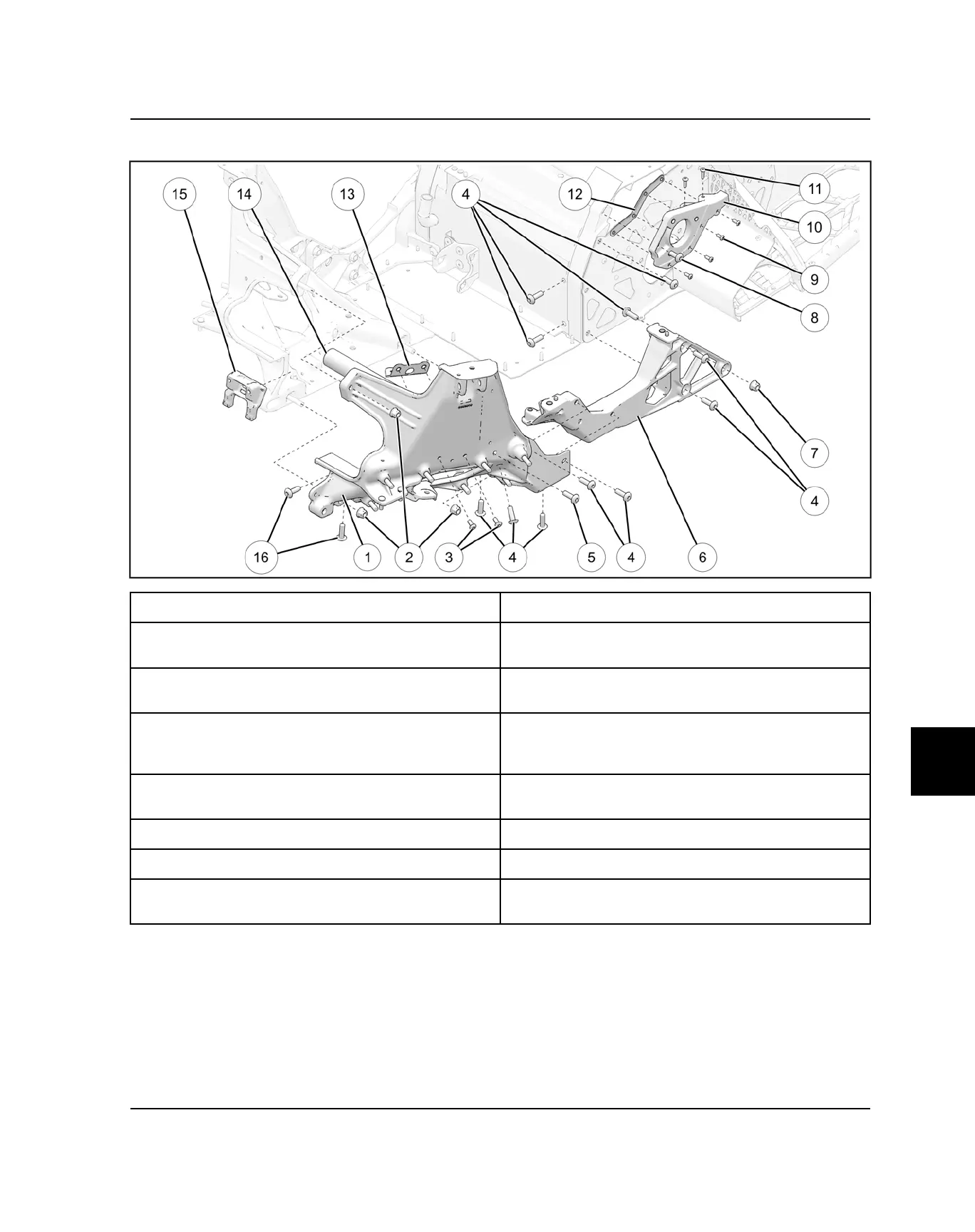

LEFT BULKHEAD / SIDE SUPPORT ASSEMBLY VIEW
q
Left Bulkhead Clip
o
Jackshaft Bearing Mount to Tunnel Fasteners
w
Nut
26 ft-lbs (35 N·m)
a
Jackshaft Bearing Mount
e
Clip Idler Bracket Fastener
9 ft-lbs (12 N·m)
s
Rivet
r
Side Support Fasteners
26 ft-lbs (35 N·m)
Replace with new when removed
d
Jackshaft Nut Plate
t
Crossover Tube Fastener
22 ft-lbs (30 N·m)
f
Idler Bracket
y
Left Support Brace
g
Crossover Tube
u
Nut
h
Lower Steering Mount
i
Jackshaft Bearing Mount to Bulkhead Fasteners
j
Lower Steering Mount Fasteners
22 ft-lbs (30 N·m)
CHASSIS
