CHAINCASE VENT LINE ROUTING
NOTICE
Images for reference only.

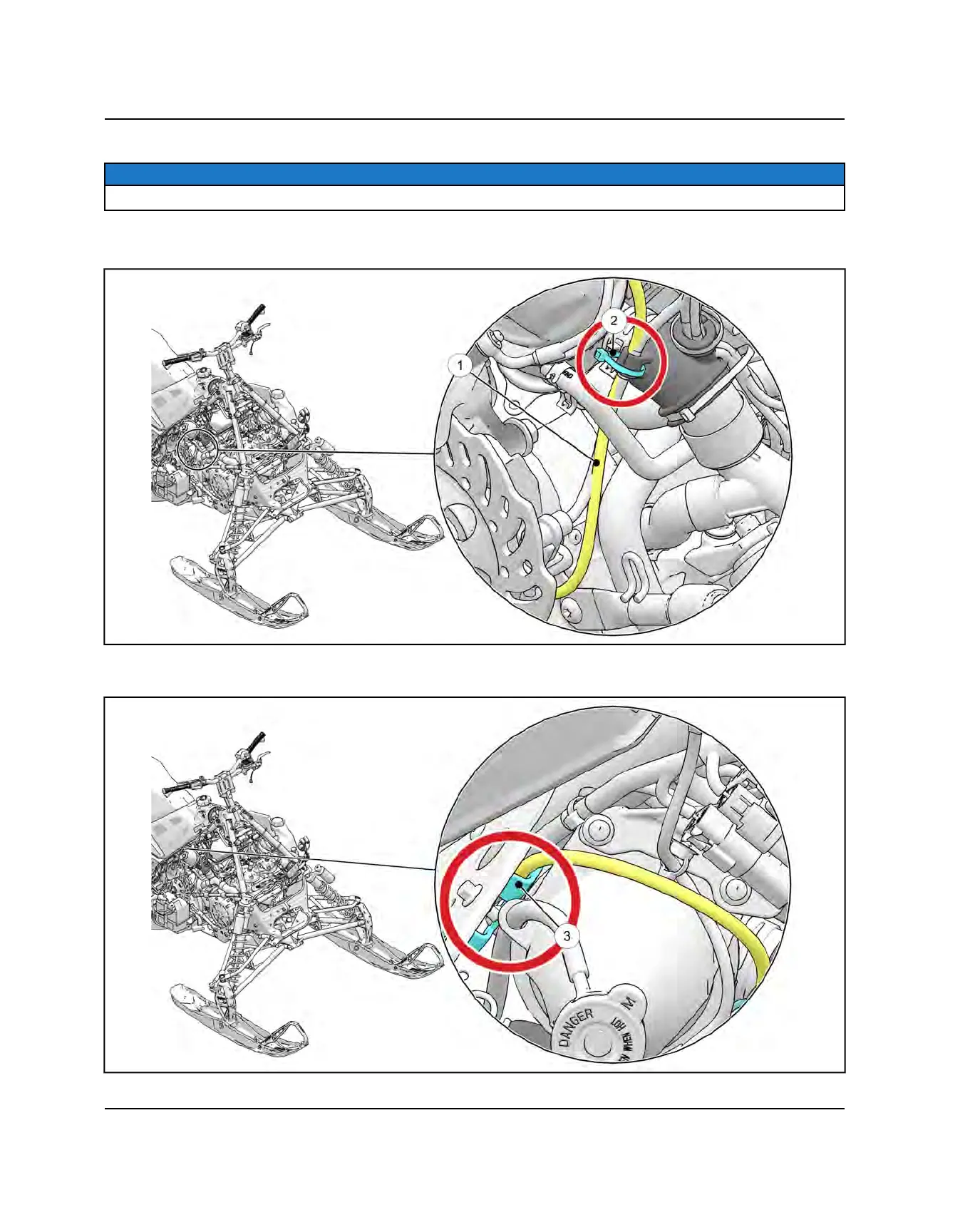

1. Route the chaincase vent line
q
from the chaincase vent fitting and under the coolant hose. Secure the chaincase
vent line in the hose/electrical support with a panduit
w
.
2. Route the chaincase vent line behind the coolant bottle and toward the rear of the vehicle. The chaincase vent line
should terminate in the coolant bottle bracket
e
as shown below.
