HANDLEBAR COMPONENT LOCATIONS

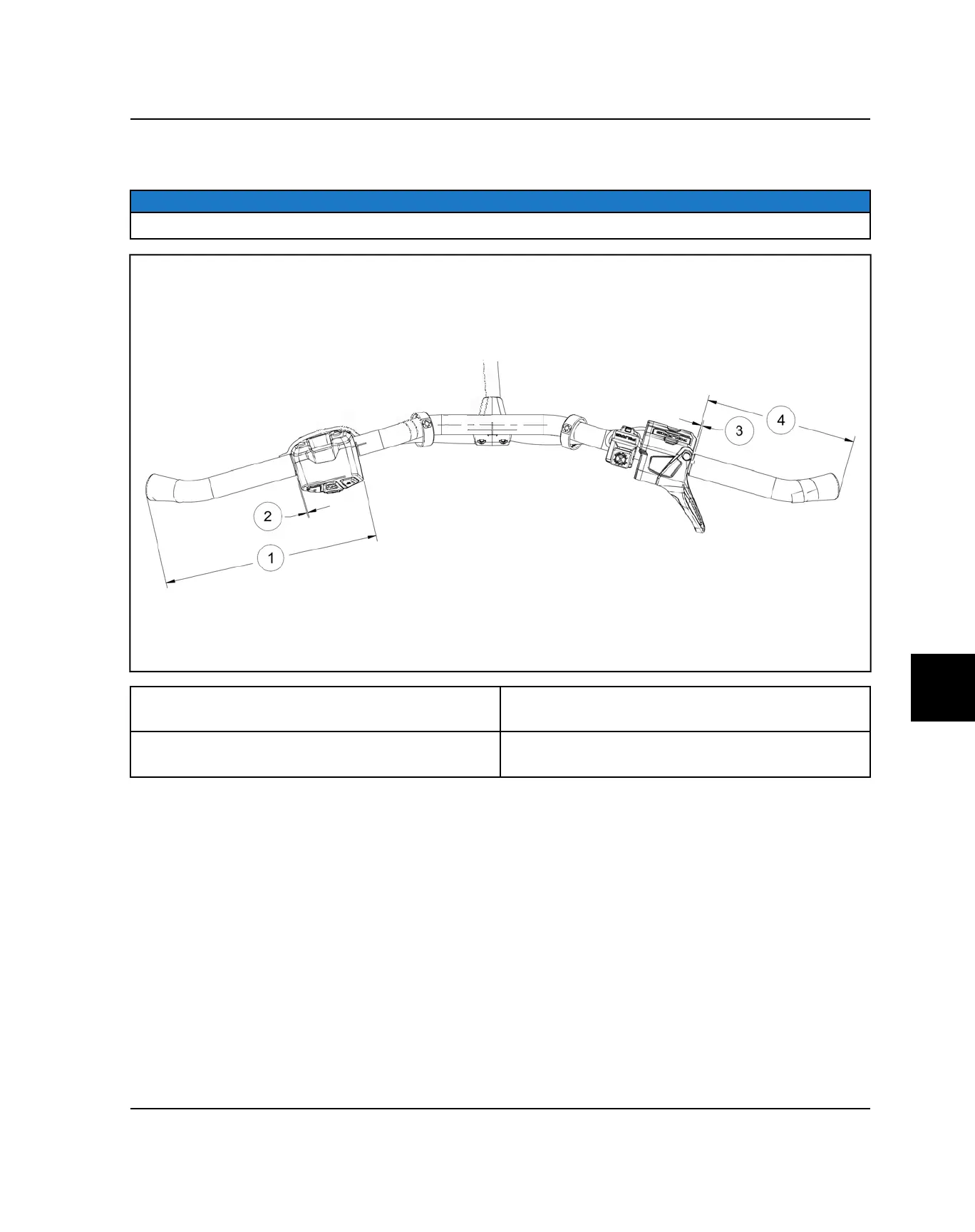

Refer to the following illustration and measurements to position handlebar components at factory-specified locations.
NOTICE
Do not attempt to move handlebar components without first loosening the affected component's screws.
q
9.25 in (235 mm)
e
0.078 in (2 mm)
To grip end
w
0.078 in (2 mm)
To grip end
r
6.30 in (160 mm)
