ELECTRIC START HARNESS ROUTING
NOTICE
Images for reference only.

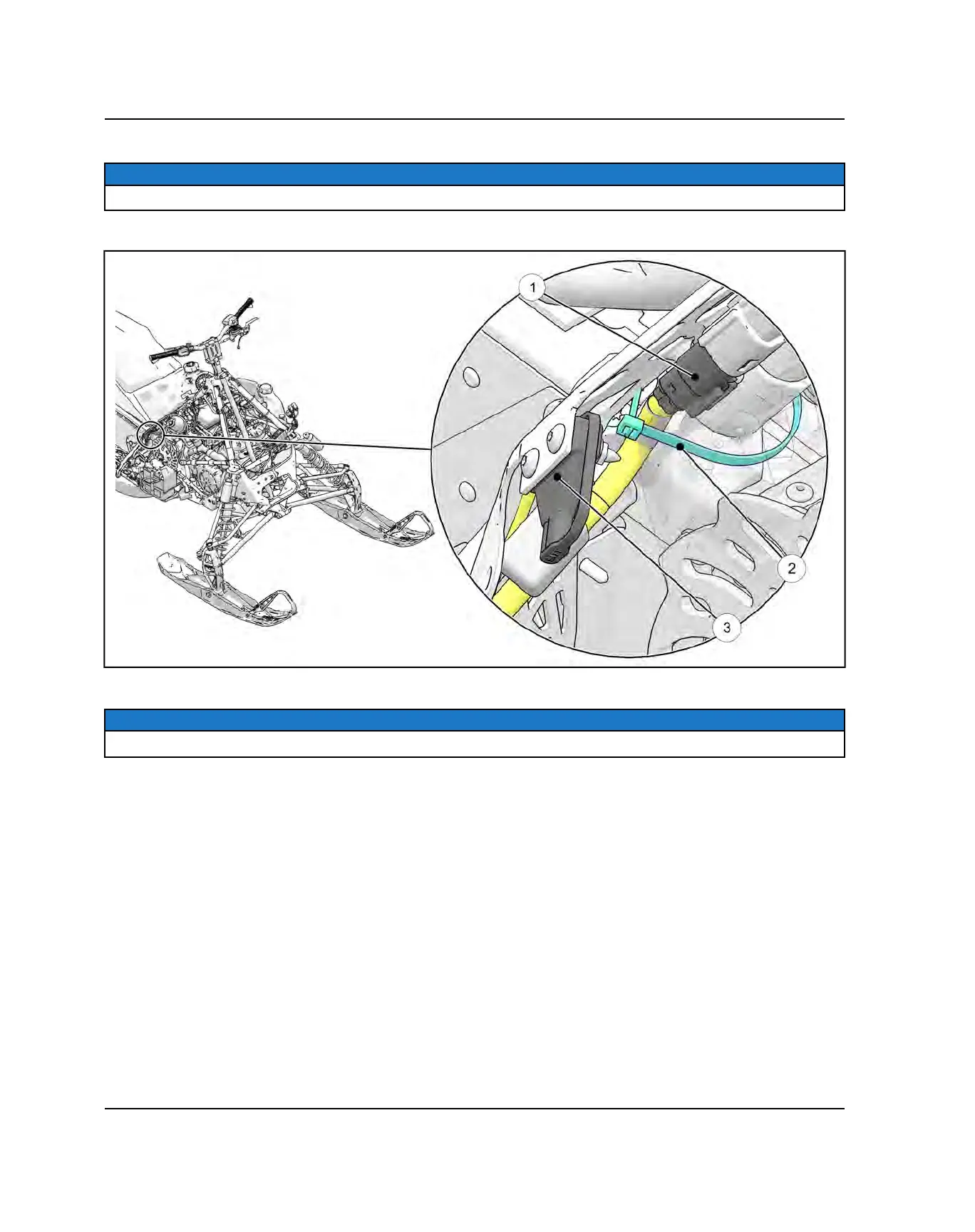

1. The electric start harness connector
q
should be connected to the chassis harness in location shown below.
2. Secure the electric start harness with a panduit
w
to the rear over structure tube.
NOTICE
The panduit head should point away from the fuel tank.
3. Secure the battery tender port
e
to the console support with two fasteners.
