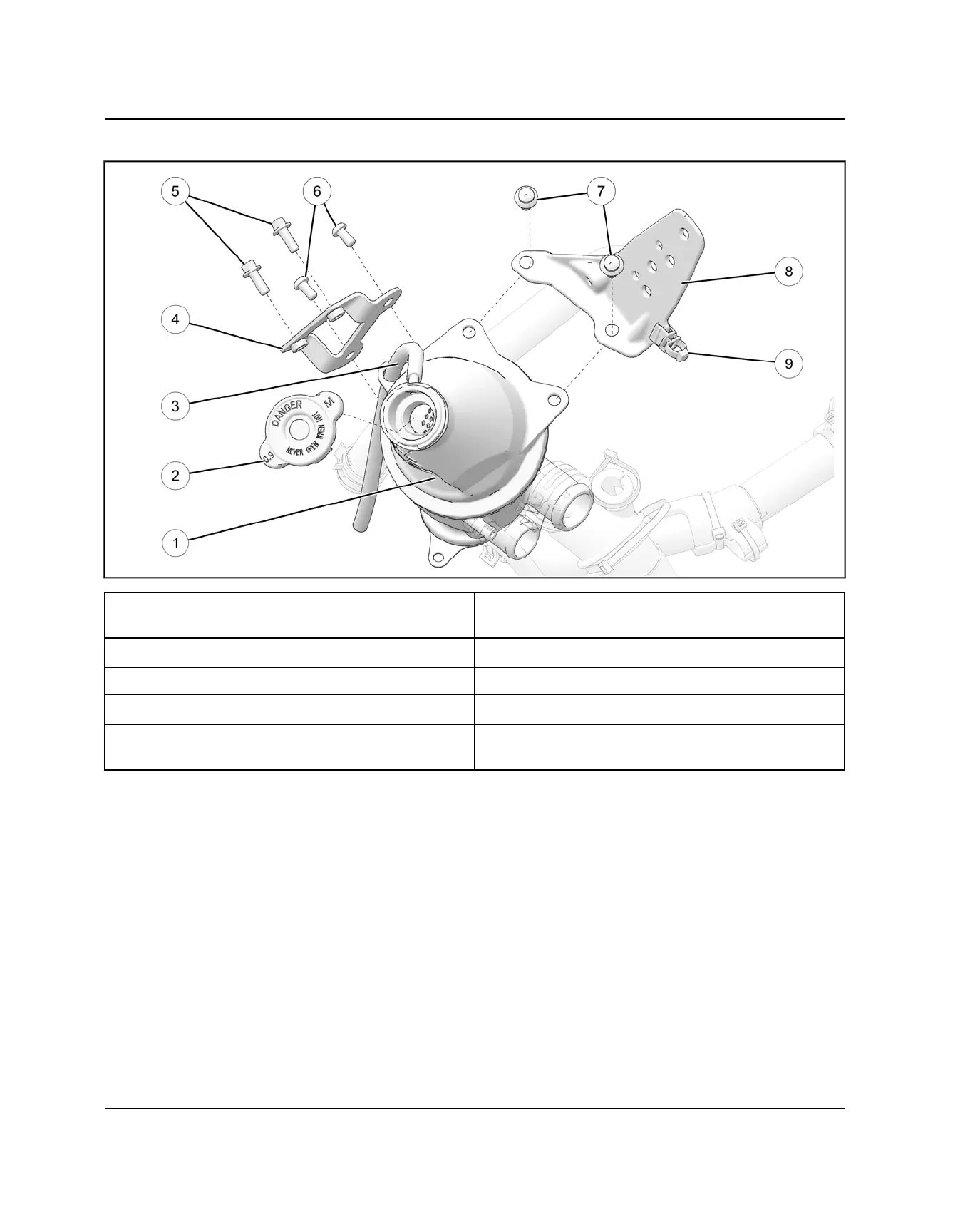

COOLANT BOTTLE ASSEMBLY VIEW
q
Coolant Bottle
y
Coolant Bottle Mounting Fasteners
7 ft-lbs (9 N·m)
w
Pressure Cap
u
Plastic Push Rivet
e
Coolant Bottle Vent Line
i
Connector Placement Bracket
r
Coolant Bottle Bracket
o
Edge Clip
t
Coolant Bottle Bracket Fasteners
7 ft-lbs (9 N·m)
