9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
8.31

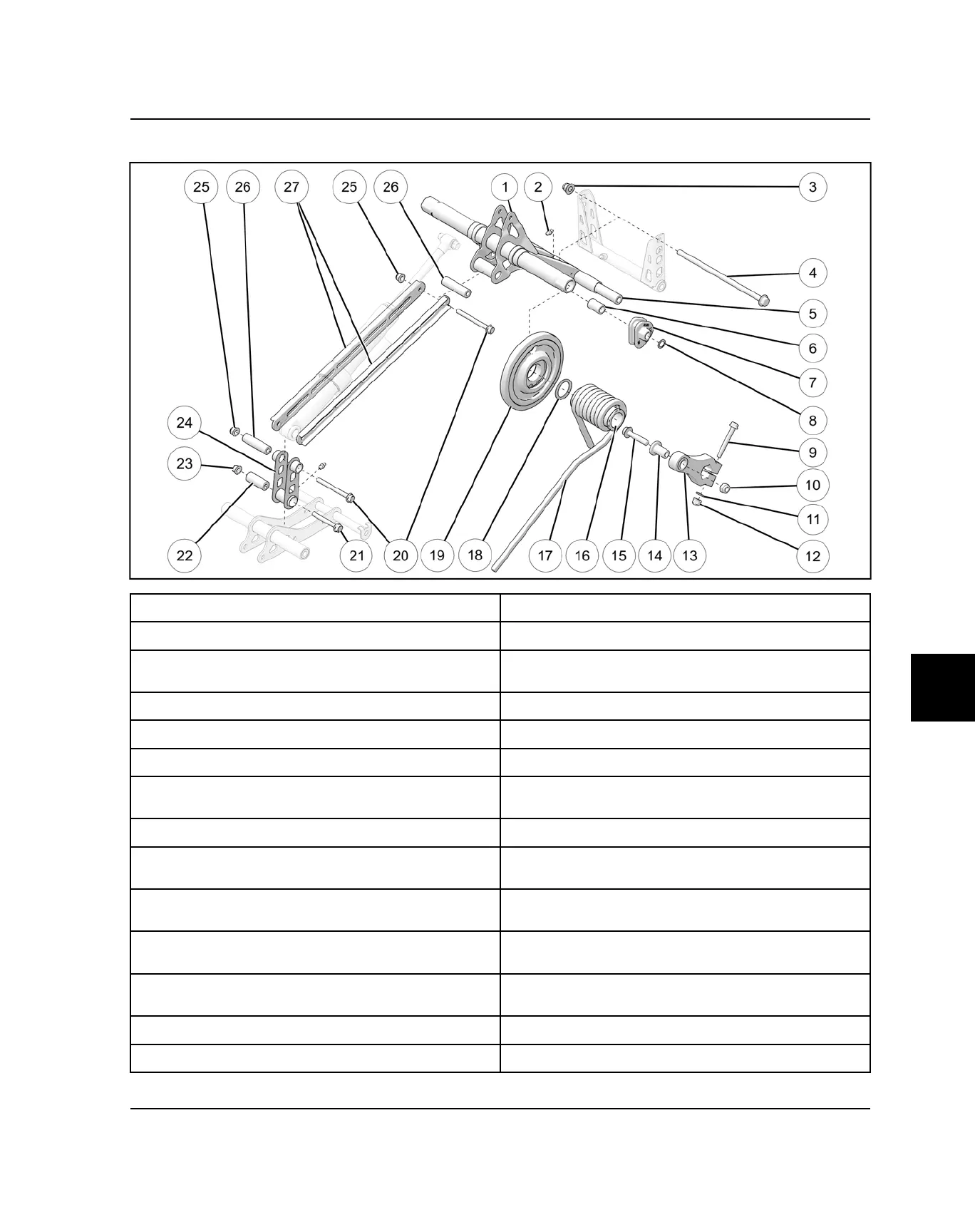

PRO-CC REAR TORQUE ARM ASSEMBLY VIEW
q
Rear Torque Arm
h
Rear Torque Arm to Tunnel Fastener
w
Lubrication Fitting
j
Torsion Spring Sleeve
e
Nut
33 ft-lbs (45 N·m)
k
Torsion Spring
r
Rear Torque Arm to Rear Pivot Arm Fastener
l
Washer
t
Rear Torque Arm Shaft
1(
Plain Carrier Wheel
y
Spacer
2)
RTS Mounting Fasteners
u
Roller Spring Adjuster
Adjust spring roller to medium position
2!
Shock Pivot Arm to H-Bracket Fastener
i
Push On Clip
2@
Shock Pivot Arm Bushing
o
Rear Mounting Arm Fasteners
2#
Nut
24 ft-lbs (33 N·m)
a
Nut
33 ft-lbs (45 N·m)
2$
Shock Pivot Arm
s
Washer
2%
Nut
17 ft-lbs (23 N·m)
d
Nut
24 ft-lbs (33 N·m)
2^
Pull Rod Bushing
f
Rear Mounting Arm
Shock Rod
g
Rear Torque Arm Mount Shaft
STEERING / SUSPENSIONS
