SPINDLE SERVICE
SPINDLE REMOVAL

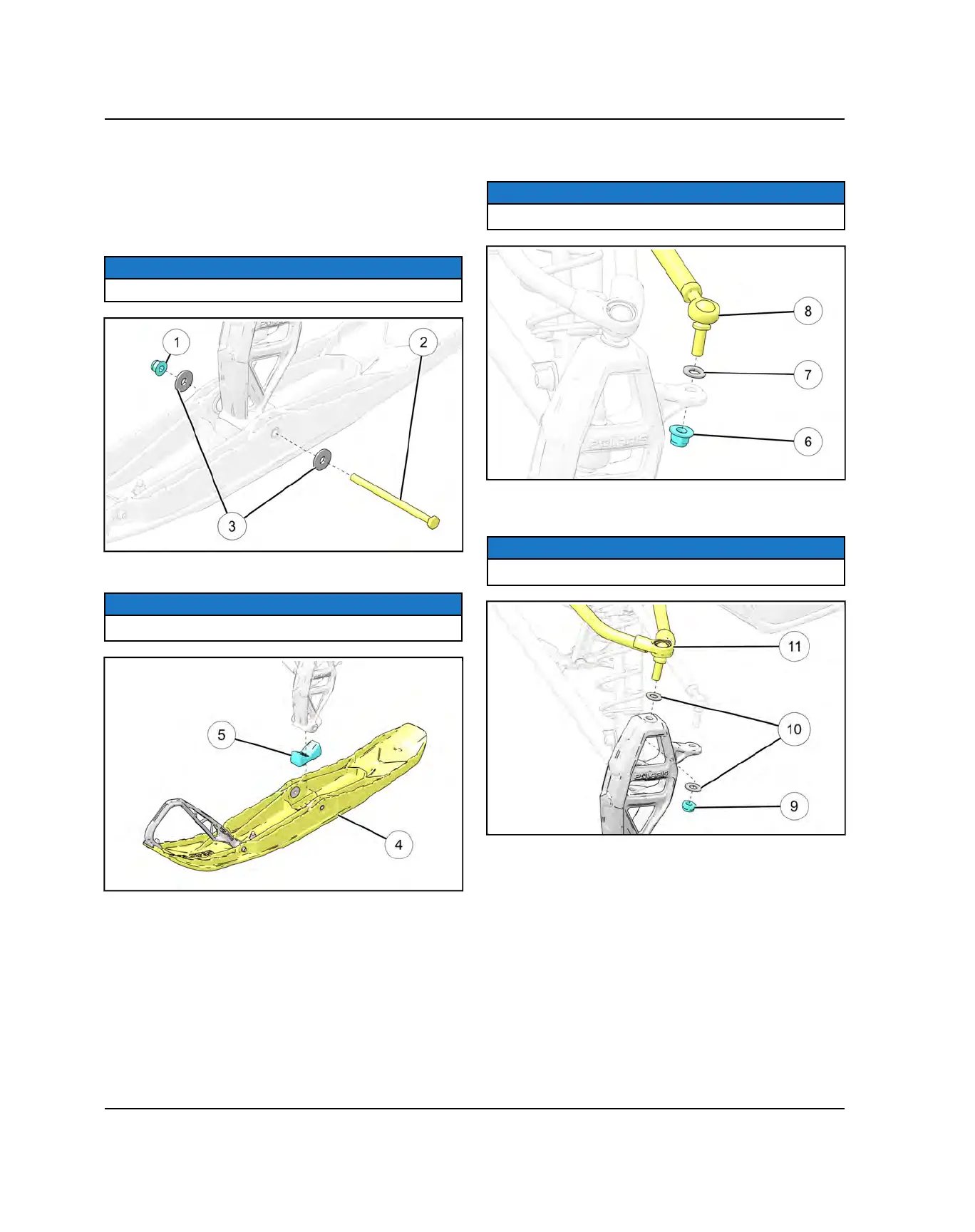

1. Raise the front of the snowmobile off the ground with
a dedicated sled lift or floor jack.
2. Remove nut
q
, fastener
w
, and washers
e
from ski.
NOTICE
Note the orientation of the fastener and washers.
3. Remove the ski
r
and ski bumper
t
.
NOTICE
Note the orientation of the ski bumper.
4. Remove the nut,
y
, washer
u
, and steering tie rod
end
i
from the spindle. Discard the flange nut.
NOTICE
Note the position of the washer under the rod end.
5. Remove the nut
o
, washers
a
, and upper control
arm spherical bearing
s
. Discard the flange nut.
NOTICE
Note the position of the washers.
