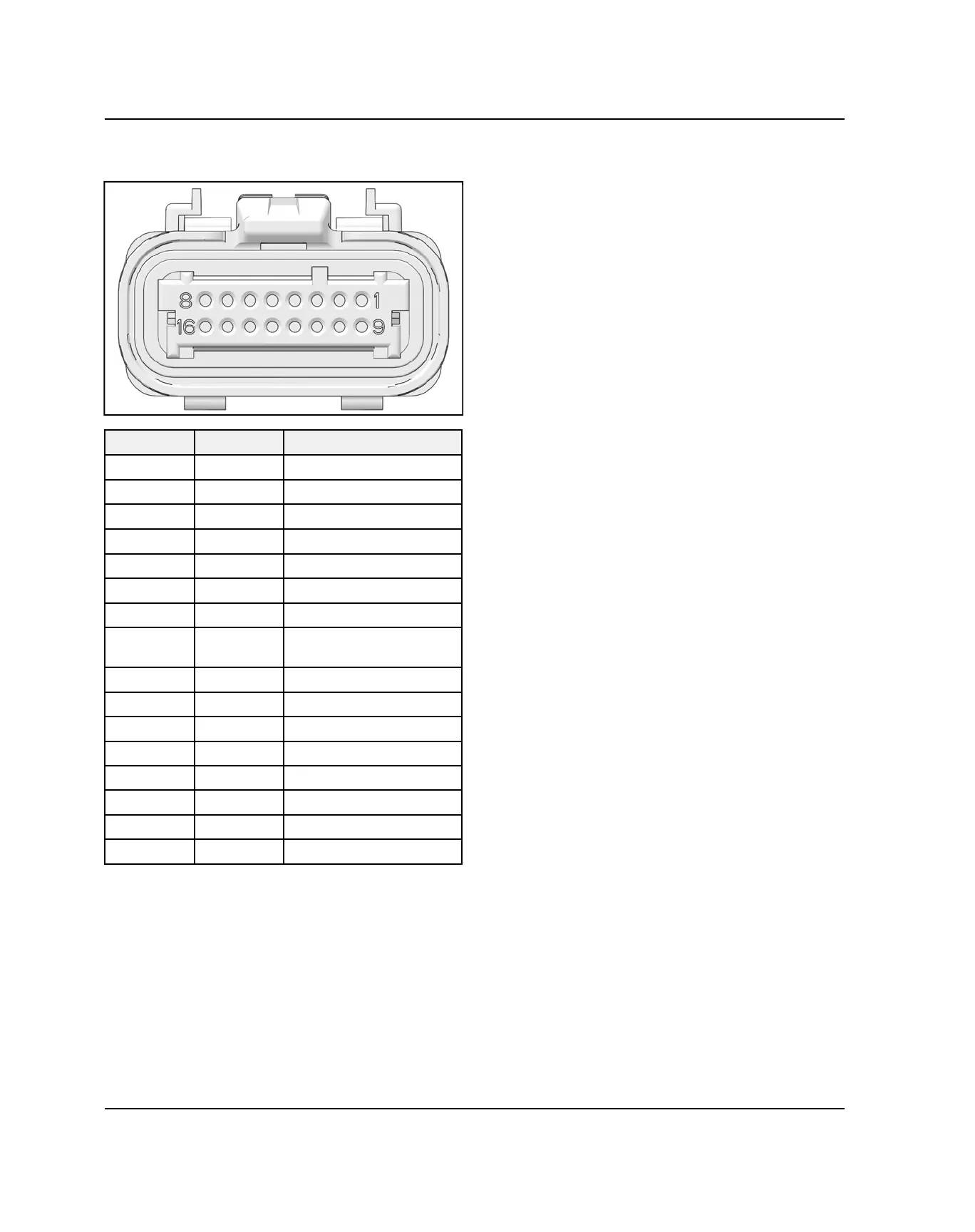

STANDARD INSTRUMENT CLUSTER
PINOUT
PIN COLOR FUNCTION
1 YE CAN2 HI
2 DG CAN2 LOW
3 RD/BK CRITICAL PWR
4 RD/BK CRITICAL PWR
5 BN CHASSIS GND
6
— —
7
— —
8 YE/RD
HIGH BEAM HEADLIGHT
PWR
9
— —
10
— —
11 VT/WH FUEL LEVEL
12
— —
13
— —
14
— —
15
— —
16 WH/RD ACCENT LED CONTROL
BATTERY / ELECTRICAL
