BODY ASSEMBLY VIEWS

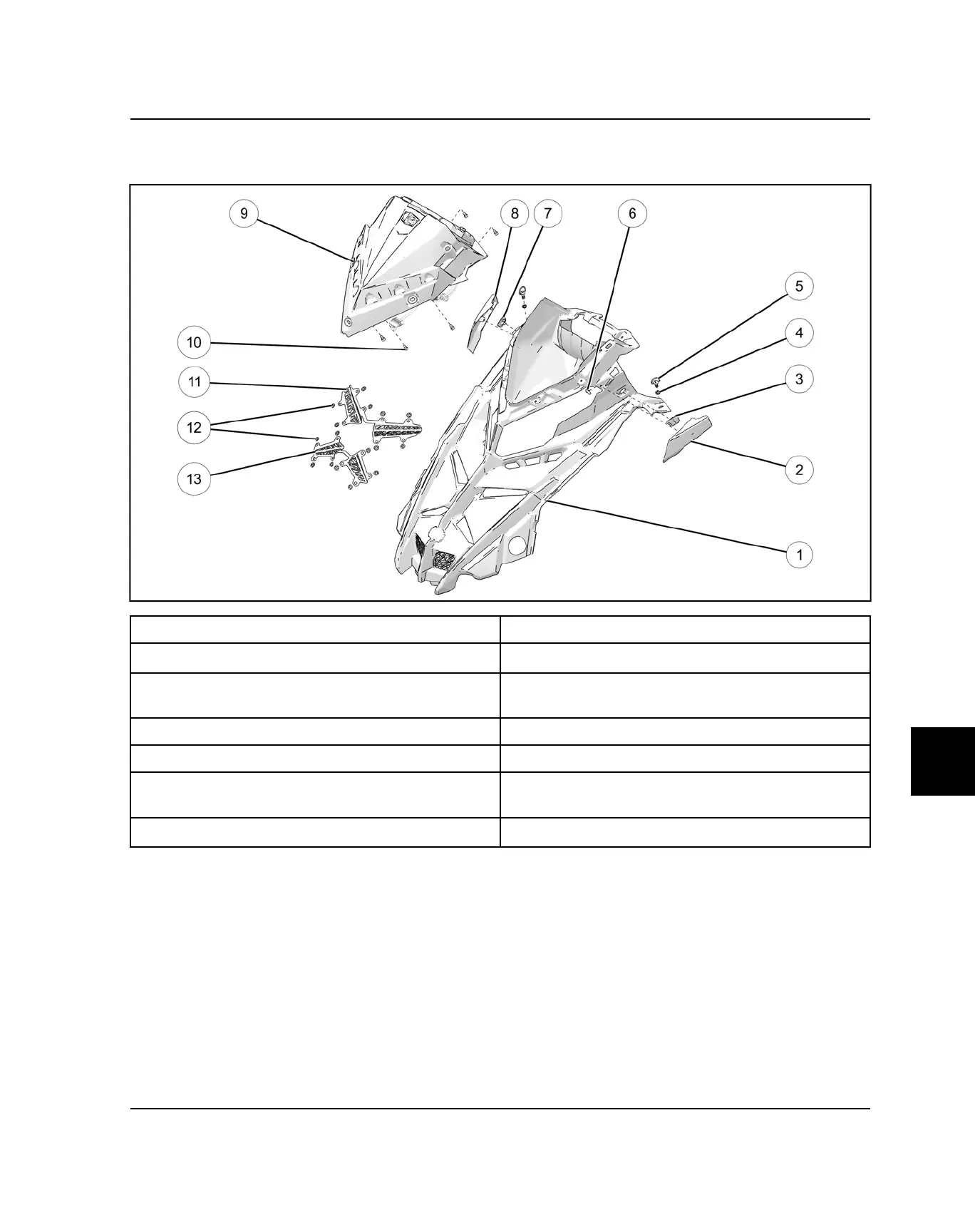

HOOD ASSEMBLY VIEW
q
Hood
i
RH Hood Trim
w
LH Hood Trim o
Hood Cap Assembly
e
LH Hood Plug
a
Hood Cap Fasteners
18 in-lbs (2 N·m)
r
1/4 Turn Retainer
s
Middle Hood Screen
t
1/4 Turn Stud
d
Retainer
y
Hood Trim Fasteners
11 in-lbs (1.25 N·m)
f
Lower Hood Screen
u
RH Hood Plug
