5.37

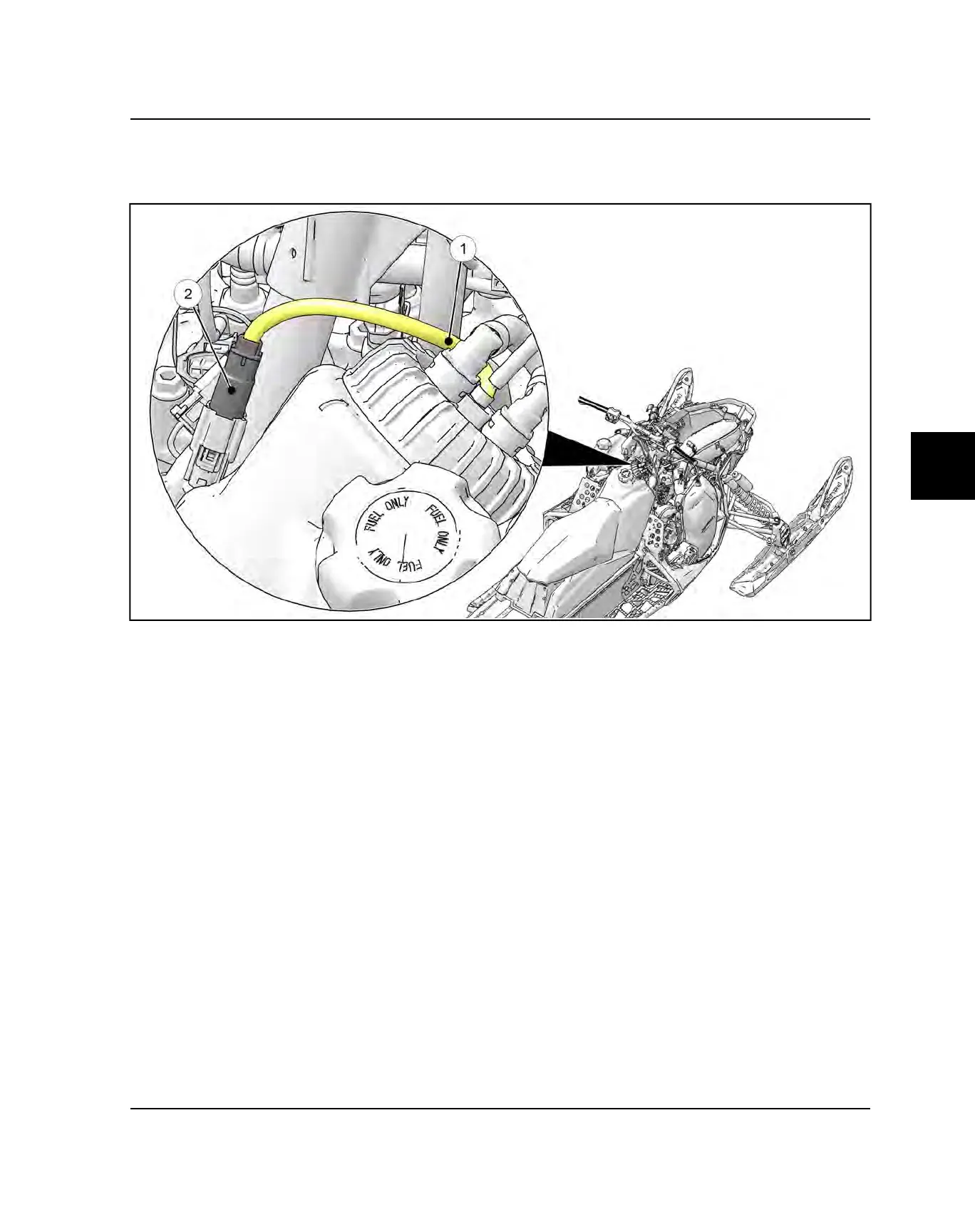

FUEL PUMP WIRE HARNESS ROUTING
1. Route the fuel pump wire harness
q
under the return fuel line and along the left side of the fuel toward the fuel
pump connector of the main harness.
2. Connect the fuel pump wire harness connector
w
to the fuel pump connector of the main harness.
FUEL SYSTEM
