3.62
9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.

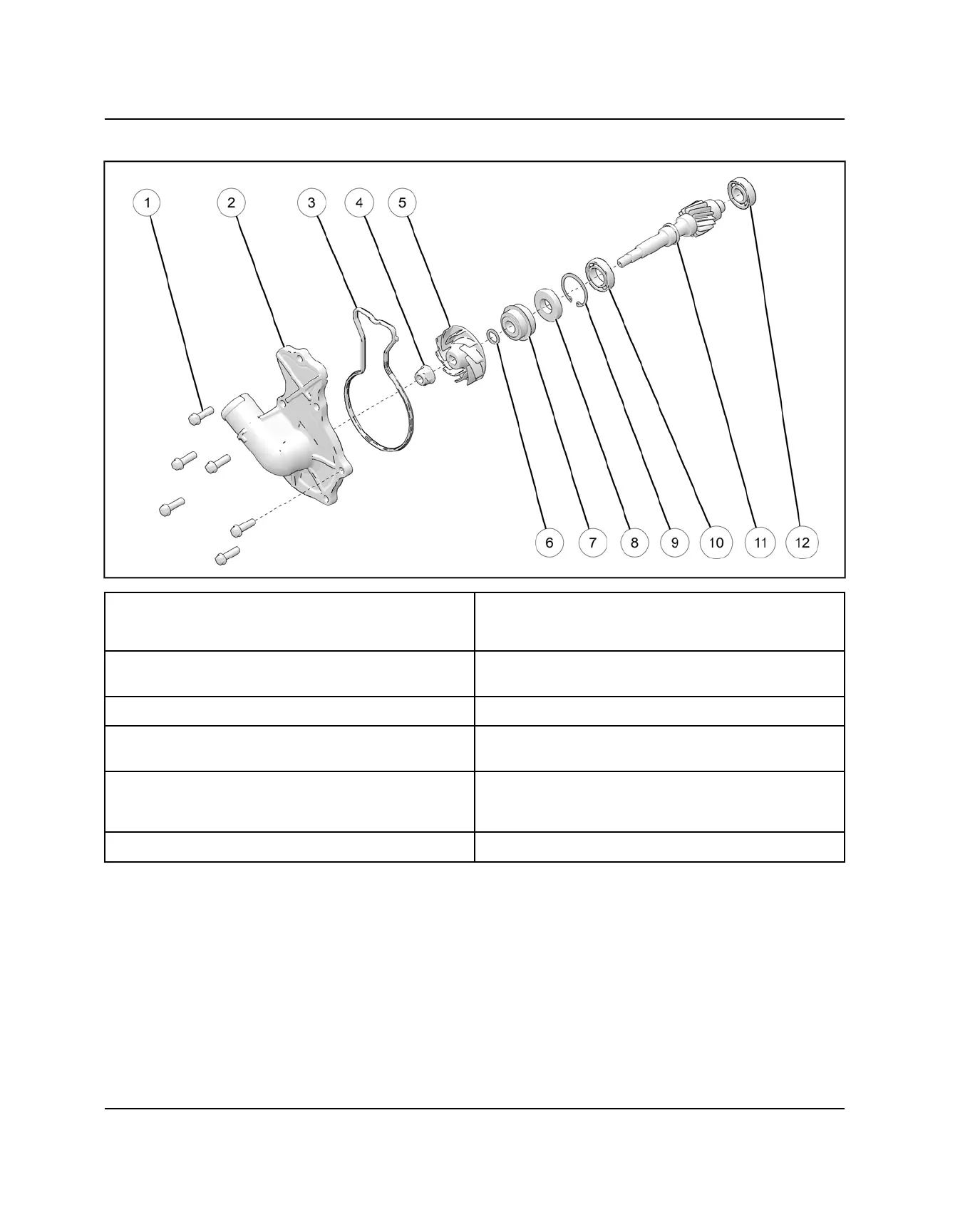

WATER PUMP ASSEMBLY VIEW
q
Water Pump Cover Fasteners (M6 x 1.0 x 20)
9 ft-lbs (12 N·m)
u
Water Pump Seal
Apply water to cross-shaft prior to seal assembly at seal/
shaft interface
w
Water Pump Cover
i
Oil Seal
Install with spring towards intake side of engine
e
Water Pump Cover Seal
o
Retaining Ring
r
Water Pump Driven Shaft Nut (M8 x 1.25)
9 ft-lbs (12 N·m)
a
Ball Bearing
t
Water Pump Impeller
s
Water Pump Driven Shaft
Ensure cross shaft turns and indexes with crankshaft
during assembly
y
D-Washer d
Ball Bearing
ENGINE / COOLING / EXHAUST
