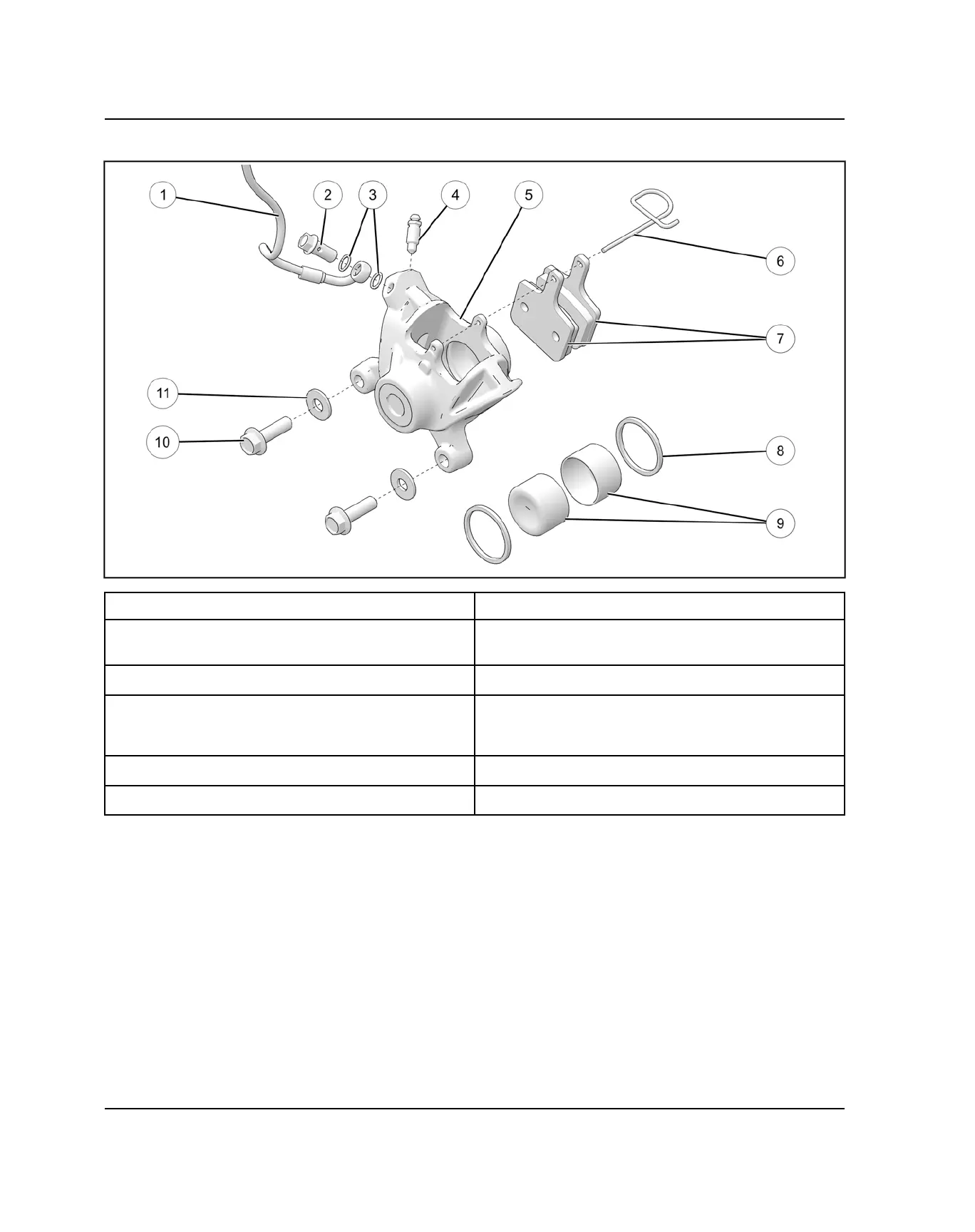

BRAKE SYSTEM ASSEMBLY VIEW
q
Brake Line
u
Brake Pads
w
Banjo Bolt
240-260 in-lbs (27-30 N·m)
i
Piston Seals
e
Sealing Washers
o
Pistons
r
Bleeder Fitting
100-135 in-lbs (11-15 N·m)
a
Caliper Mounting Fasteners
40 ft-lbs (54 N·m)
Discard and replace with new fasteners when removed
t
Caliper Assembly
s
Washers
y
Brake Pad Retaining Pin
