STEERING / FRONT SUSPENSION ASSEMBLY VIEWS

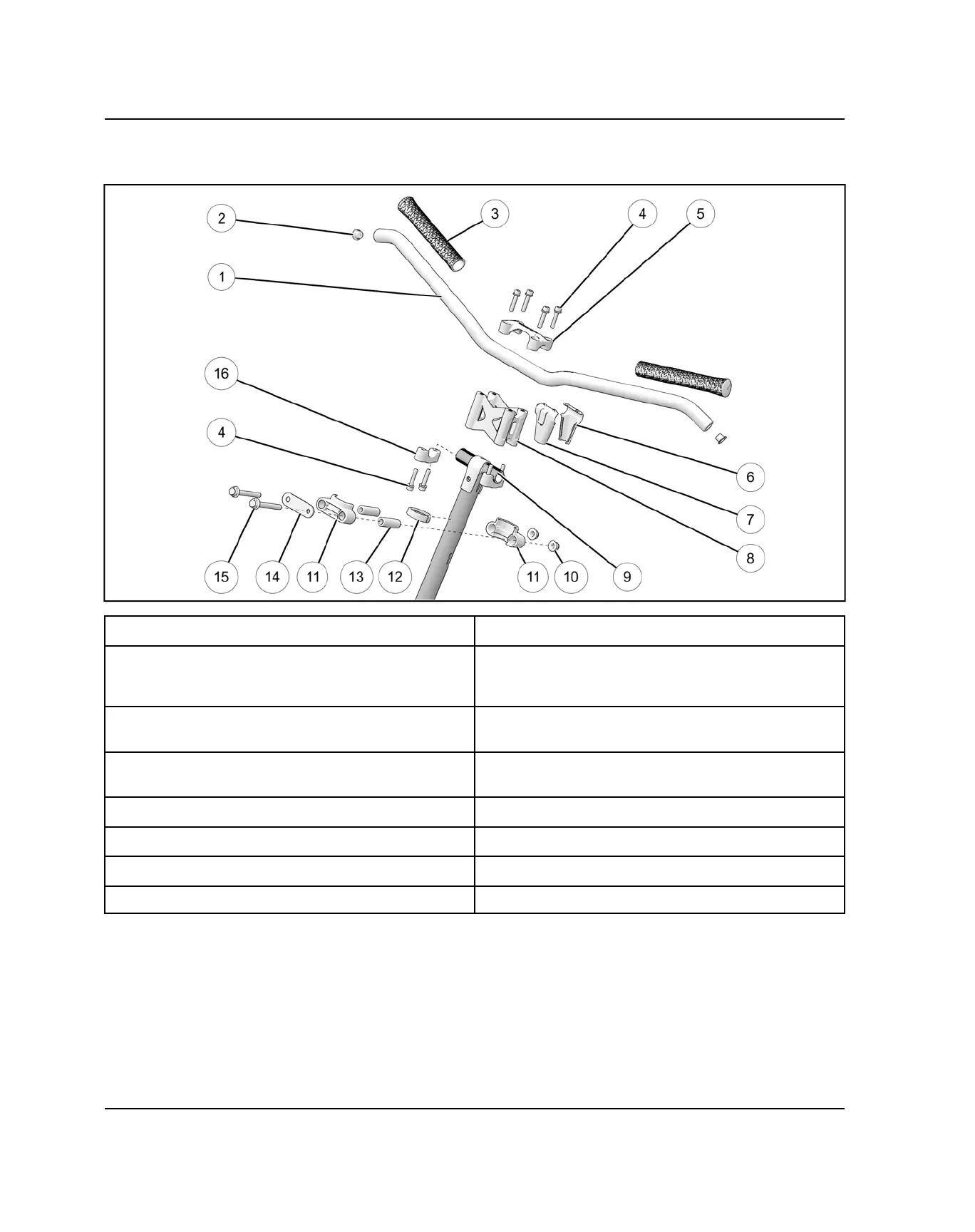

UPPER STEERING / HANDLEBAR ASSEMBLY VIEW
q
Handlebar
o
Steering Post
w
Plugs
a
Flange Nuts
20 ft-lbs (27 N·m)
Replace with new when removed
e
Hand Grips
s
Steering Post Bushings
Apply Premium Grease
r
Handlebar Riser / Clamp Fasteners
11 ft-lbs (15 N·m)
d
Steering Bushing Seal
Apply Premium Grease
t
Upper Handlebar Clamp
f
Spacers
y
Front Handlebar Wire Clamp
g
Steering Strap
u
Back Handlebar Wire Clamp
h
Upper Steering Post Mount Fasteners
i
Riser
