9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
9.23

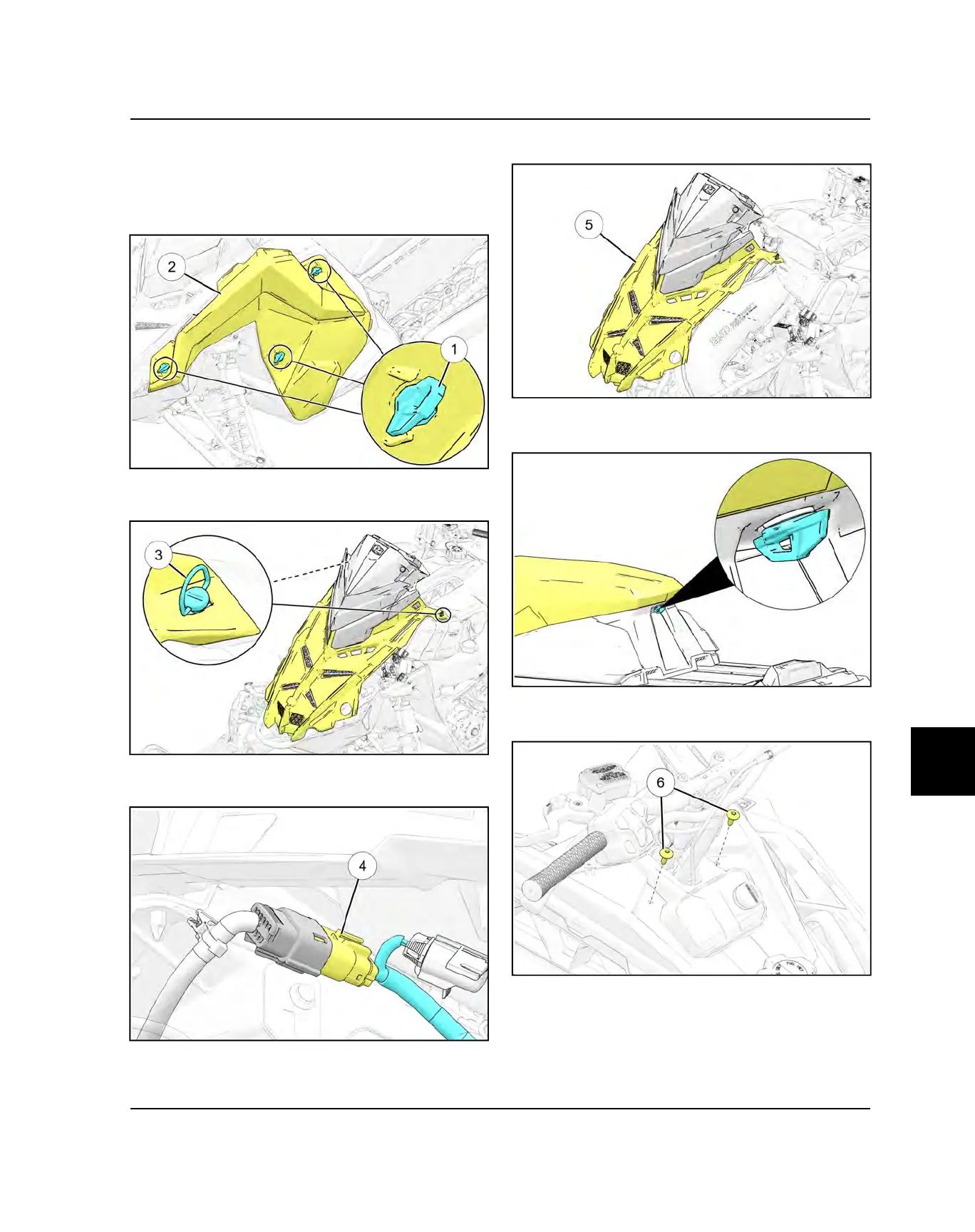

CONSOLE REMOVAL
1. Rotate the three 1/4 turn latches
q
and remove the
side panel
w
by pulling the panel outward to release
the tabs at the bottom. Repeat this step to remove the
side panel from opposite side of the snowmobile.
2. Rotate the 1/4 turn fasteners
e
at the rear corners of
the hood.
3. Disconnect the hood harness connector
r
from the
main harness.
4. Remove the hood assembly
t
.
5. Turn the 1/4 turn latch at the rear of the seat and lift
up to remove the seat.
6. Remove the two fasteners
y
that secure the console
and lower intake plenum to the over-structure.
CHASSIS
