REAR SUSPENSION - IGX 146 MODELS
REAR SUSPENSION REMOVAL - IGX 146
NOTICE
Track not shown for clarity.

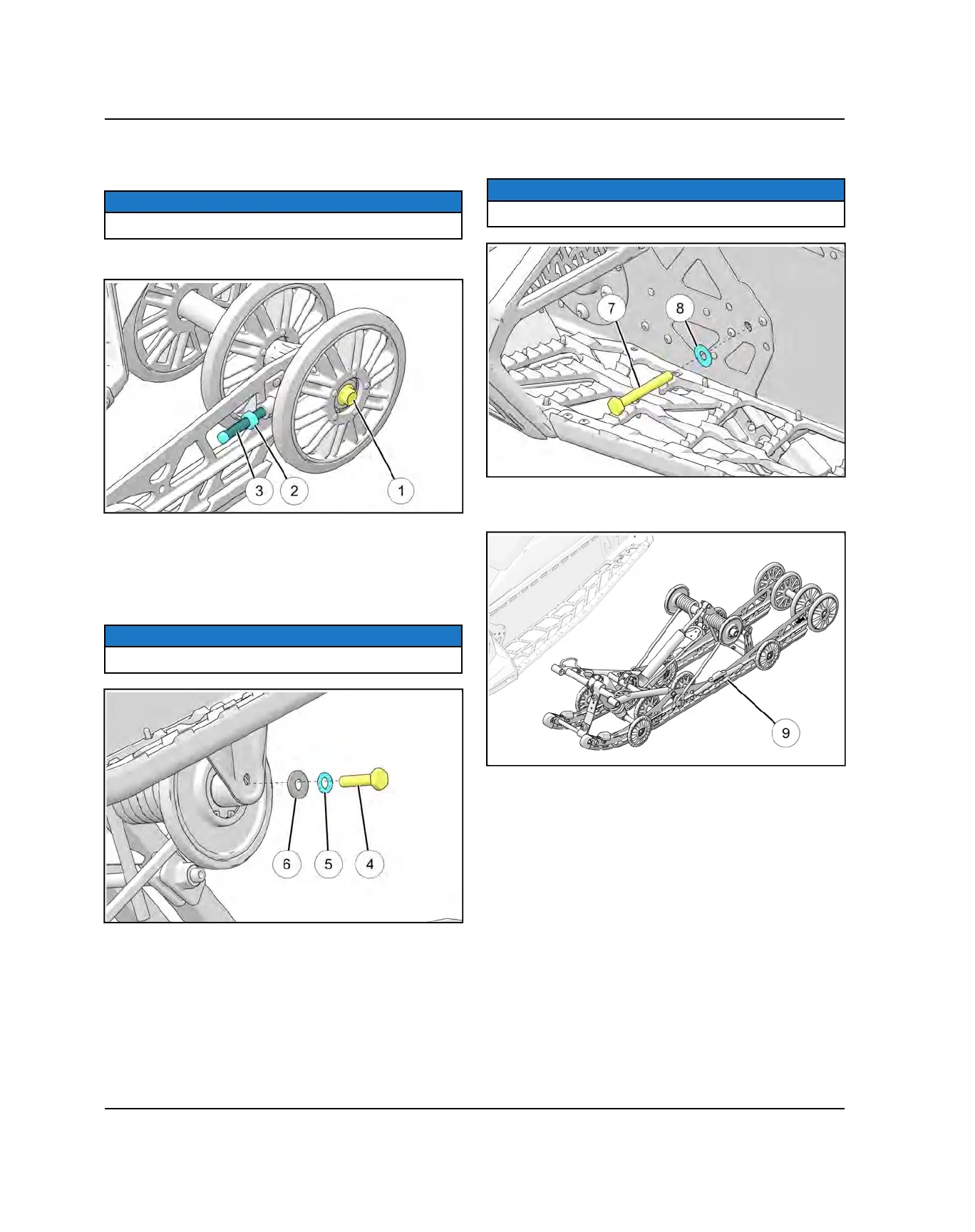

1. Loosen the rear idler shaft bolts
q
.
2. Loosen the jam nuts
w
on each rear idler adjuster
e
.
Push the rear idler shaft / idler wheel assembly
forward.
3. Remove the two upper carrier fasteners
r
, spring
washers
t
, and washers
y
.
NOTICE
Right side shown.
4. Remove the front torque arm-to-tunnel mount bolts
u
and washers
i
.
NOTICE
Right side shown.
5. Carefully pull the rear suspension
o
from the track
and remove rear suspension from the tunnel.
