FUEL INJECTOR HARNESS ROUTING

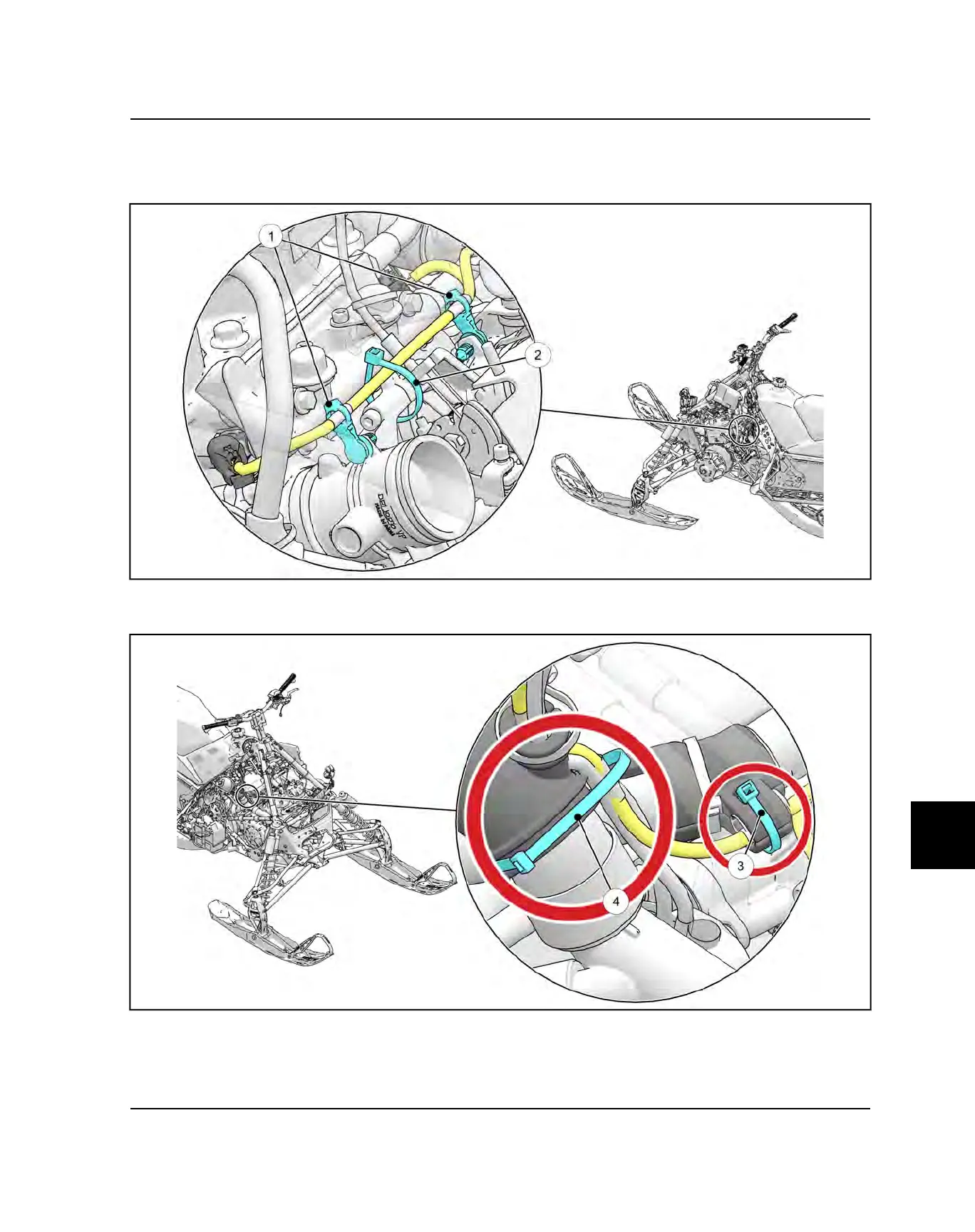

1. The fuel injector harness is secured to the throttle body using two 90° Christmas tree routing clips
q
and panduit
strap
w
.
2. Route the fuel injector harness along the coolant hose toward the right side of the vehicle. Secure fuel injector
harness in stator wire support with a panduit strap
e
.
3. Route the fuel injector upward toward the coolant bottle and secure on the outside of the hose/electrical support
with a panduit
r
.
