Polaris 850 MATRYX INDY XC 129 2021

3.58
9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.

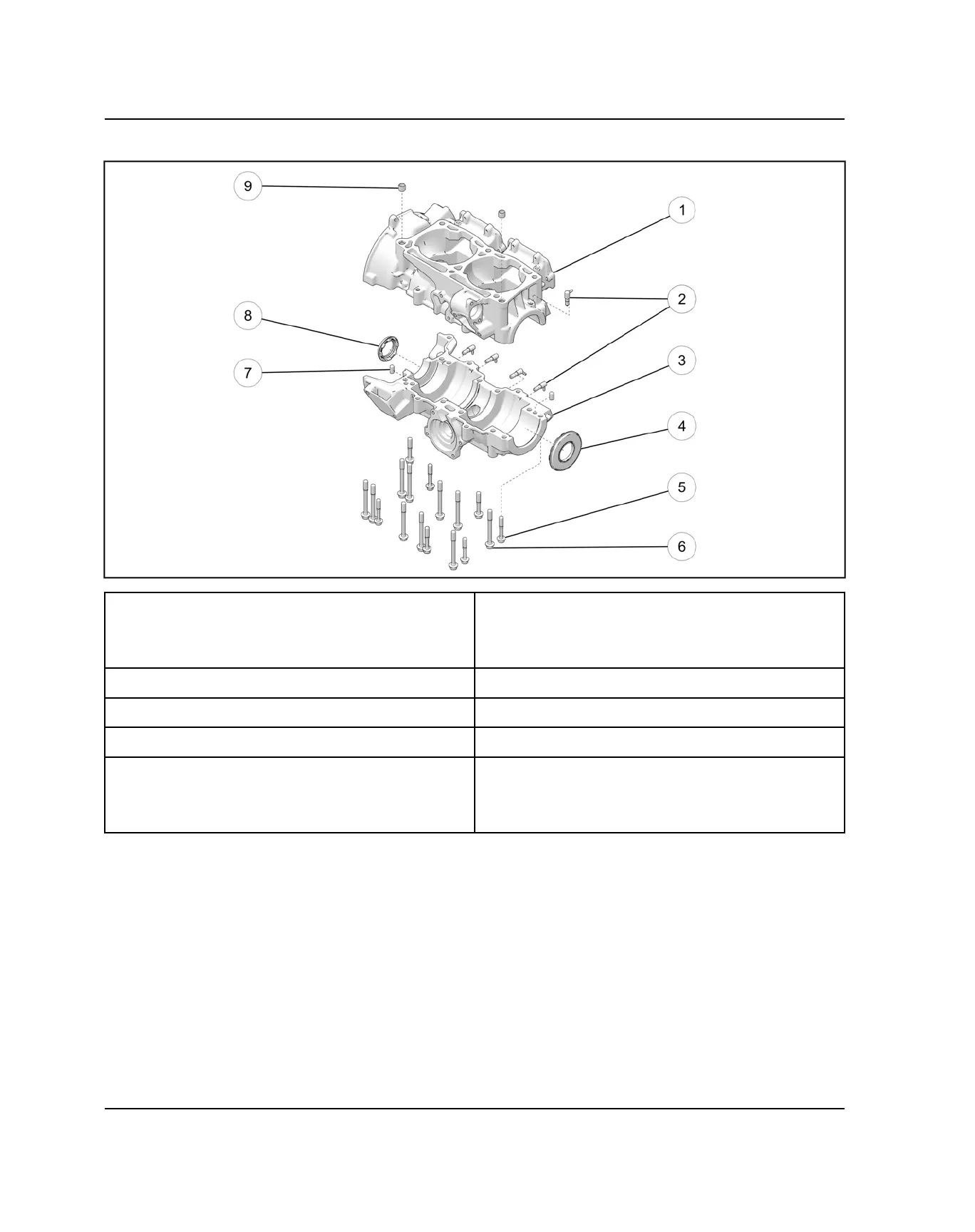

CRANKCASE ASSEMBLY VIEW
q
Upper Crankcase
y
Crankcase Fasteners (M8 x 1.25 x 80)
24 ft-lbs (32 N·m)
Apply VES oil under fastener head and to threads prior
to installation.
w
Check Valve / Oil Fitting
u
Dowel Pin
e
Lower Crankcase i
Flanged Seal
r
Flanged Seal
o
Hollow Dowel
t
Crankcase Fasteners (M8 x 1.25 x 50)
24 ft-lbs (32 N·m)
Apply VES oil under fastener head and to threads prior
to installation.
ENGINE / COOLING / EXHAUST
