ELECTRIC START / BATTERY BRACKET

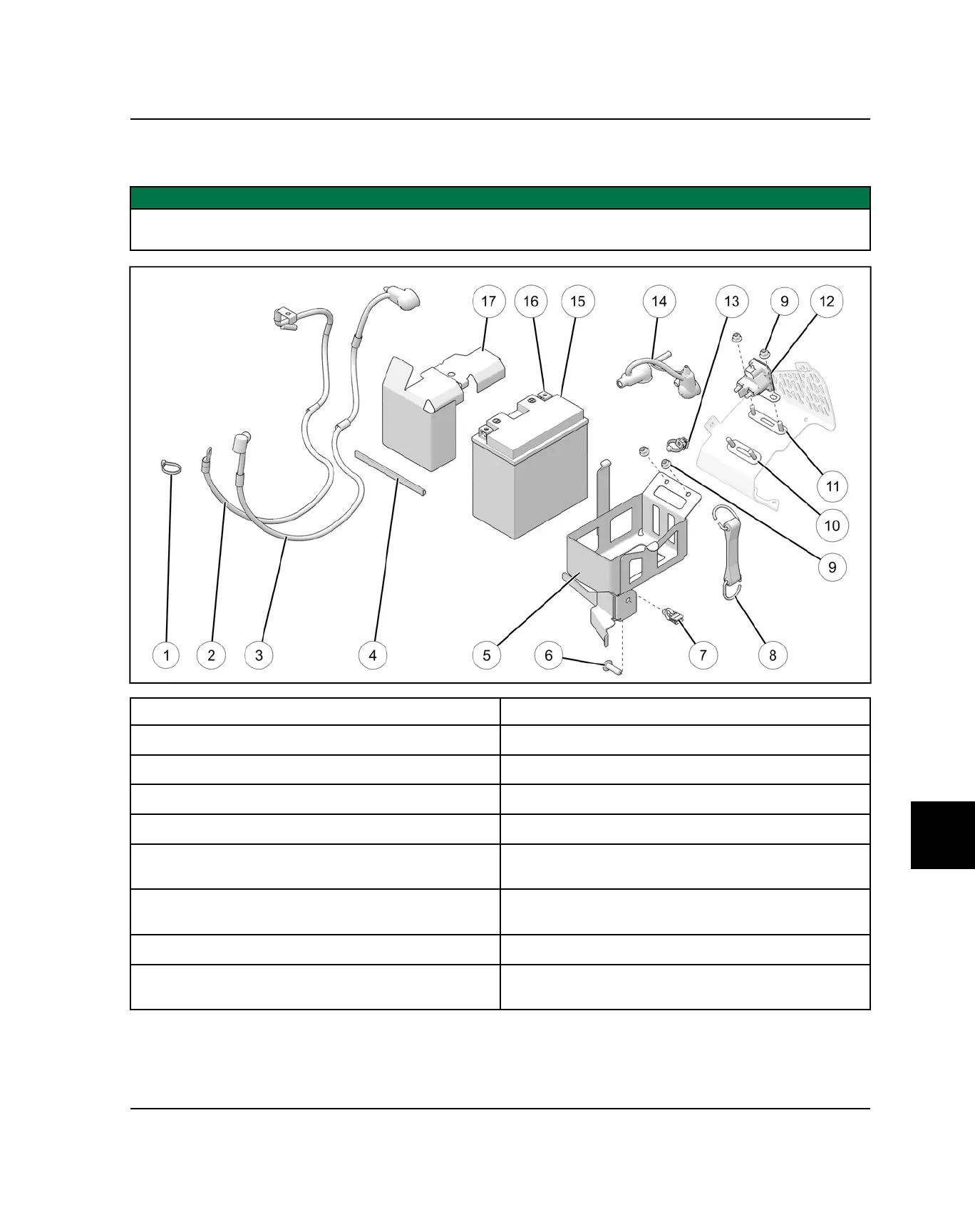

BATTERY BRACKET ASSEMBLY VIEW
IMPORTANT
Disconnect battery before servicing starter motor components. Always remove BLACK (-) battery cable first, and then
RED (+) cable. Reverse order during battery installation.
q
Cable Tie
a
Stud Plate
w
Black Battery Ground Cable (-)
s
Stud Plate
e
Red Battery Cable (+)
d
Starter Solenoid
r
Seal-Bulb
f
Routing Clip
t
Battery Bracket
g
Red Battery / Solenoid Cable
y
Battery Bracket Fastener
22 ft-lbs (30 N·m)
h
Battery
u
Routing Clip
j
Terminal Hardware
36 in-lbs (4 N·m)
i
D-ring Rubber Strap
k
Battery Heat Shield
o
Nut
7 ft-lbs (10 N·m)
