FUEL TANK SERVICE

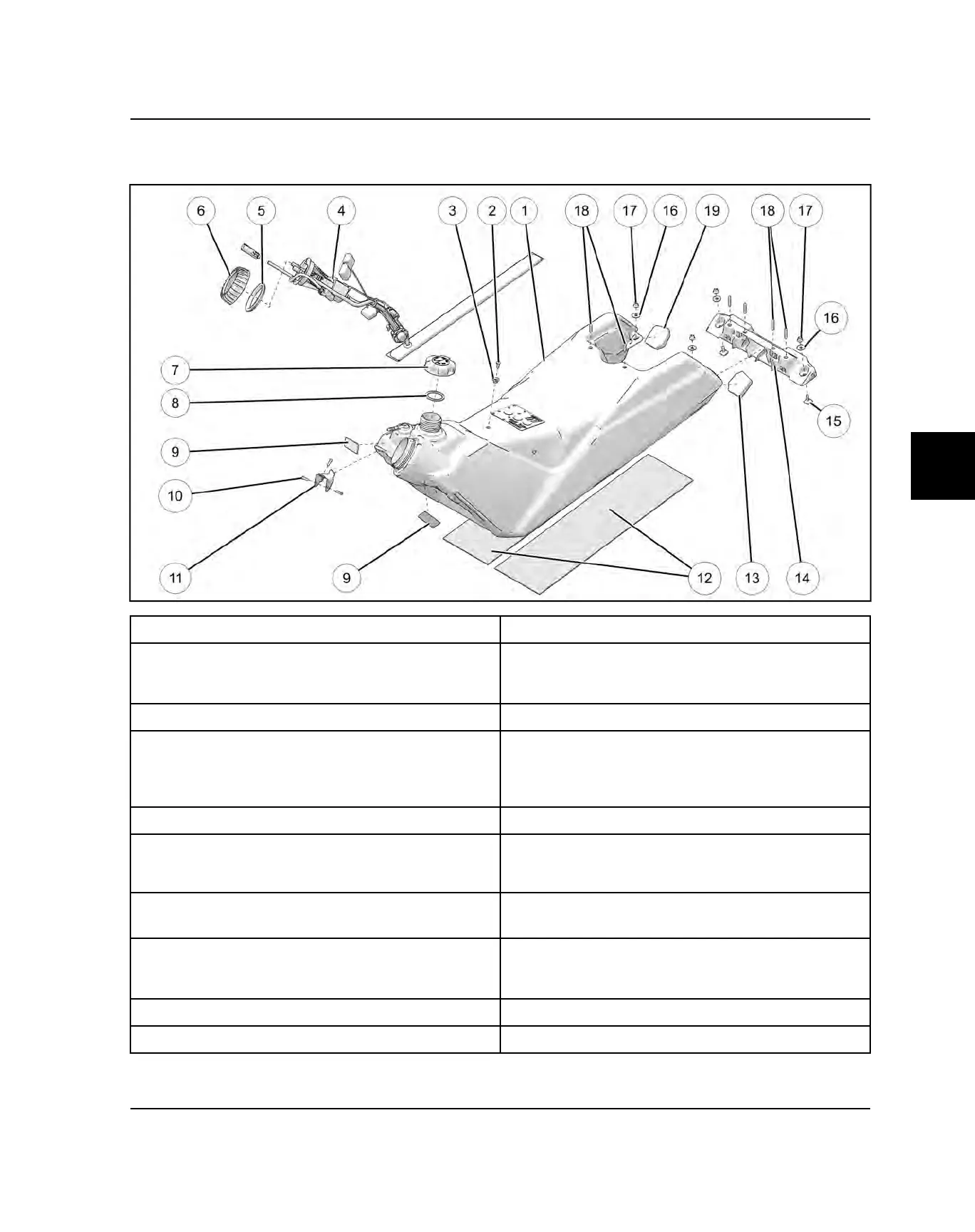

FUEL TANK ASSEMBLY VIEW
q
Fuel Tank
s
Fuel Tank Bracket
w
Front Seat Mount Fastener
36 in-lbs (4 N·m)
Do not over-torque
d
Fuel Tank / Tunnel Foam Pads
e
Front Seat Mount
f
LH Tank Mount Foam
r
Fuel Pump
Position the alignment arrow on the tank assembly
between the alignment line(s) and the raised rib on the
pump/flange assembly
g
Fuel Tank Support
t
PFA Gasket
h
T-slot Fastener
y
PFA Nut
28 ft-lbs (38 N·m)
PFA nut must not contact the PFA neck surface
j
Washer
u
Fuel Tank Cap
k
Fuel Tank / Support Mounting Nuts
9 ft-lbs (12 N·m)
i
O-ring
l
Studs
18 in-lbs (2 N·m)
Apply loctite to stud prior to assembly
o
Rubber Pad
1(
RH Tank Mount Foam
a
Rivet
