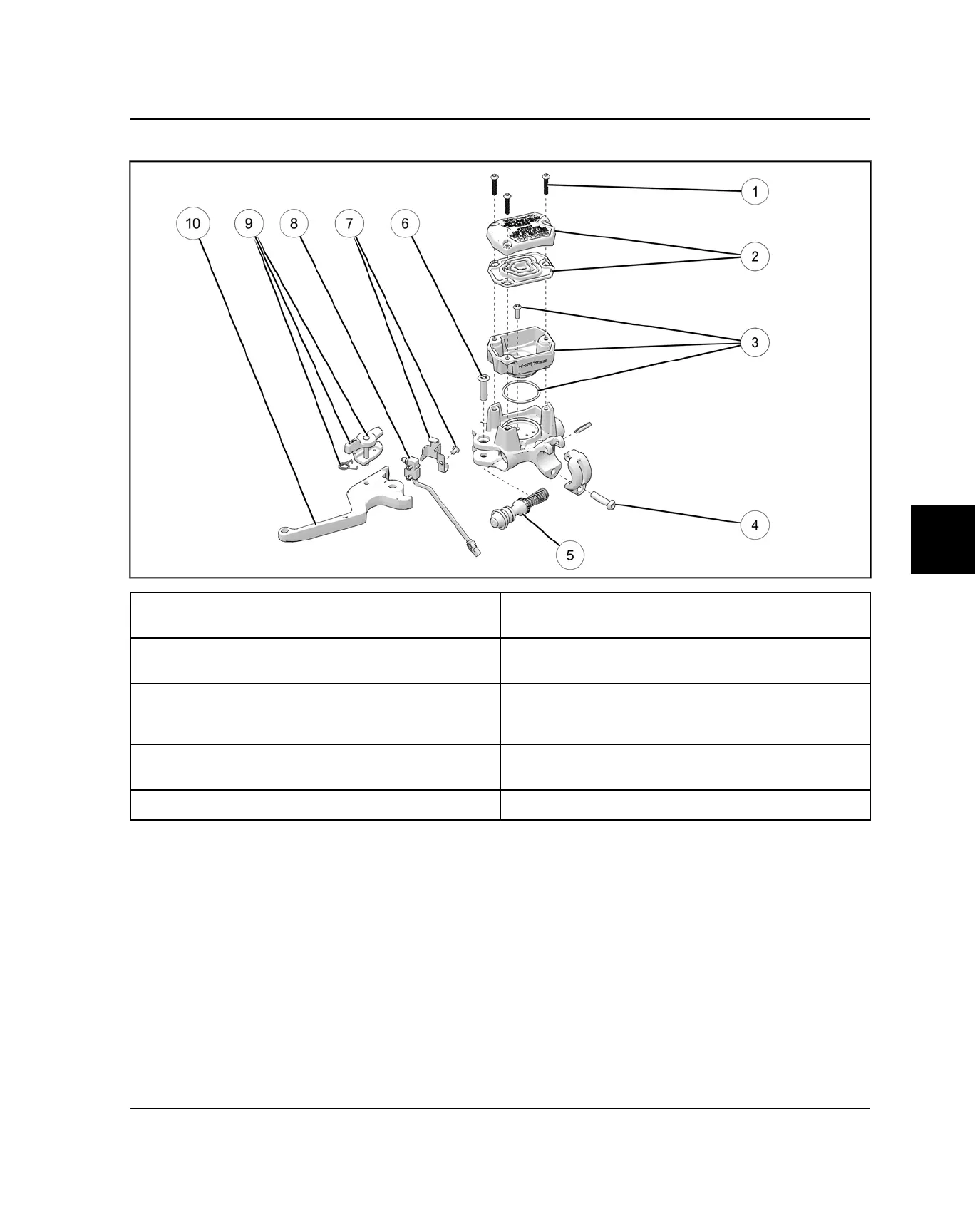

MASTER CYLINDER ASSEMBLY VIEW
q
Reservoir Cover Fasteners
6-8 in-lbs (0.68-0.90 N·m)
y
Pivot Pin
w
Reservoir Cover / Gasket
u
Brake Light Switch Guard / Fastener
Until Fully Seated
e
Reservoir Assembly
Includes reservoir, fastener, and o-ring
Inner Reservoir Fastener: 6-8 in-lbs (0.68-0.90 N·m)
i
Brake Light Switch
r
Master Cylinder Clamp Fastener
60-80 in-lbs (6.8-9 N·m)
o
Park Lever Assembly
t
Piston Assembly
a
Brake Lever
